UESD4CUSB30
Preliminary
TVS
UNISONICTECHNOLOGIESCO.,LTD
2 of 4
www.unisonic.com.tw
QW-R223-027.a

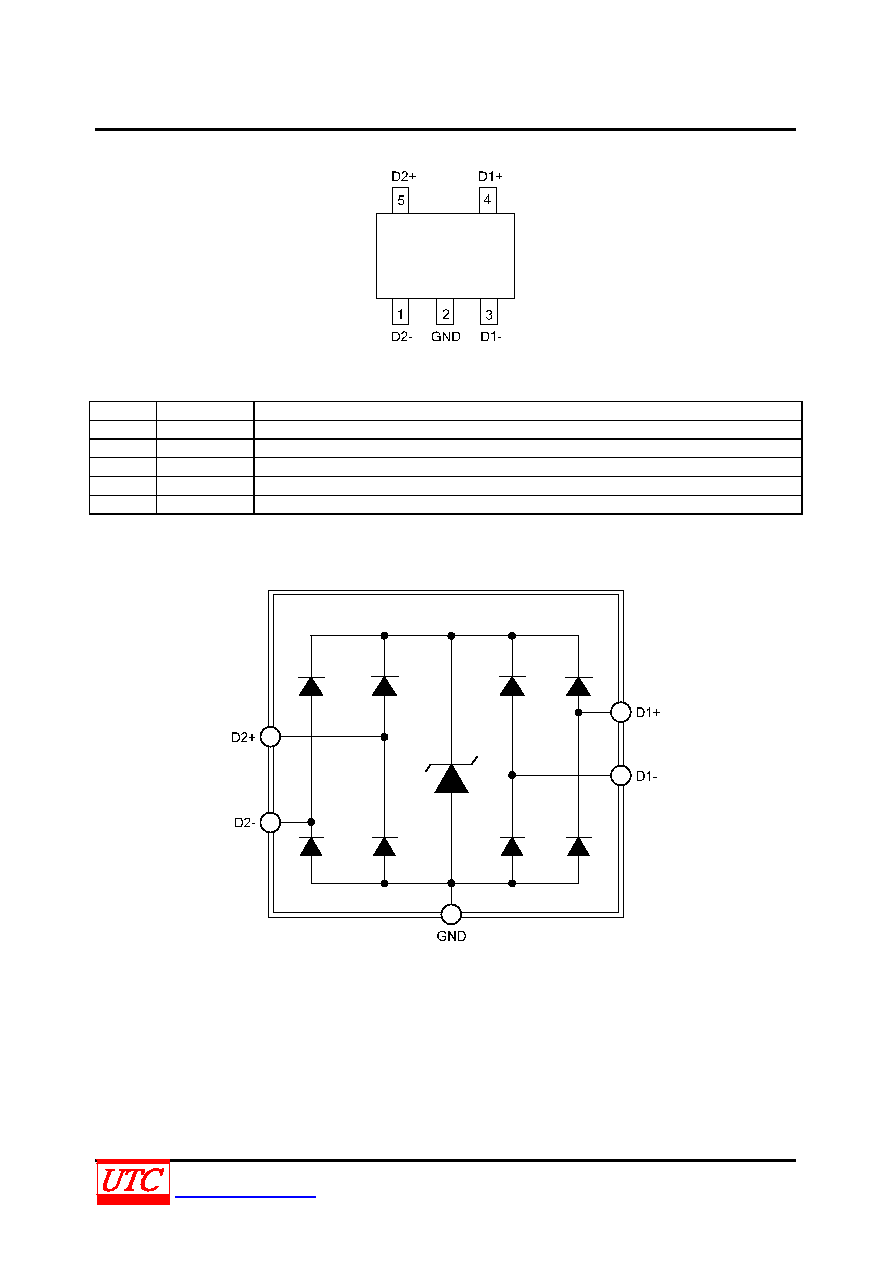

PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
D2-
High-speed ESD clamp, provides ESD protection to the high-speed differential data lines
2
GND
Ground
3
D1-
High-speed ESD clamp, provides ESD protection to the high-speed differential data lines
4
D1+
High-speed ESD clamp, provides ESD protection to the high-speed differential data lines
5
D2+
High-speed ESD clamp, provides ESD protection to the high-speed differential data lines
BLOCK DIAGRAM
