SP3T PIN Diode Switch

Rev. V1

MSW310x-310

12

12

M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.

Visit www.macom.com for additional data sheets and product information.

For further information and support please visit:

https://www.macom.com/support

DS-xxxxxxx

12

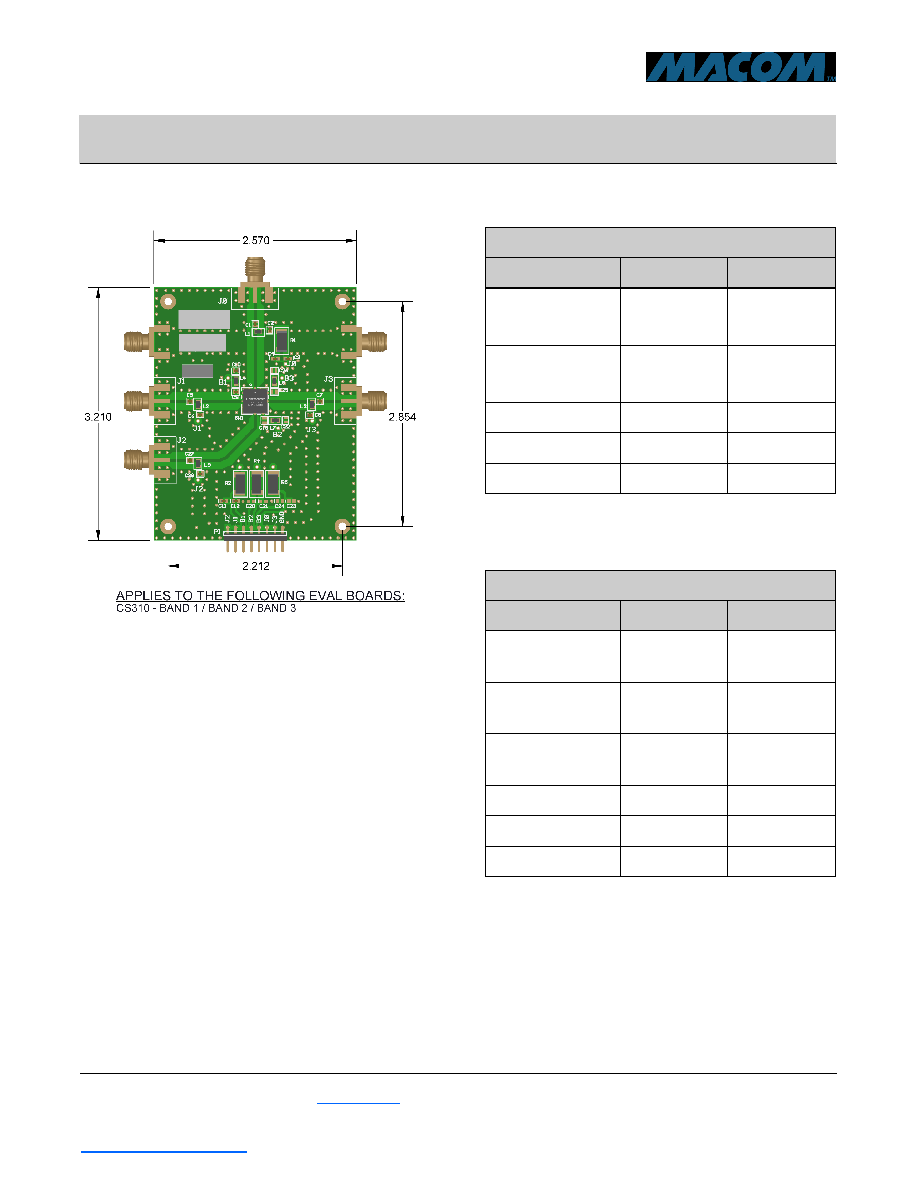

SP3T Switch Evaluation Board Layout

Evaluation Board Parts List

MSW3100-310 Band 1

Part

Value

Case Style

C1, C2, C5 - C10,

C14, C15, C16, C19,

C22, C25 - C28

0.1 µF

0603

C17, C18, C20, C21,

C23, C24

0.1 µF

0603

L1 - L9

4.7 µH

0603

R1

39 Ω

2512

R2, R4, R5

1200 Ω

2512

MSW3101-310 Band 2

Part

Value

Case Style

C1, C5, C7, C9, C13,

C15, C19, C25, C27

22 pF

0603

C2, C6, C8, C10,

C14, C16, C22, C26,

C28

270 pF

0603

C3, C4, C11, C12,

C17, C18, C20, C21,

C23, C24

1000 pF

0603

L1 - L9

82 nH

0603

R1

39 Ω

2512

R2, R4, R5

1200 Ω

2512

5. Second bypass capacitor is optional.
