DocID025604 Rev 3
21/59
LSM6DS0
Functionality
59
3.4
Digital block diagram

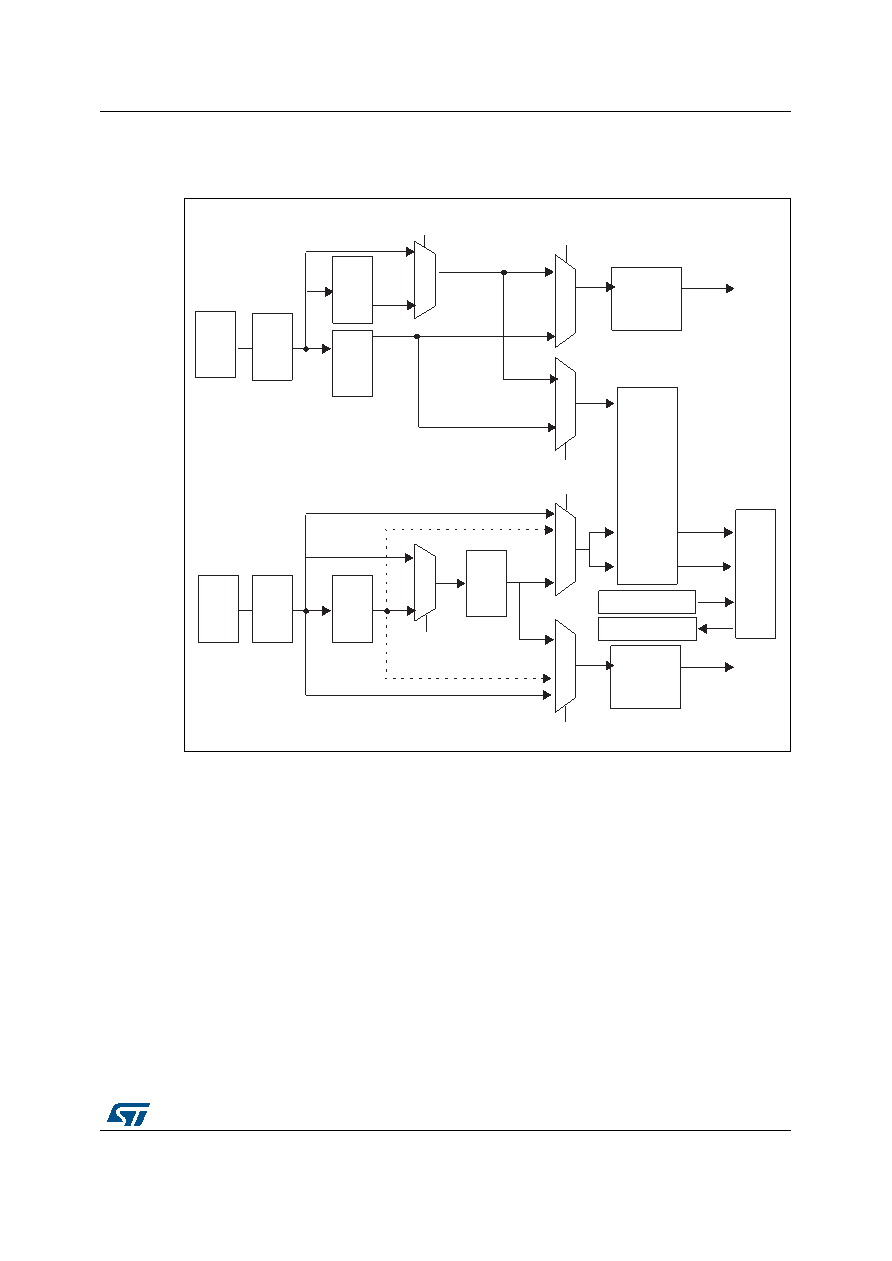

Figure 8. Digital block diagram
ADC
LPF1
1
0
HP_EN
LPF2
HPF
Data Reg
Interrupt
Generator
I2C
SPI
OUT_SEL
INT_SEL
SRC Registers
CFG Registers
Gyro
FIFO
LPF1
ADC
1
0
HPF
HPIS1
FDS
XL
Gyro
LPF2
HR
Interrupt
Generator
XL
0
0
1
1
XL
XL
XL
Gyro
Gyro
Gyro
