background image
Application notes - alternative topologies
LED6000
40/49
DocID027777 Rev 2
The series resistor, R7, must be selected in order to limit the maximum current flowing
through the D3, as shown in Equation 34.
Equation 34
The compensation network design strategy for buck-boost topology is described in
Section 6.4 on page 44.

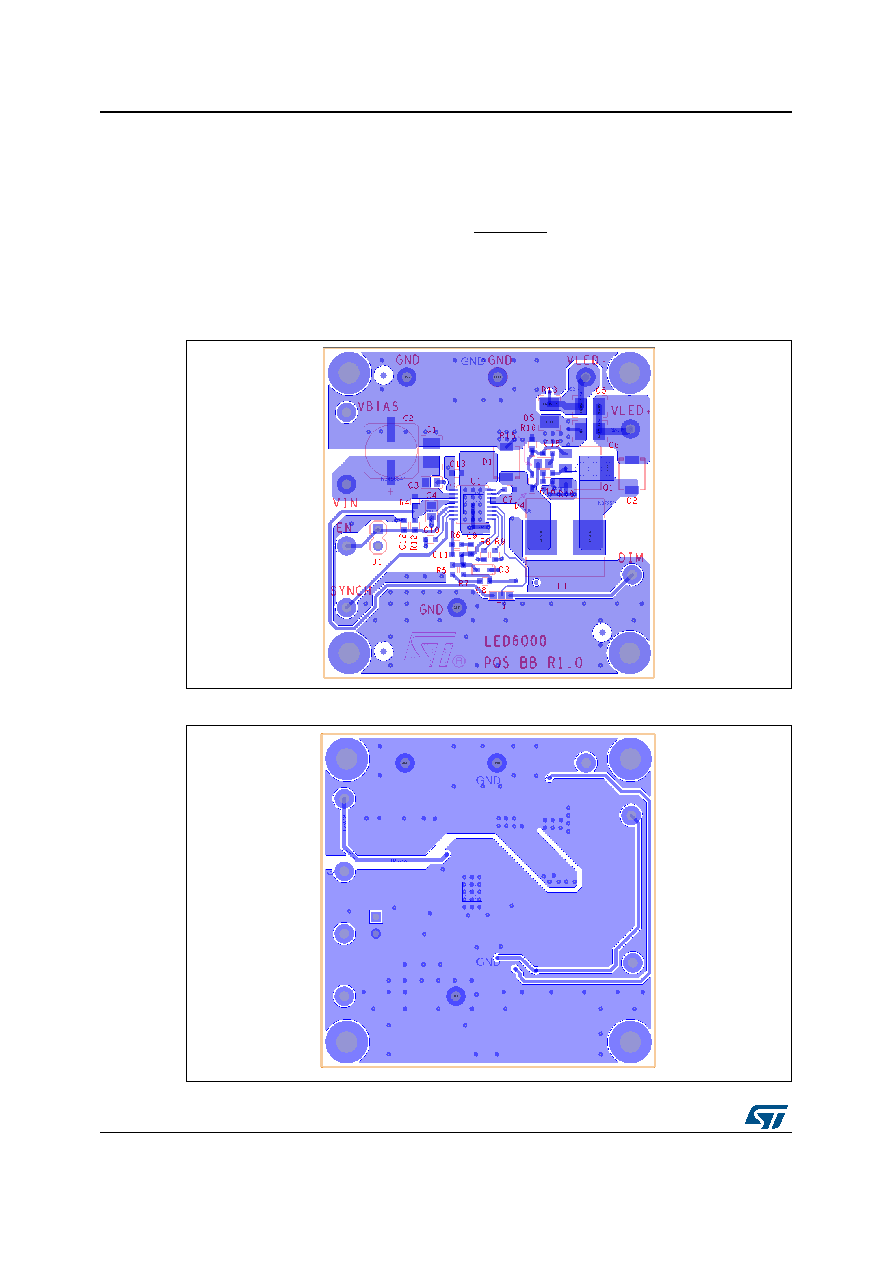

Figure 28. Positive buck-boost PCB layout (component side)
Figure 29. Positive buck-boost PCB layout (bottom side)
7
3
R
R
V
I
SNS
FB
D
