Mitsubishi microcomputers

M16C / 62A Group

SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Interrupt

• Maskable interrupt :

An interrupt which can be enabled (disabled) by the interrupt enable flag

(I flag) or whose interrupt priority can be changed by priority level.

• Non-maskable interrupt : An interrupt which cannot be enabled (disabled) by the interrupt enable flag

(I flag) or whose interrupt priority cannot be changed by priority level.

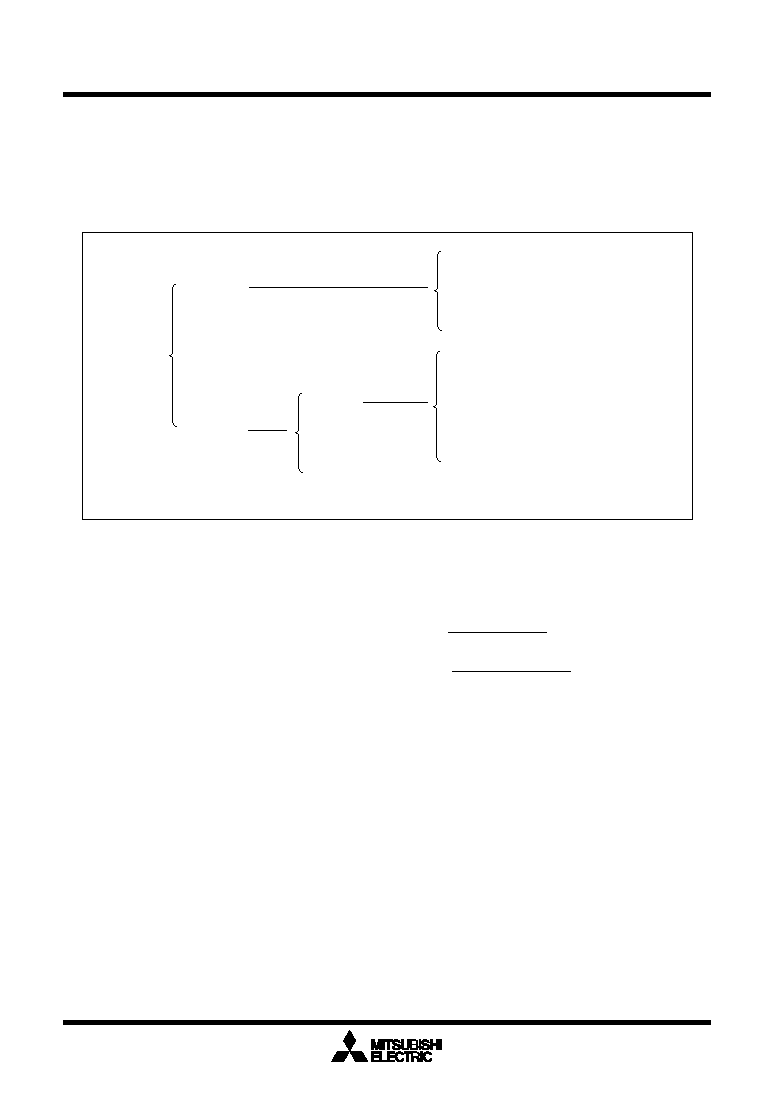

Figure 1.11.1. Classification of interrupts

Interrupt

Software

Hardware

Special

Peripheral I/O (Note)

Undefined instruction (UND instruction)

Overflow (INTO instruction)

BRK instruction

INT instruction

Reset

_______

NMI

________

DBC

Watchdog timer

Single step

Address matched

Note: Peripheral I/O interrupts are generated by the peripheral functions built into the microcomputer system.

Overview of Interrupt

Type of Interrupts

Figure 1.11.1 lists the types of interrupts.
