Series YB2

Panel Seal Pushbuttons

D119

www.nkkswitches.com

24mm square and 25mm diameter pushbuttons with the shortest above-panel

dimension (1.8mm) in the industry for splashproof design.

Meets IP65 of IEC60529 standards (similar to NEMA 4 and 13), providing

dust tight and splashproof panel seal protection.

Tamper resistant 18mm square and 19mm diameter actuators.

Short body of .965” (24.5mm) conserves behind-panel space.

Distinctive long stroke and light touch actuation for clear

indication of circuit status.

Choice of cap colors includes clear, brushed chrome, red,

green, or yellow, for enhanced panel appearance. Metallic

silver cap option has bright ring illumination (round only).

Unbrushed chrome has the look of stainless steel when non-

illuminated, and LED color or legends when illuminated.

Brilliant illumination with multiple LED colors.

Bezel color options in black or brushed chrome.

Brushed chrome option is lighter weight than actual

metal switches due to metal plating on resin.

Available in momentary and alternate action with latchdown.

Crisp actuation and clear circuit status provided by snap-action

contact mechanism. Arc barrier protects against crossover.

Combination solder lug and .110” quick connect terminals. Terminals

are epoxy sealed to lock out flux, dust, solvents, and other contaminants,

as well as to secure terminals and improve contact stability.

Custom legends on actuator or inserts.

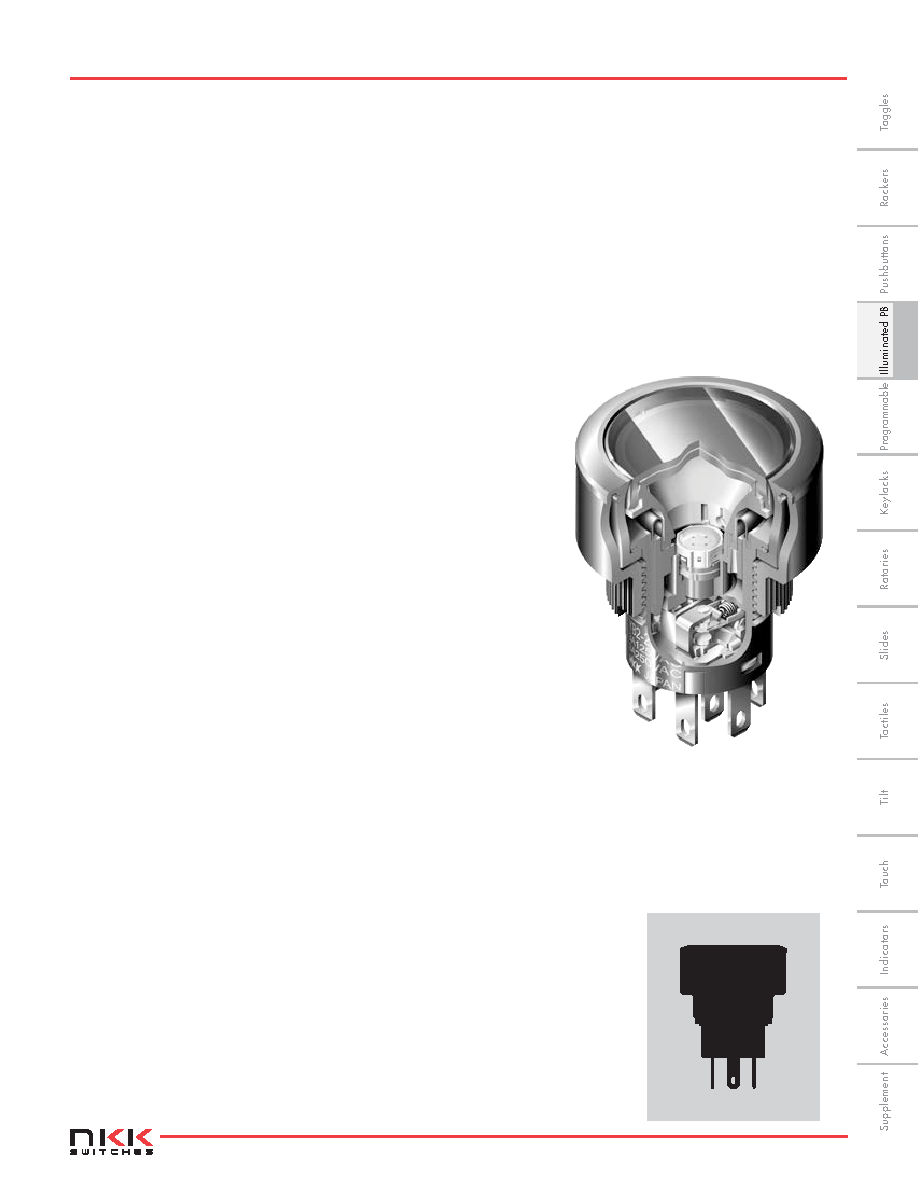

Distinctive Characteristics
