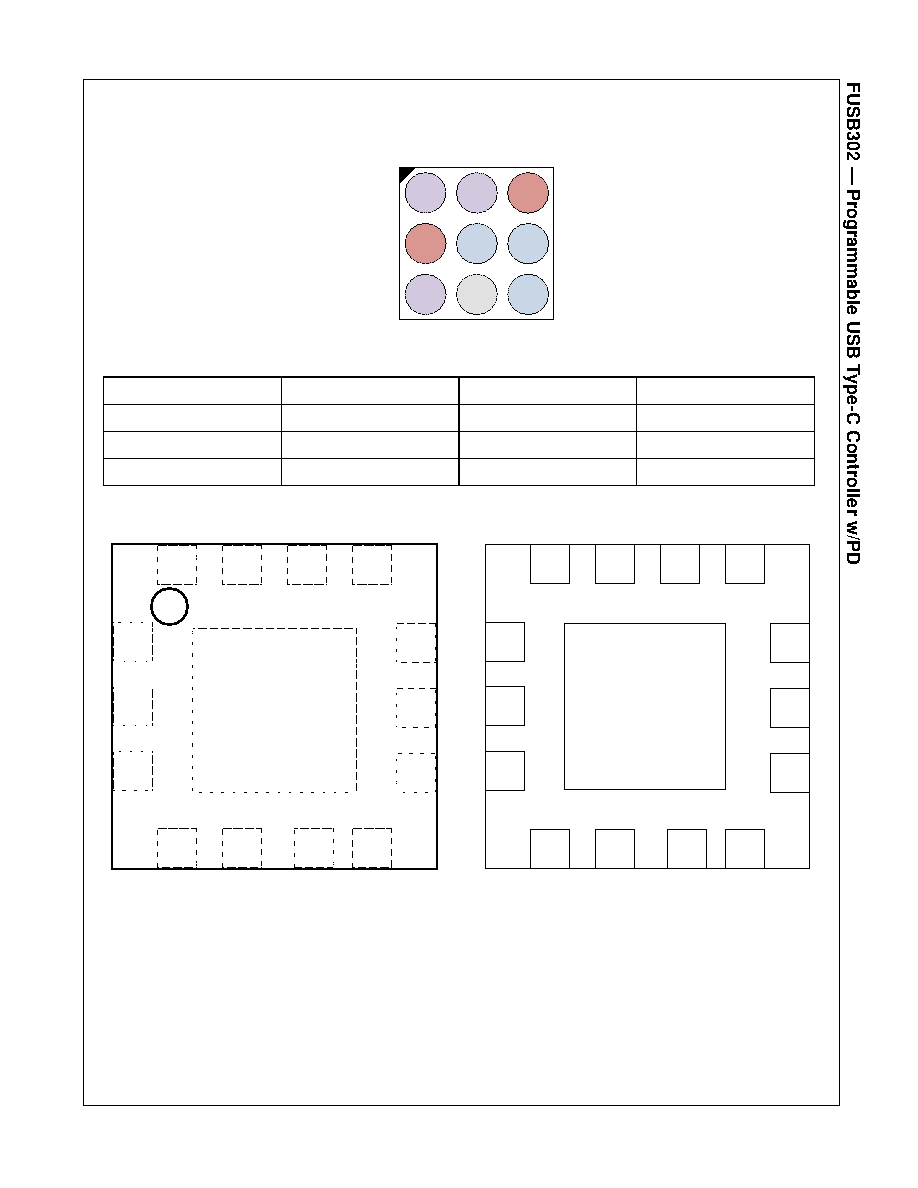

Pin Configuration
Figure 4.
FUSB302UCX Pin Assignment (Top Through View)
Pin Map
Column 1
Column 2
Column 3
Row A
CC2
VBUS
VDD
Row B
VCONN
INT_N
SCL
Row C
CC1
GND
SDA
Figure 5.
FUSB302MPX Pin Assignment (N/C = No Connect)
CC2
VBUS
VDD
VCONN
INT_N
SCL
CC1
GND
SDA
A
B
C
1 2 3
2
VBUS
1
CC2
3
VDD
4
VDD
5
INT_N
6
SCL
7
SDA
8
GND
9
GND
10
CC1
11
CC1
12
VCONN
13
VCONN
14
CC2
9
GND
10
CC1
8
GND
7
SDA
6
SCL
5
INT_N
4
VDD
3
VDD
2
VBUS
1
CC2
14
CC2
13
VCONN
12
VCONN
11
CC1
TOP
THROUGH
VIEW
N/C
N/C
BOTTOM
VIEW
