MP02750 datasheet(1/5 Pages) GOLLEDGE

Numer części	MP02750

Szczegółowy opis	SAW Filter 781.5 MHz

PDF	5 Pages

Scroll/Zoom	100%

Producent	GOLLEDGE [Golledge Electronics Ltd]

Strona internetowa	http://www.golledge.com

Logo

1 / 5 page

Tel: +44 1460 256 100

Fax: +44 1460 256 101

www.golledge.com

Golledge Electronics Ltd

Eaglewood Park, ILMINSTER

Somerset, TA19 9DQ, UK

SAW Filter 781.5 MHz

Model: TA1017A

Part No: MP02750

REV. NO: 1

TA1017A v1

1

A. MAXIMUM RATING:

1. Input Power Level: 10 dBm

2. DC Voltage: 3V

3. Operating Temperature: -30°C to +85°C

4. Storage Temperature: -40°C to +85°C

B. ELECTRICAL CHARACTERISTICS:

Item

Unit

Min.

Typ.

Max.

Note

Center Frequency Fc

MHz

-

781.5

-

Insertion loss (775~788 MHz) IL

dB

-

1.8

4

-

Bandwidth

MHz

13

28

-

Amplitude Ripple (775 ~ 788 MHz)

dB

-

0.3

1

-

Attenuation (Reference level from 0 dB)

300 ~ 700 MHz

dB

28

59

-

728 ~ 757 MHz

dB

10

48

-

880 ~ 1050 MHz

dB

28

62

-

Temperature Coefficient of Frequency

Ppm/°C

-

-36

-

C. MEASUREMENT CIRCUIT:

50Ω

HP Network analyzer

50Ω

SAW Filter

2

6

1,3,4,5,7,8

Podobny numer części - MP02750

Producent	Numer części	Arkusz danych	Szczegółowy opis
Golledge Electronics Lt...	MP02751	206Kb / 6P	SAW Filter 325MHz
Golledge Electronics Lt...	MP02757	112Kb / 6P	SAW Filter 1232.0MHz

More results

Podobny opis - MP02750

Producent	Numer części	Arkusz danych	Szczegółowy opis
Integrated Circuit Syst...	SF0063CN02271T	89Kb / 2P	63 MHz SAW Bandpass Filter 63 MHz SAW Bandpass Filter Rev X1
Integrated Circuit Syst...	SF0096BA02394S	138Kb / 2P	96 MHz SAW Bandpass Filter 96 MHz SAW Bandpass Filter
TAI-SAW TECHNOLOGY CO.,...	TA1017A	372Kb / 6P	SAW Filter 781.5 MHz
API Technologies Corp	SF0240CD03109S	154Kb / 3P	240 MHz SAW Filter 240 MHz SAW Filter
	SF0185BA02302S	126Kb / 3P	185.76 MHz SAW Bandpass Filter 185.76 MHz SAW Bandpass Filter
	SF0162BA03266S	1Mb / 3P	SAW Filter 162 MHz SAW Bandpass Filter, 0.06 MHz Bandwidth
TriQuint Semiconductor	856764	411Kb / 6P	781.5 MHz SAW Filter
TAI-SAW TECHNOLOGY CO.,...	TA1239A	459Kb / 6P	SAW Filter 781.5 MHz
	TA1609A	198Kb / 6P	SAW Filter 781.5 MHz
	TA1017B	402Kb / 6P	SAW Filter 781.5 MHz

More results

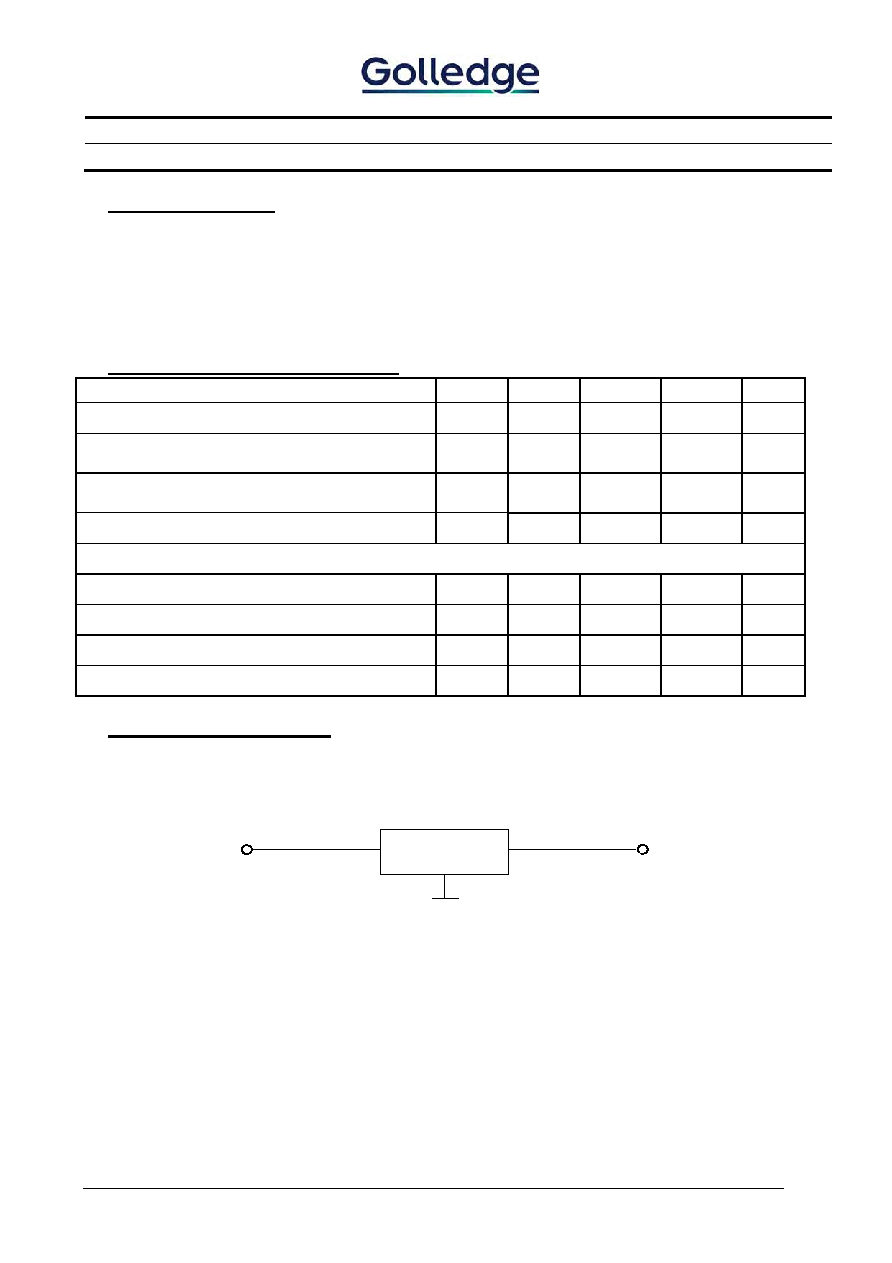

MP02750 Arkusz danych(PDF) 1 Page - Golledge Electronics Ltd
