ADRF6521
Data Sheet
Rev. 0 | Page 10 of 33
–50
–45
–40
–35
–30
–25
–20
–15
–10
–5
0
0.1
1
FREQUENCY (GHz)
VGN = 1.5V, –40°C
VGN = 0.75V, –40°C
VGN = 0V, –40°C
VGN = 1.5V, +25°C
VGN = 0.75V, +25°C
VGN = 0V, +25°C
VGN = 1.5V, +85°C
VGN = 0.75V, +85°C
VGN = 0V, +85°C

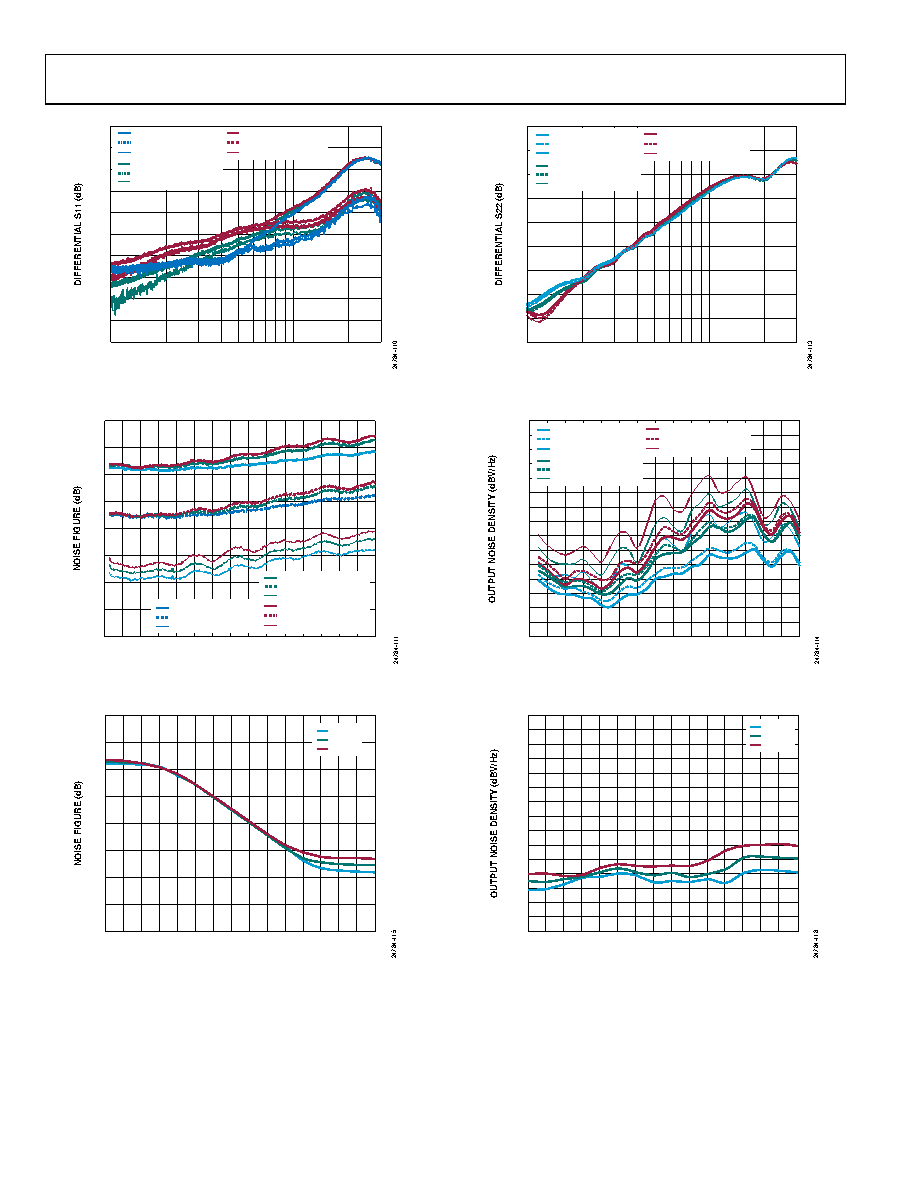

Figure 9. Differential Input Return Loss (S11) vs. Frequency over Temperature
and VGN
0
5
10
15
20
25
30
35
40
FREQUENCY (GHz)
VGN = 1.5V, +25°C
VGN = 0.75V, +25°C
VGN = 0V, +25°C
VGN = 1.5V, +85°C
VGN = 0.75V, +85°C
VGN = 0V, +85°C
VGN = 1.5V, –40°C
VGN = 0.75V, –40°C
VGN = 0V, –40°C
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0
Figure 10. Noise Figure vs. Frequency over Temperature and VGN
0
5
10
15
20
25
30
35
40
VGN VOLTAGE (V)
–40°C
+25°C
+85°C
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5
Figure 11. Noise Figure vs. VGN Voltage over Temperature at 500 MHz
–45
–40
–35
–30
–25
–20
–15
–10
–5
0
1
0.1
FREQUENCY (GHz)
VGN = 1.5V, –40°C
VGN = 0.75V, –40°C
VGN = 0V, –40°C
VGN = 1.5V, +25°C
VGN = 0.75V, +25°C
VGN = 0V, +25°C
VGN = 1.5V, +85°C
VGN = 0.75V, +85°C
VGN = 0V, +85°C
Figure 12. Differential Output Return Loss (S22) vs. Frequency over
Temperature and VGN
–165
–164
–163
–162
–161
–160
–159
–158
–157
–156
–155
–154
–153
–152
–151
–150
FREQUENCY (GHz)
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0
VGN = 1.5V, = –40°C
VGN = 0.75V, –40°C
VGN = 0V, –40°C
VGN = 1.5V, +25°C
VGN = 0.75V, +25°C
VGN = 0V, +25°C
VGN = 1.5V, +85°C
VGN = 0.75V, +85°C
VGN = 0V, +85°C
Figure 13. Output Noise Density vs. Frequency over Temperature and VGN
–165
–164
–163
–162
–161
–160
–159
–158
–157
–156
–155
–154
–153
–152
–151
–150
VGN (V)
–40°C
+25°C
+85°C
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5
Figure 14. Output Noise Density vs. VGN over Temperature at 500 MHz
