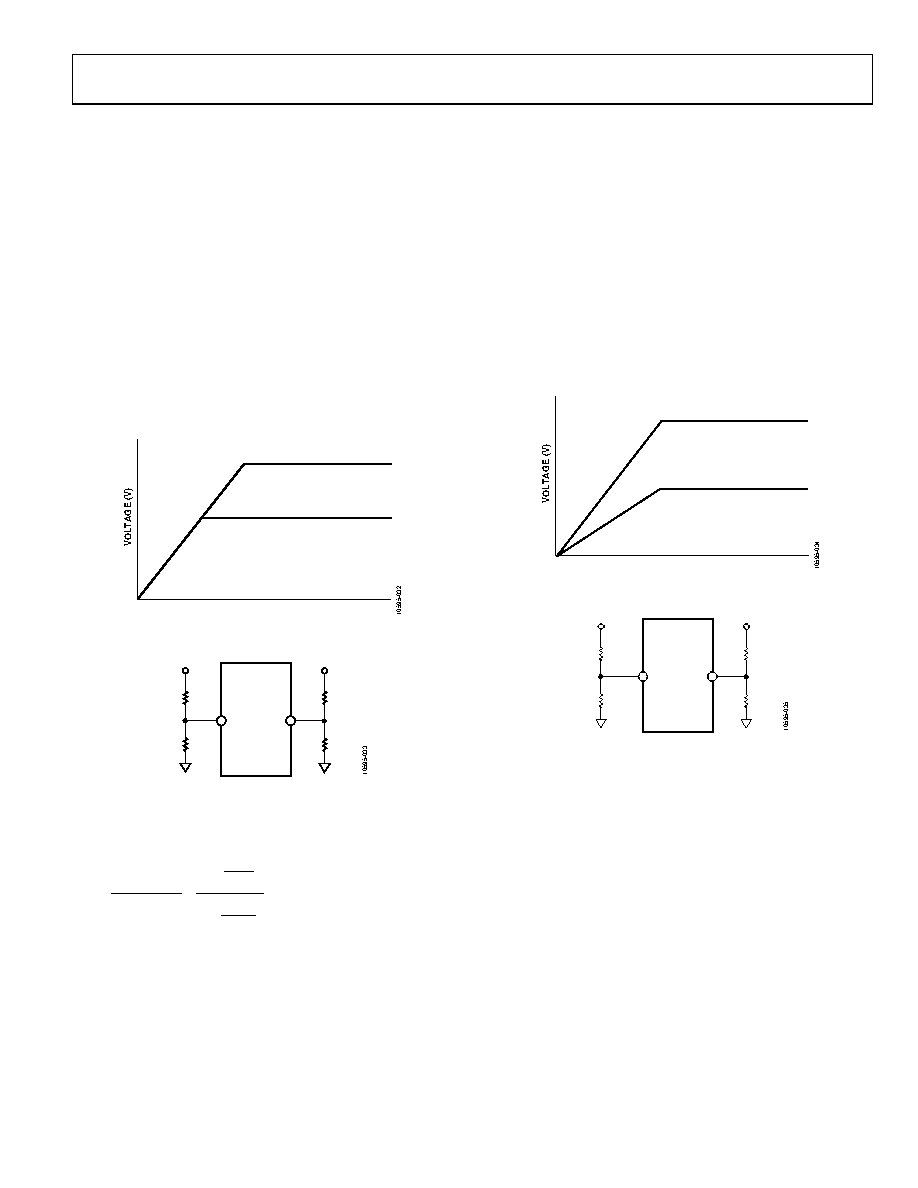

21 / 24 page  Data Sheet ADP1851 Rev. B | Page 21 of 24 VOLTAGE TRACKING The ADP1851 includes a tracking feature that tracks a master voltage. In all tracking configurations, the output can be set as low as 0.6 V for a given operating condition. Two tracking configurations are possible with the ADP1851: coincident and ratiometric tracking. Coincident Tracking The most common application is coincident tracking, used in core vs. I/O voltage sequencing and similar applications. As shown in Figure 30, coincident tracking forces the ramp rate of the output voltage to be the same for the master and slave until the slave output reaches its regulation voltage. Connect the slave SS/TRK input to a resistor divider from the master voltage that is the same as the divider used on the slave FB pin. This forces the slave voltage to be the same as the master voltage. For coincident tracking, use RTRKT = RTOP and RTRKB = RBOT, as shown in Figure 31. TIME MASTER VOLTAGE SLAVE VOLTAGE Figure 30. Coincident Tracking SS/ TRK FB ADP1851 1.8V VOUT_SLAVE RTOP 20kΩ 0.6V RBOT 10kΩ 3.3V VOUT_MASTER RTRKT 20kΩ 1.1V RTRKB 10kΩ Figure 31. Example of a Coincident Tracking Circuit The ratio of the slave output voltage to the master voltage is a function of the two dividers. + + = TRKB TRKT BOT TOP MASTER OUT SLAVE OUT R R R R V V 1 1 _ _ As the master voltage rises, the slave voltage rises identically. Eventually, the slave voltage reaches its regulation voltage, at which point the internal reference takes over the regulation while the SS/TRK input continues to increase, thus removing itself from influencing the output voltage. To ensure that the output voltage accuracy is not compromised by the SS/TRK pin being too close in voltage to the reference voltage (VFB, typically 0.6 V), make sure that the final value of the SS/TRK voltage of the slave channel is at least 30 mV above VFB. Ratiometric Tracking Ratiometric tracking limits the output voltage to a fraction of the master voltage, as illustrated in Figure 32 and Figure 33. The final SS/TRK voltage of the slave channel should be set to at least 30 mV above VFB. TIME MASTER VOLTAGE SLAVE VOLTAGE Figure 32. Ratiometric Tracking SS/ TRK FB ADP1851 1.8V VOUT_SLAVE RTOP 20kΩ 0.6V RBOT 10kΩ 3.3V VOUT_MASTER RTRKT 41.2kΩ 0.65V RTRKB 10kΩ Figure 33. Example of a Ratiometric Tracking Circuit PCB LAYOUT GUIDELINES The recommended board layout practices for the synchronous buck controller are described in the AN-1119 Application Note. |
|
|
