ADP5014
Data Sheet
Rev. A | Page 10 of 34

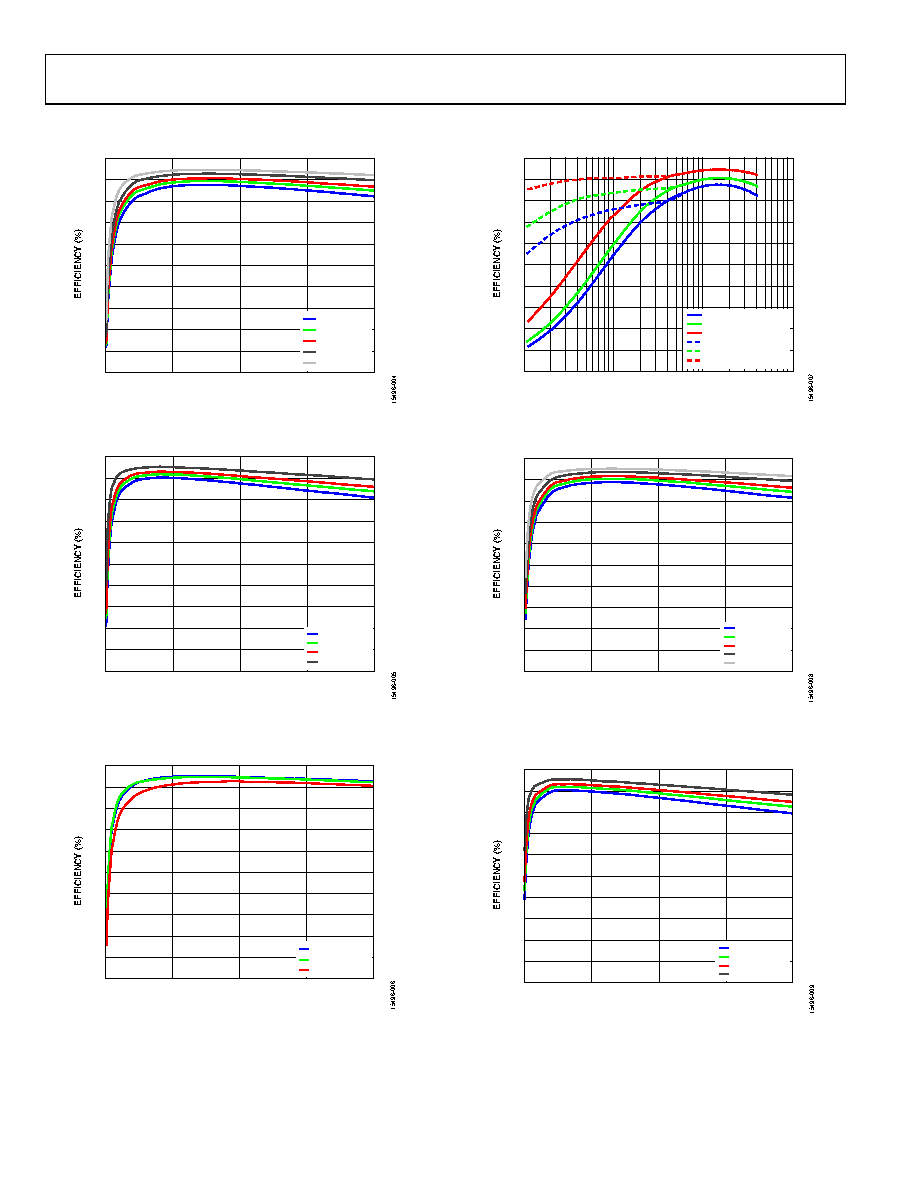

TYPICAL PERFORMANCE CHARACTERISTICS
0
10
20
30
40
50
60
70
80
90
100
0
1.0
2.0
3.0
4.0
IOUT (A)
VOUT = 1.2V
VOUT = 1.5V
VOUT = 1.8V
VOUT = 2.5V
VOUT = 3.3V
Figure 4. Channel 1/Channel 2 Efficiency Curve, VIN = 5 V, fSW = 1.2 MHz,
FPWM Mode
0
10
20
30
40
50
60
70
80
90
100
0
1.0
2.0
3.0
4.0
IOUT (A)
VOUT = 1.2V
VOUT = 1.5V
VOUT = 1.8V
VOUT = 2.5V
Figure 5. Channel 1/Channel 2 Efficiency Curve, VIN = 3.3 V, fSW = 1.2 MHz,
FPWM Mode
0
10
20
30
40
50
60
70
80
90
100
0
1.0
2.0
3.0
4.0
fSW = 500kHz
fSW = 1.2MHz
fSW = 2.4MHz
IOUT (A)
Figure 6. Channel 1/Channel 2 Efficiency Curve, VIN = 5 V, VOUT = 3.3 V, FPWM
Mode
0
10
20
30
40
50
60
70
80
90
100
0.01
0.1
1
10
IOUT (A)
VOUT = 1.2V FPWM
VOUT = 1.8V FPWM
VOUT = 3.3V FPWM
VOUT = 1.2V PSM
VOUT = 1.8V PSM
VOUT = 3.3V PSM
Figure 7. Channel 1/Channel 2 Efficiency Curve, VIN = 5 V, fSW = 1.2 MHz,
FPWM and Automatic PWM/PSM Modes
0
10
20
30
40
50
60
70
80
90
100
0
0.5
1.0
1.5
2.0
VOUT = 1.2V
VOUT = 1.5V
VOUT = 1.8V
VOUT = 2.5V
VOUT = 3.3V
IOUT (A)
Figure 8. Channel 3/Channel 4 Efficiency Curve, VIN = 5 V, fSW = 1.2 MHz,
FPWM Mode
0
10
20
30
40
50
60
70
80
90
100
0
0.5
1.0
1.5
VOUT = 1.2V
VOUT = 1.5V
VOUT = 1.8V
VOUT = 2.5V
2.0
IOUT (A)
Figure 9. Channel 3/Channel 4 Efficiency Curve, VIN = 3.3 V, fSW = 1.2 MHz,
FPWM Mode
