Data Sheet
ADPA1122
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
analog.com
Rev. 0 | 7 of 17

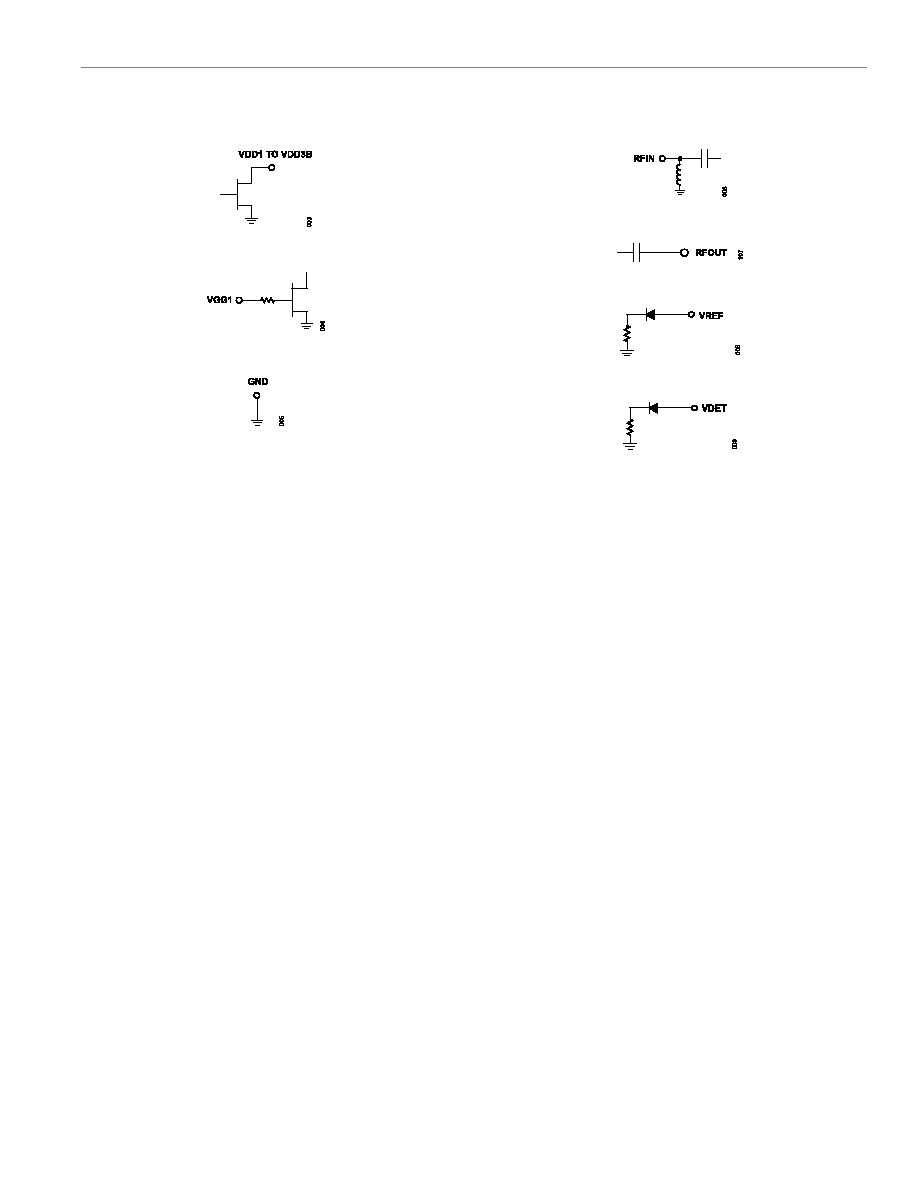

INTERFACE SCHEMATICS
Figure 3. VDD1 to VDD3B Interface Schematic
Figure 4. VGG1 Interface Schematic
Figure 5. GND Interface Schematic
Figure 6. RFIN Interface Schematic
Figure 7. RFOUT Interface Schematic
Figure 8. VREF Interface Schematic
Figure 9. VDET Interface Schematic
