ADPA1122AEHZ-R7 Arkusz danych(PDF) 9 Page - Analog Devices

Numer części ADPA1122AEHZ-R7
Szczegółowy opis  43 dBm, 20 W, GaN Power Amplifier, 8.2 GHz to 11.8 GHz
PDF  17 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Producent  AD [Analog Devices]
Strona internetowa  http://www.analog.com
Logo AD - Analog Devices

ADPA1122AEHZ-R7 Arkusz danych(HTML) 9 Page - Analog Devices

Back Button ADPA1122AEHZ-R7 Datasheet HTML 5Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 6Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 7Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 8Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 9Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 10Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 11Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 12Page - Analog Devices ADPA1122AEHZ-R7 Datasheet HTML 13Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 9 / 17 page
background image
Data Sheet
ADPA1122
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 9 of 17

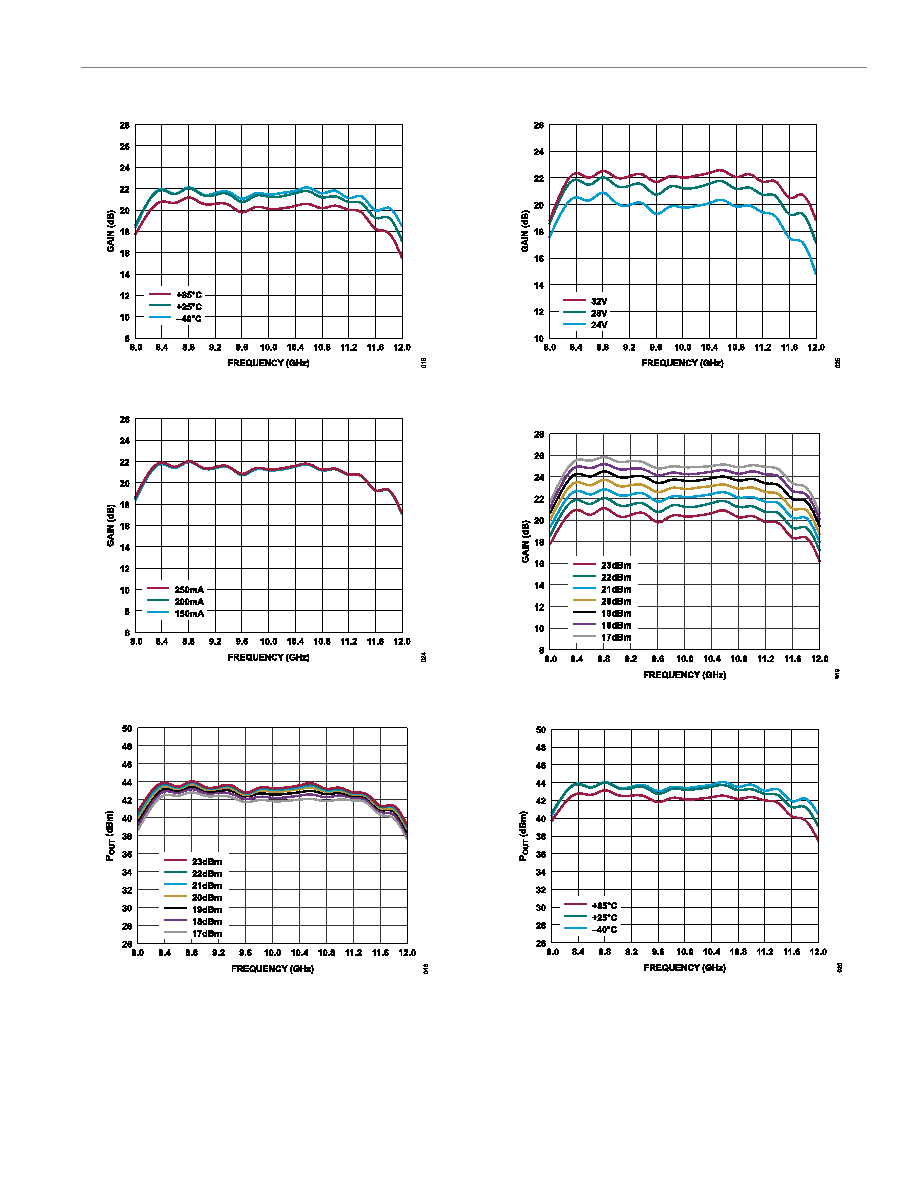

Figure 16. Gain vs. Frequency for Various Temperatures at PIN = 22 dBm
Figure 17. Gain at PIN = 22 dBm vs. Frequency for Various IDQ Values at VDD =
28 V
Figure 18. POUT vs. Frequency for Various PIN Levels
Figure 19. Gain at PIN = 22 dBm vs. Frequency for Various Supply Voltages at
IDQ = 200 mA
Figure 20. Gain vs. Frequency for Various PIN Levels
Figure 21. POUT vs. Frequency for Various Temperatures at PIN = 22 dBm
