ADP1822
Rev. B | Page 21 of 24

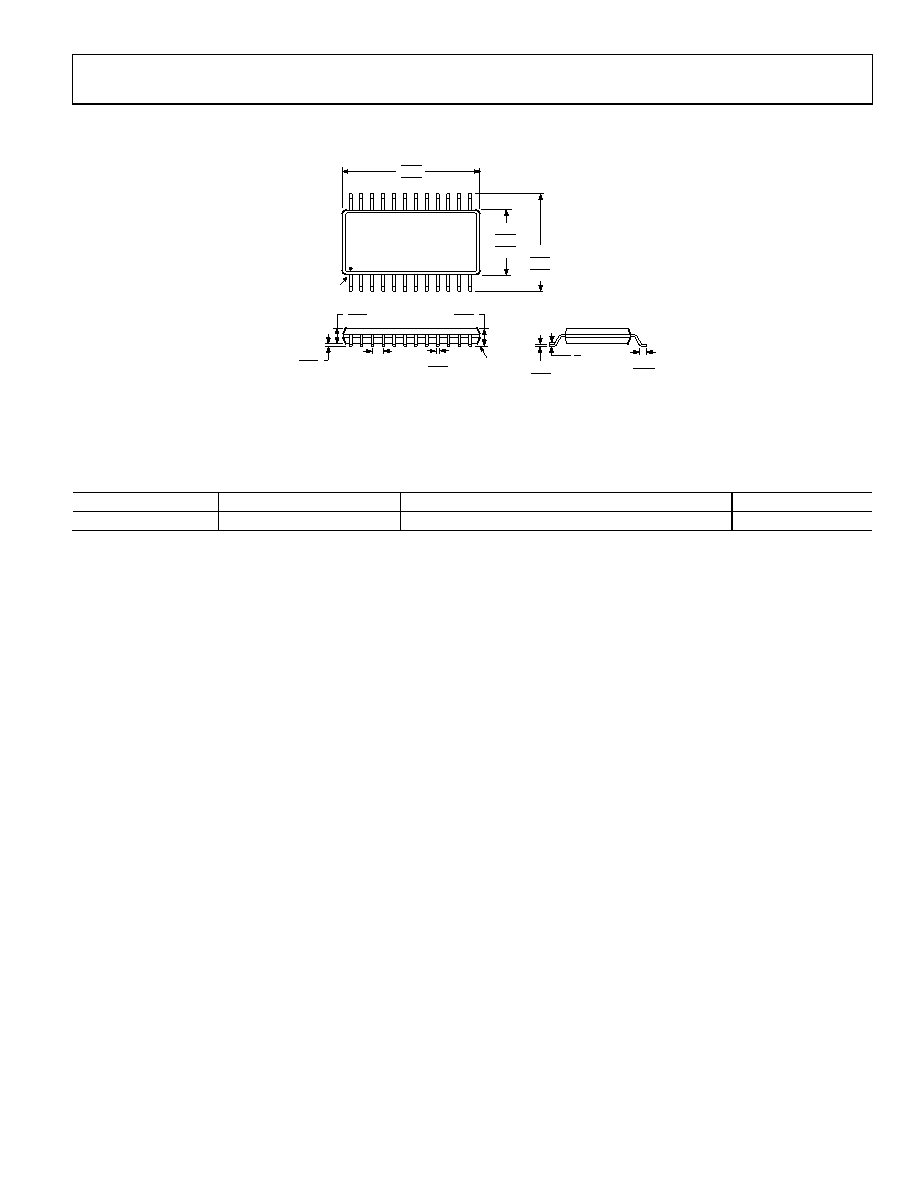

OUTLINE DIMENSIONS
COMPLIANT TO JEDEC STANDARDS MO-137AE
24
13
12
1
PIN 1
SEATING
PLANE
0.010
0.004
0.012
0.008
0.025
BSC
0.069
0.053
0.010
0.006
0.050
0.016
8°
0°
0.065
0.049
COPLANARITY
0.004
0.345
0.341
0.337
0.158
0.154
0.150
0.244
0.236
0.228
Figure 22. 24-Lead Shrink Small Outline Package [QSOP]
(RQ-24)
Dimensions shown in inches
ORDERING GUIDE
Model
Temperature Range
Package Description
Package Option
ADP1822ARQZ-R7
–40°C to +85°C
24-Lead Shrink Small Outline Package (QSOP)
RQ-24
1
1 Z = Pb-free part.
