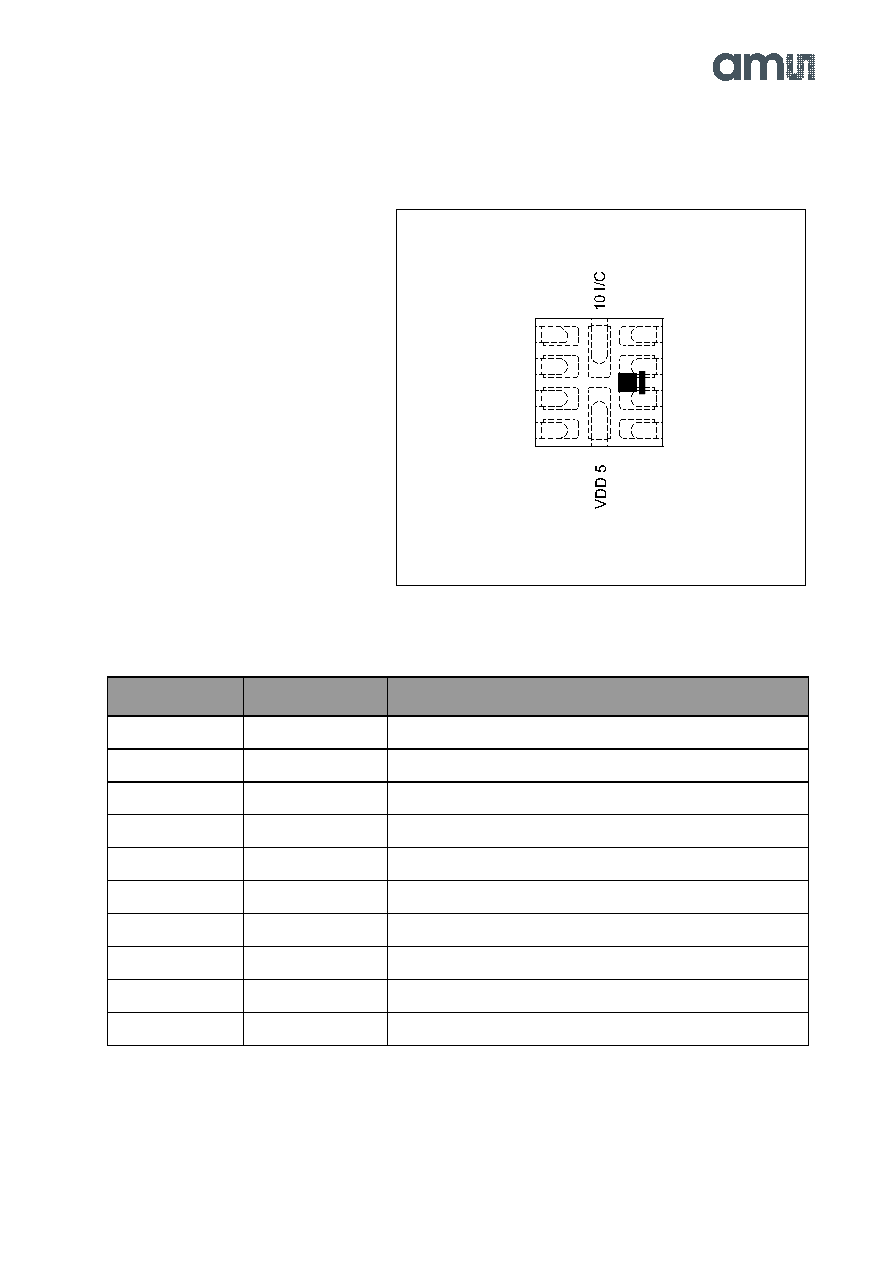

TSL2541 − Pin Assignment
Figure 3:
Pin Diagram of TSL2541
Figure 4:
Pin Description of TSL2541 (10-Pin QFN)
Pin Number
Pin Name
Description
1
PGND
Power ground
2
INT
Interrupt. Open drain output (active low)
3
SCL
I²C serial clock input terminal
4
SDA
I²C serial data I/O terminal
5
VDD
Supply voltage
6
NC
No connection
7
NC
No connection
8
NC
No connection
9
VSS
Ground. All voltages are referenced to VSS
10
I/C
Internal connection. Leave floating
