Preliminary Technical Data
SSM2602
Rev. PrB | Page 15 of 28
TYPICAL APPLICATION CIRCUITS
AVDD
VMID
AVSS
DBVDD DVSS DCVDD
HPVDD
HPVSS
MICBIAS
RHPOUT
ROUT
MICIN
DIGITAL
PROCESSOR
RLINEIN
MUX
ADC
LLINEIN
MUX
ADC
DAC
DAC
LOUT
LHPOUT
ATTEN
OSC
CLK GEN
OSC
CLK GEN
MCLK/XTI
XTO
CLKOUT
CONTROL INTERFACE
MODE CSB SDINS CLK
DIGITAL AUDIO INTERFACE
DACDAT ADCDAT BCLK DACLRC ADCLRC
OUTPD
DACPD
ADCPD
LADCPD
RADCPD
LDACPD
RDACPD
LHPPD
RHPPD
PWRPD
REF
MICPD
MICBPD
RINPD
LINPD
LINEPD
OSCPD
CLKOUTPD
ATTEN
ATTEN
ATTEN
SSM2602

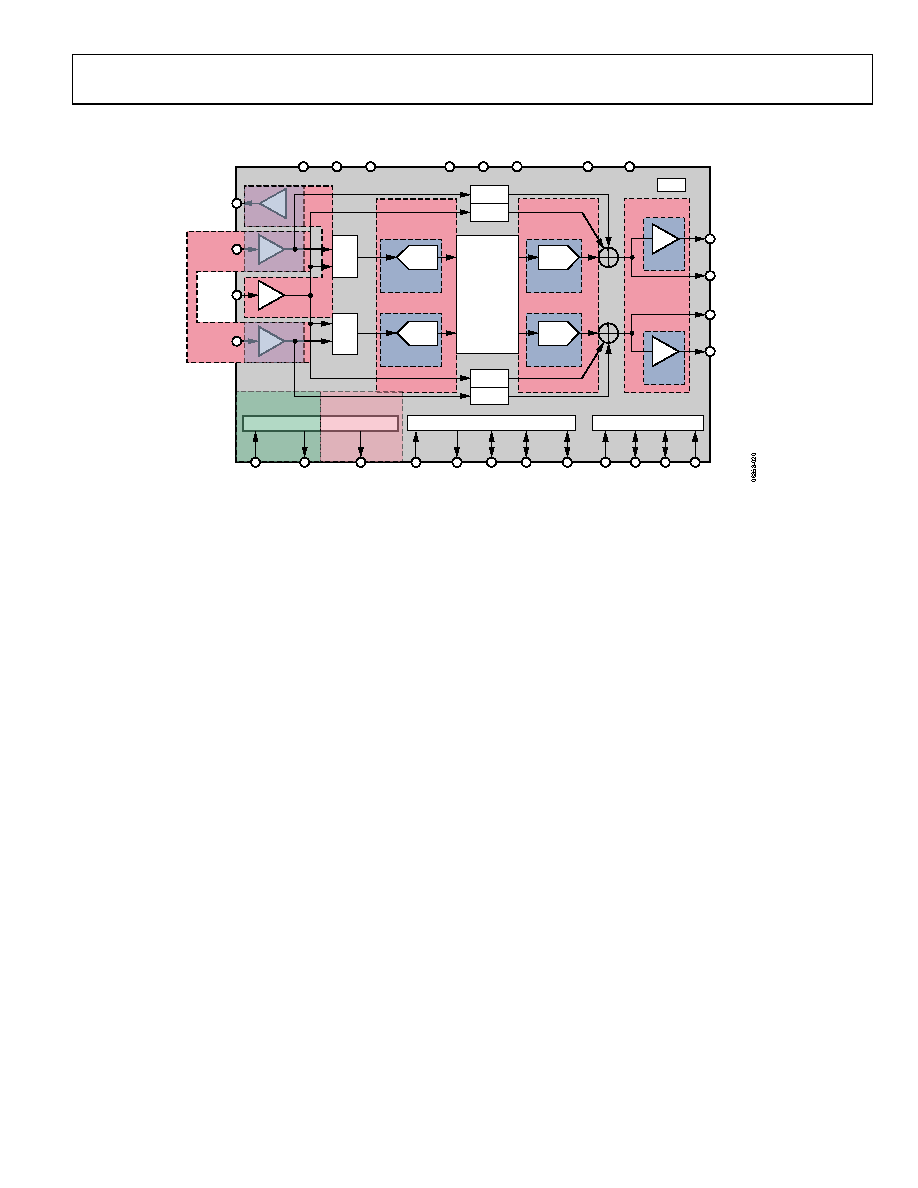

Figure 22. SSM2602 Power Management Functional Location Diagram
