ADP1829
Rev. 0 | Page 12 of 32
VIN, 5V/DIV
SOFT START, 1V/DIV
4ms/DIV
T
VOUT, 2V/DIV

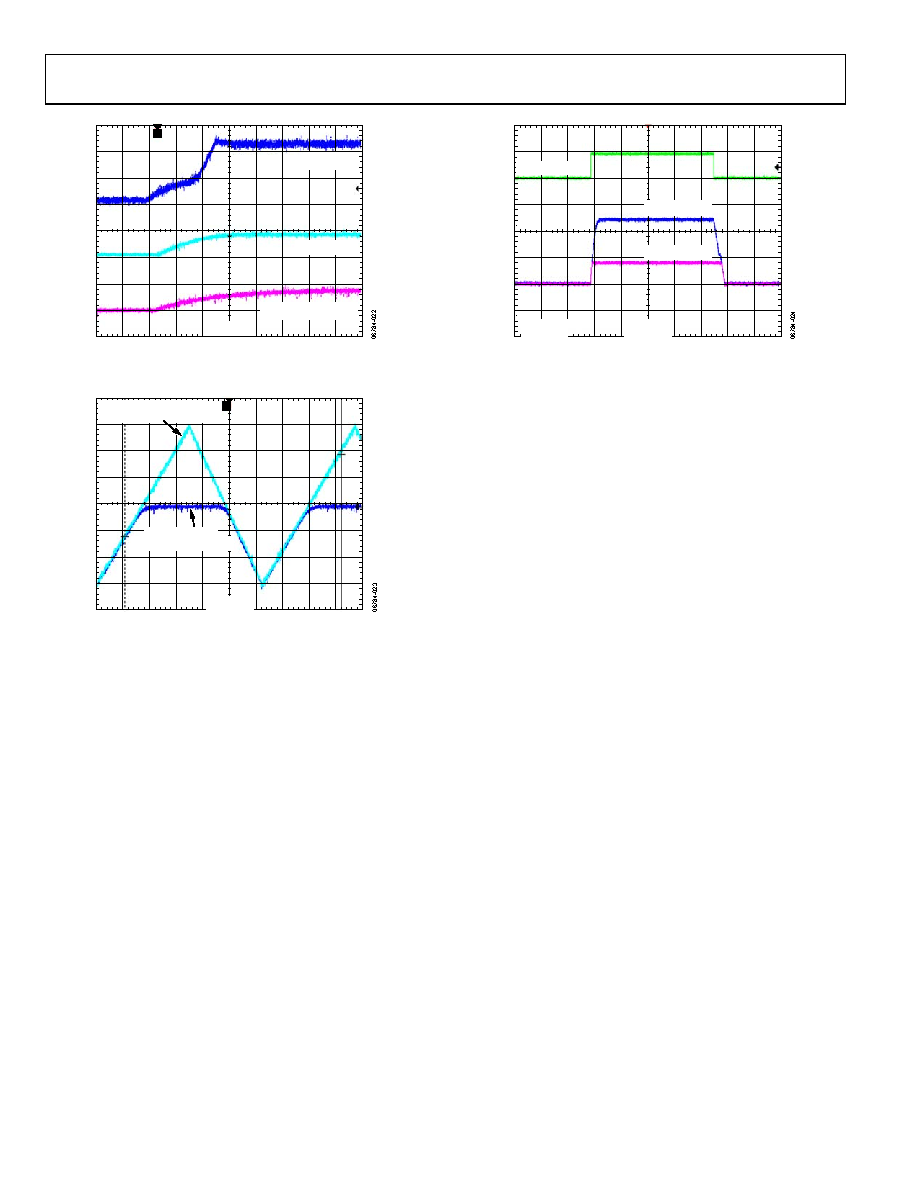

Figure 22. Power-On Response, EN Tied to IN
FEEDBACK PIN
VOLTAGE, 200mV/DIV
TRACK PIN VOLTAGE,
200mV/DIV
20ms/DIV
T
Figure 23. Output Voltage Tracking Response
40ms/DIV
VOUT1, 2V/DIV
VOUT2, 2V/DIV
EN2 PIN, 5V/DIV
EN1 = 5V
Figure 24. Coincident Voltage Tracking Response
