Data Sheet
AD4050/AD4056
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 13 of 67
VDD = 3.3 V, VREF = 3.3 V, VIO = 3.3 V, CREF = 2.2 μF, maximum fS, TA = 25°C, and all features in default configuration, unless otherwise
specified.

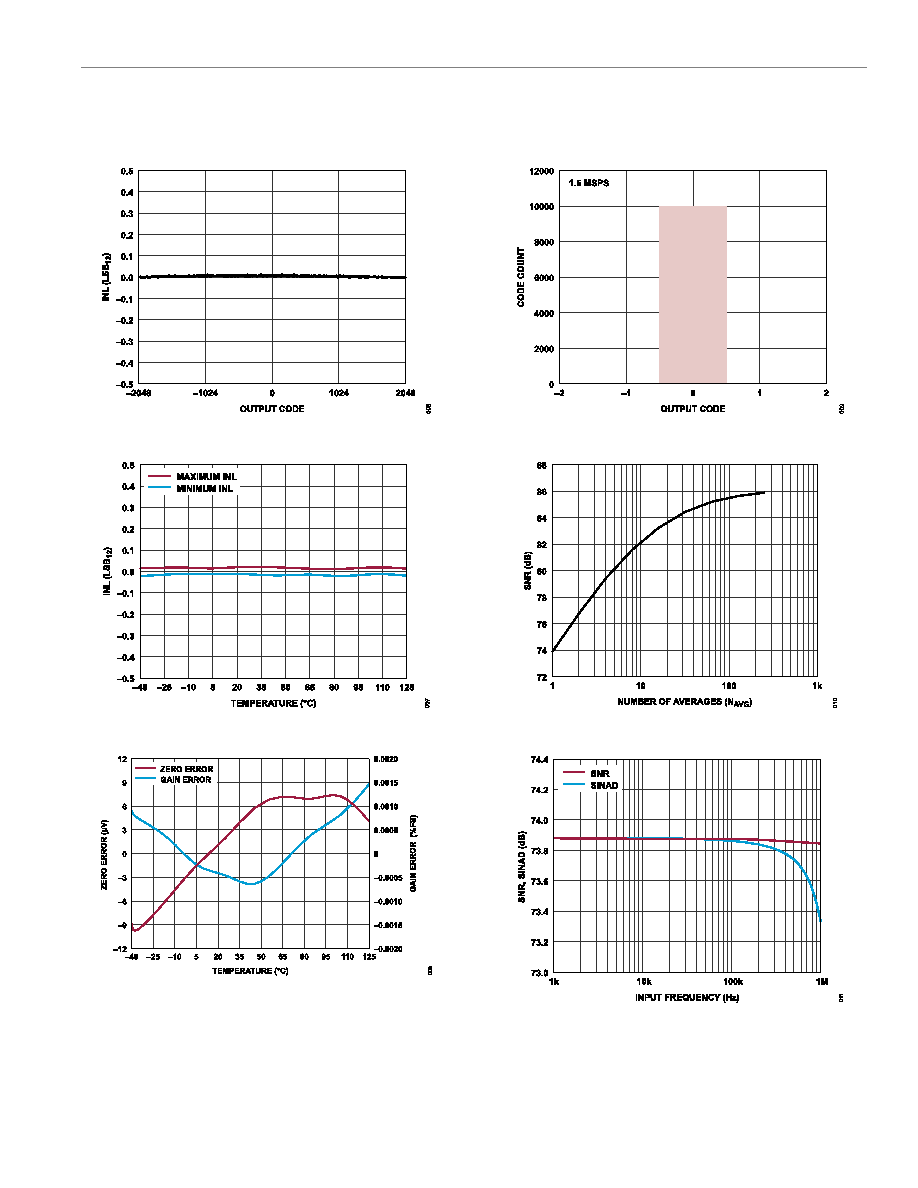

Figure 6. INL vs. Output Code
Figure 7. INL vs. Temperature
Figure 8. Zero Error and Gain Error vs. Temperature
Figure 9. Histogram, Sample Mode (No Averaging)
Figure 10. SNR vs. Number of Averages
Figure 11. SNR, SINAD vs. Input Frequency
