STTH3003 Arkusz danych(PDF) 4 Page - STMicroelectronics

Numer części STTH3003
Szczegółowy opis  HIGH FREQUENCY SECONDARY RECTIFIER
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Producent  STMICROELECTRONICS [STMicroelectronics]
Strona internetowa  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STTH3003 Arkusz danych(HTML) 4 Page - STMicroelectronics

  STTH3003 Datasheet HTML 1Page - STMicroelectronics STTH3003 Datasheet HTML 2Page - STMicroelectronics STTH3003 Datasheet HTML 3Page - STMicroelectronics STTH3003 Datasheet HTML 4Page - STMicroelectronics STTH3003 Datasheet HTML 5Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out
 4 / 5 page
background image
25
50
75
100
125
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
Tj(°C)
IRM
S factor

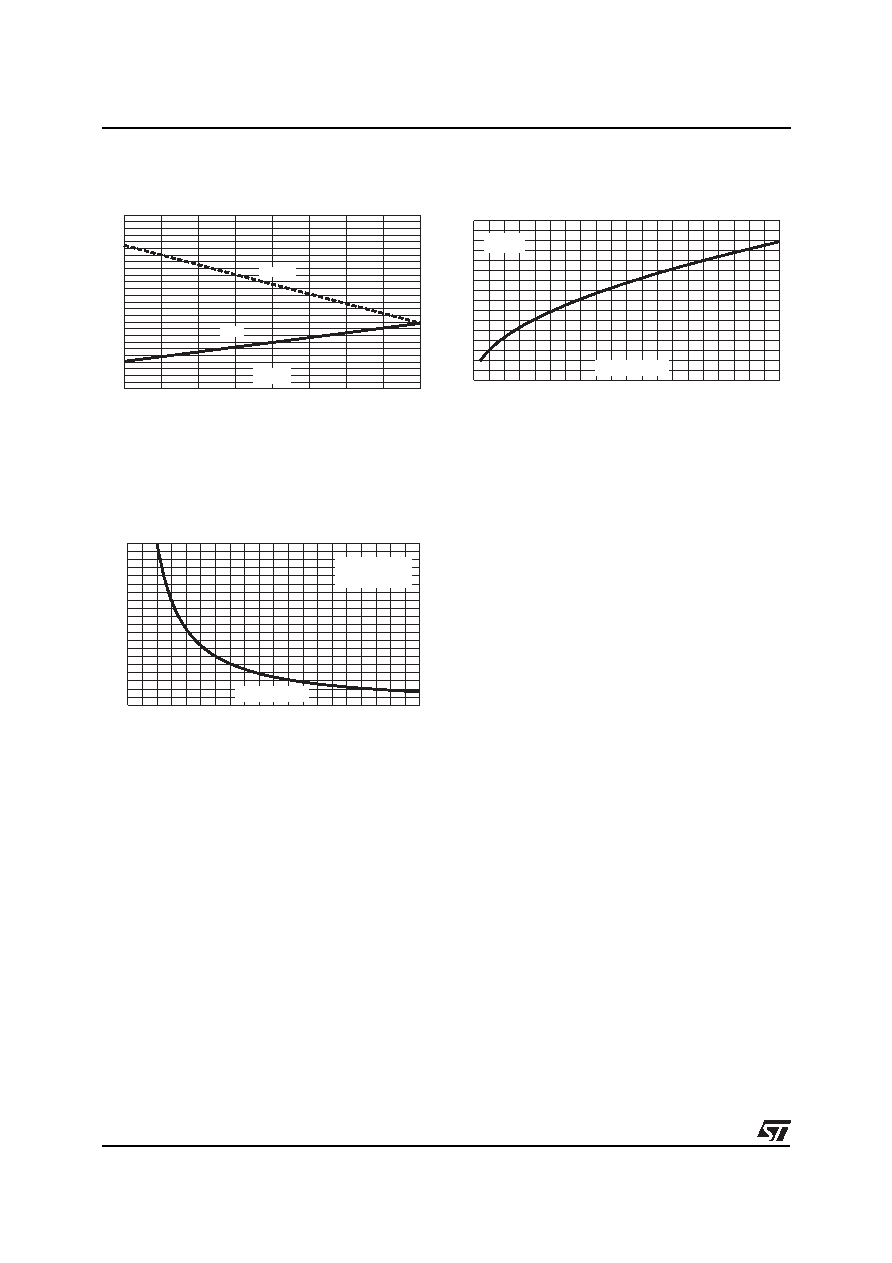

Fig. 7: Relative variation of dynamic parameters
versus junction temperature (reference: Tj = 125°C).
0
50
100 150 200 250 300 350 400 450 500
0
1
2
3
4
5
6
7
8
VFP(V)
IF=IF(av)
Tj=125°C
dIF/dt(A/µs)
Fig. 8: Transient peak forward voltage versus
dIF/dt (90% confidence, per diode).
0
50
100 150 200 250 300 350 400 450 500
0
50
100
150
200
250
300
350
400
450
500
tfr(ns)
VFR=1.1*VF max.
IF=IF(av)
Tj=125°C
dIF/dt(A/µs)
Fig. 9: Forward recovery time versus dIF/dt (90%
confidence, per diode).
STTH3003CW
4/5
