Section 2 CPU

Rev.1.00 Jun. 07, 2006 Page 26 of 1102

REJ09B0294-0100

2.2.3

Advanced Mode

The data area is extended to 4 Gbytes as compared with that in middle mode.

• Address Space

The maximum address space of 4 Gbytes can be linearly accessed. For individual areas, up to

16 Mbytes of the program area and up to 4 Gbytes of the data area can be allocated.

• Extended Registers (En)

The extended registers (E0 to E7) can be used as 16-bit registers, or as the upper 16-bit

segments of 32-bit registers or address registers.

• Instruction Set

All instructions and addressing modes can be used.

• Exception Vector Table and Memory Indirect Branch Addresses

In advanced mode, the top area starting at H'00000000 is allocated to the exception vector

table. One branch address is stored per 32 bits. The upper eight bits are ignored and the lower

24 bits are stored. The structure of the exception vector table is shown in figure 2.4.

H'00000000

H'00000003

H'00000004

Exception vector table

Reserved

Reset exception vector

Reserved

H'00000007

H'00000001

H'00000002

H'00000005

H'00000006

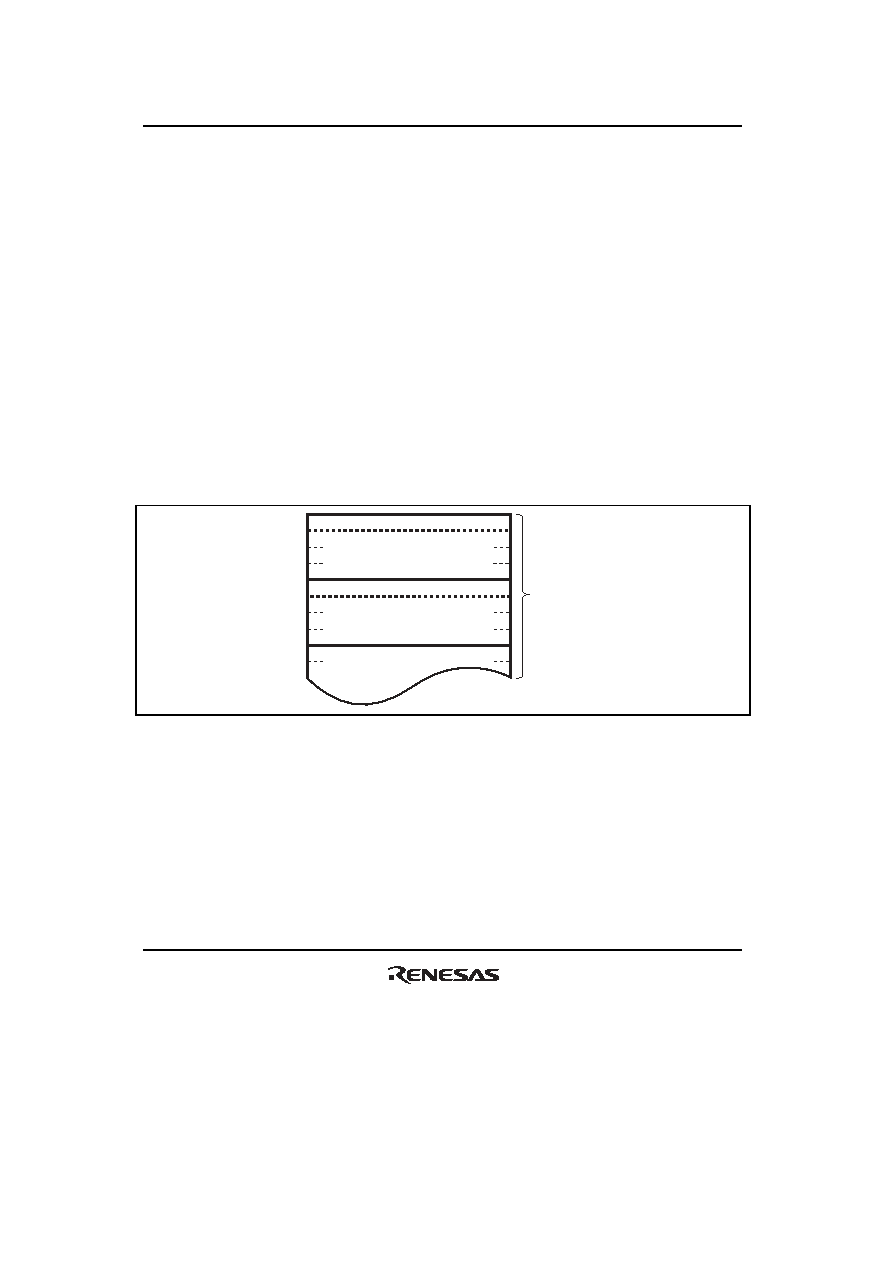

Figure 2.4 Exception Vector Table (Middle and Advanced Modes)

The memory indirect (@@aa:8) and extended memory indirect (@@vec:7) addressing modes

are used in the JMP and JSR instructions. An 8-bit absolute address included in the instruction

code specifies a memory location. Execution branches to the contents of the memory location.

In advanced mode, an operand is a 32-bit (longword) operand, providing a 32-bit branch

address. The upper eight bits are reserved and assumed to be H'00.
