Section 6 Bus Controller (BSC)
Rev.1.00 Jun. 07, 2006 Page 252 of 1102
REJ09B0294-0100
(1) When DDS = 1
A fast-page access is performed regardless of the bus master, only according to the address. The
DACK signal is asserted at the start of the Tc1 cycle.

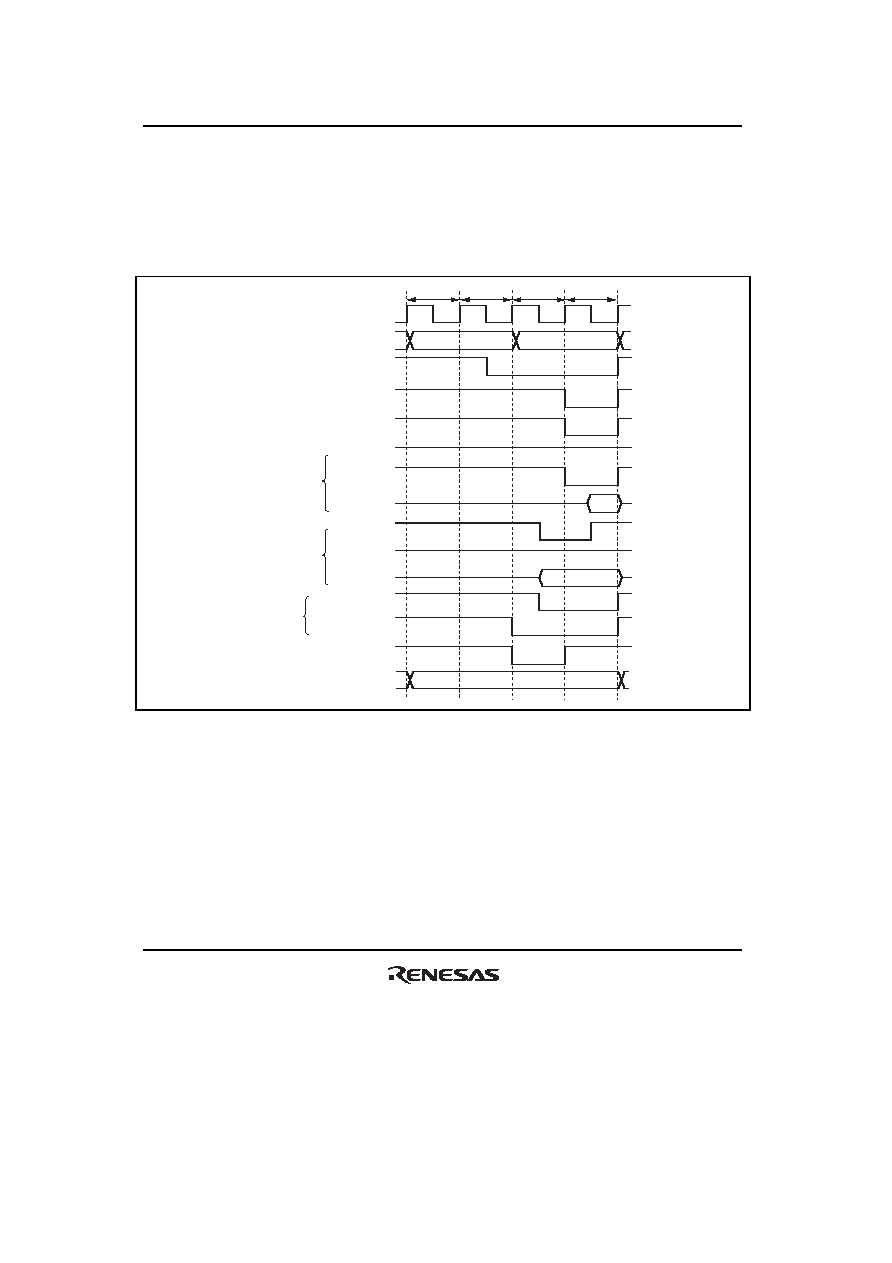

Figure 6.58 shows the output timing example of the
DACK signal.
T
p
T
r
T
c1
T
c2
Address bus
B
φ
RAS
LUCAS
LLCAS
WE
OE (RD)
WE
OE (RD)
Data bus
High
Row address
Column address
High
Read
Write
Data bus
DACK
BS
RD/
WR
When DKC = 1
When DKC = 0
Figure 6.58 Output Timing Example of
DACK when DDS = 1 (RAST = 0, CAST = 0)
