LM4908, LM4908LQBD
SNAS218C – NOVEMBER 2003 – REVISED MAY 2013
www.ti.com

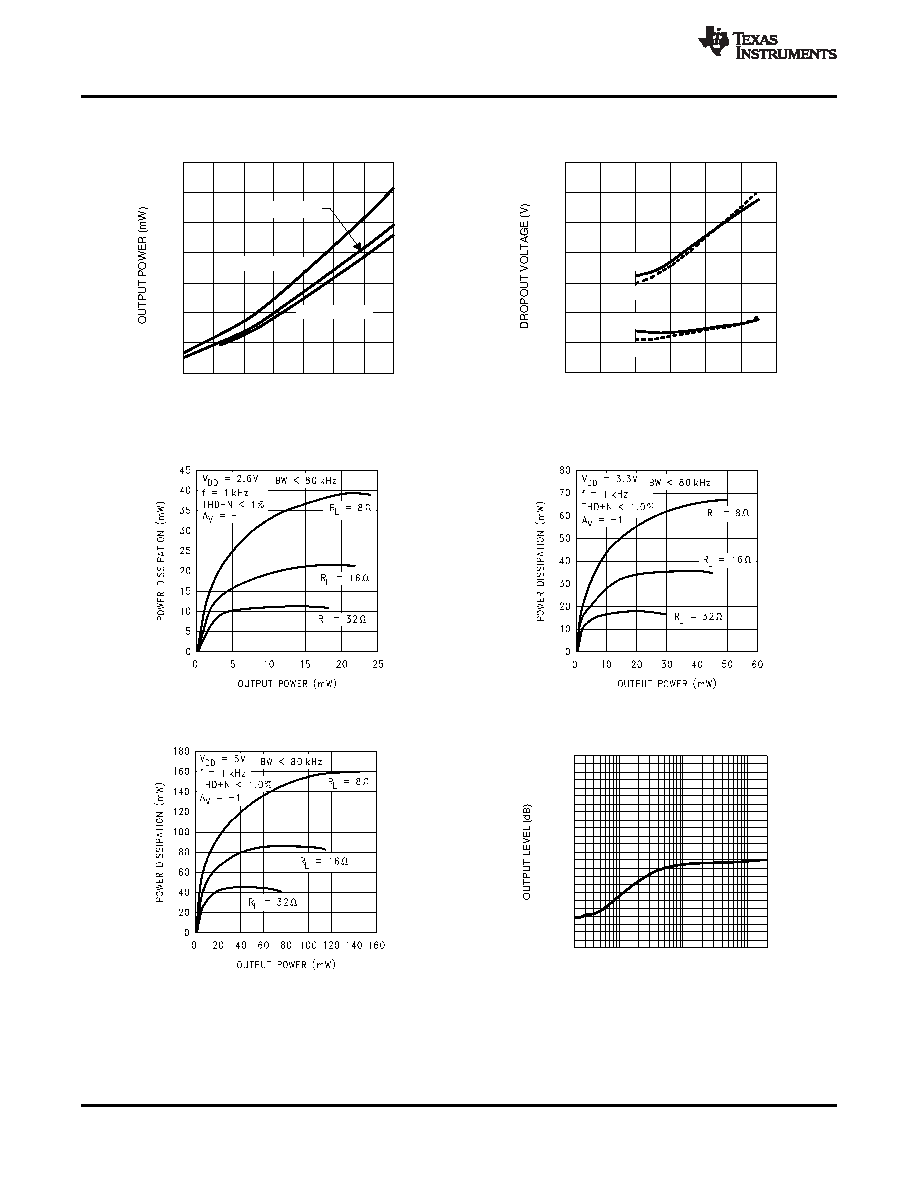

TYPICAL PERFORMANCE CHARACTERISTICS (continued)
Output Power vs Supply Voltage
RL = 32Ω, f = 1kHz
Clipping Voltage vs Supply Voltage
Figure 28.
Figure 29.
Power Dissipation vs Output Power
Power Dissipation vs Output Power
Figure 30.
Figure 31.
Crosstalk vs Frequency
Power Dissipation vs Output Power
VDD = 5V, RL = 8Ω
Figure 32.
Figure 33.
10
Submit Documentation Feedback
Copyright © 2003–2013, Texas Instruments Incorporated
Product Folder Links: LM4908 LM4908LQBD
