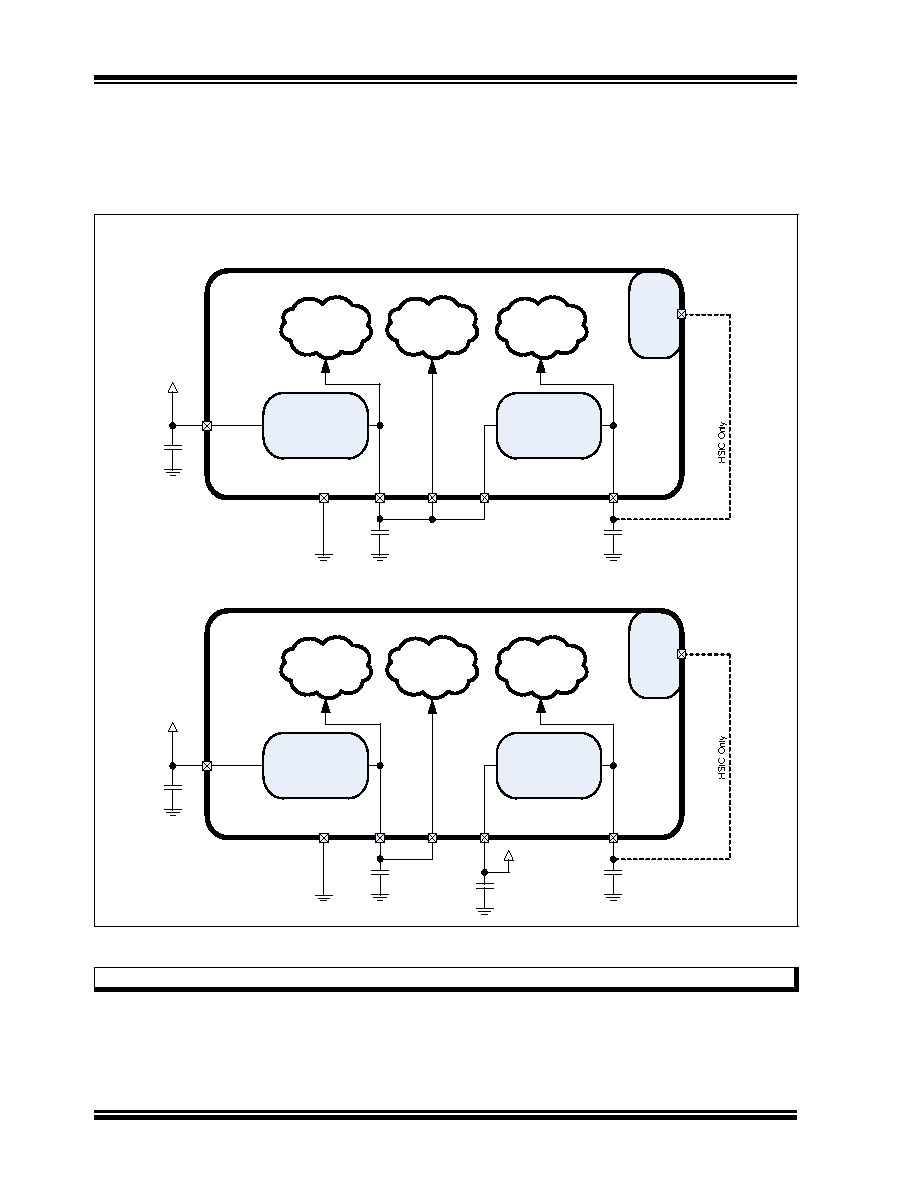

22 / 61 page  USB84604 DS60001295C-page 22 2014-2016 Microchip Technology Inc. 4.3 Power Connection Diagrams Figure 4-1 illustrates the power connections for the USB84604 with various power supply configurations. FIGURE 4-1: POWER CONNECTIONS Note: To achieve the lowest power possible, tie the VDD12 pin to VDDCR12. HSIC 3.3 V Regulator (IN) (OUT) VBAT VBAT Supply 1.2 V Core Logic 3.3 V I/O USB84604 Single Supply Application 1.2 V Regulator (IN) (OUT) 3.3 V Internal Logic VDDA33 (3x) 1.0 µF VDDCOREREG VDDCR12 1.0 µF VSS HSIC 3.3 V Regulator (IN) (OUT) VBAT VBAT Supply 1.2 V Core Logic 3.3 V I/O USB84604 Dual Supply Application 1.2 V Regulator (IN) (OUT) 3.3 V Internal Logic 1.0 µF VDDCOREREG VDDCR12 1.0 µF +1.8 V Supply VDD33 (2x) VDDA33 (3x) VDD33 (2x) VDD12 VDD12 4.7 µF VSS 4.7 µF 4.7 µF |
|
