USB84604
DS60001295C-page 52
 2014-2016 Microchip Technology Inc.
10.0 PACKAGE OUTLINE
FIGURE 10-1:

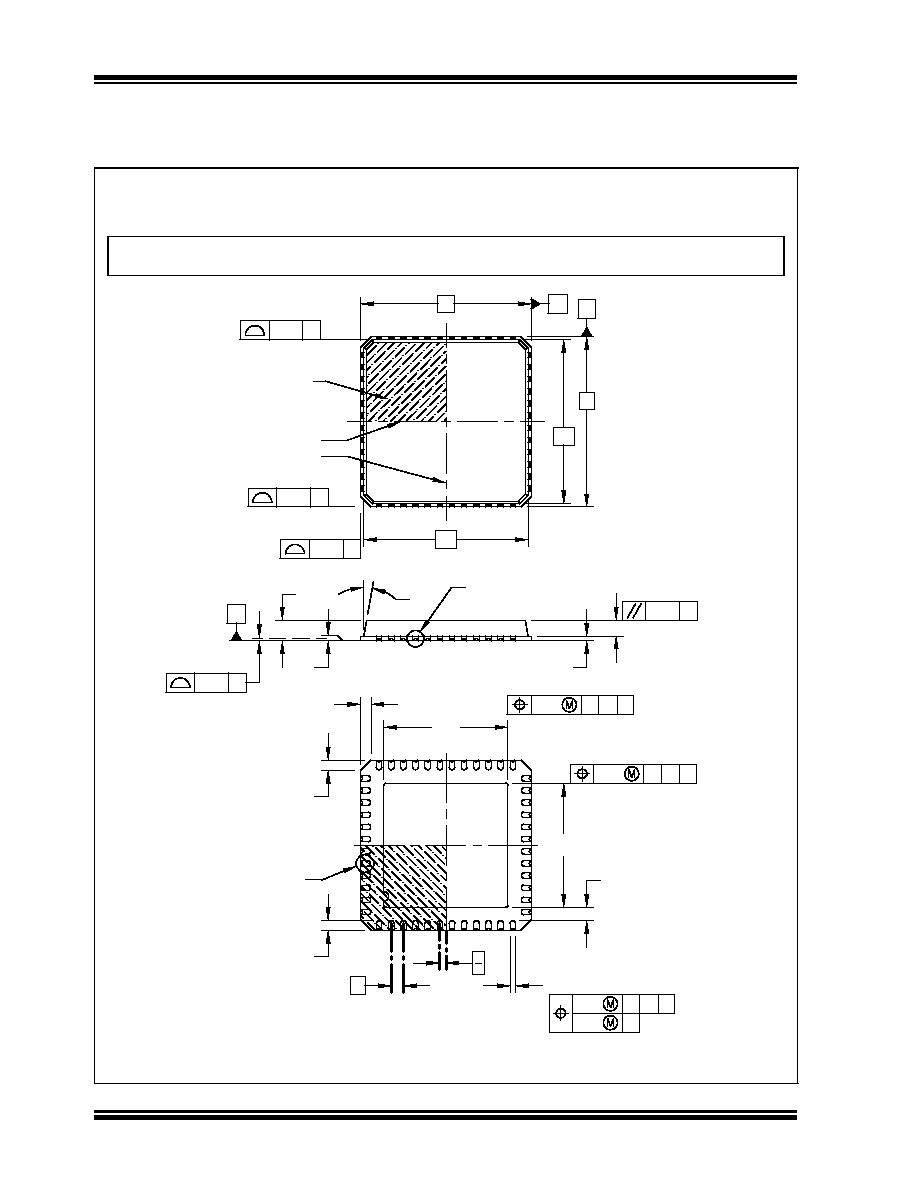

USB84604 48-PIN QFN PACKAGE DRAWING
B
A
0.10 C
0.10 C
0.10
C A B
0.05
C
(DATUM B)
(DATUM A)
C
SEATING
PLANE
1
2
N
2X
TOP VIEW
SIDE VIEW
Microchip Technology Drawing C04-363A Sheet 1 of 2
For the most current package drawings, please see the Microchip Packaging Specification located at
http://www.microchip.com/packaging
Note:
NOTE 1
1
2
N
0.10 C
0.08 C
BOTTOM VIEW
0.10
C A B
A1
A
A2
2X
0.10 C
4X
SEE DETAIL B
4X P
4X P
48X L
SEE DETAIL A
0.10
C A B
48-Lead Plastic Quad Flat, No Lead Package (5E) - 7x7 mm Body [QFN]
With 5.1x5.1 mm Exposed Pad; Punch Singulated, 0.40 mm Dimpled Terminals
D
E1
E
D1
48X
48X b
e
e
2
D2
E2
NX K
(A3)
