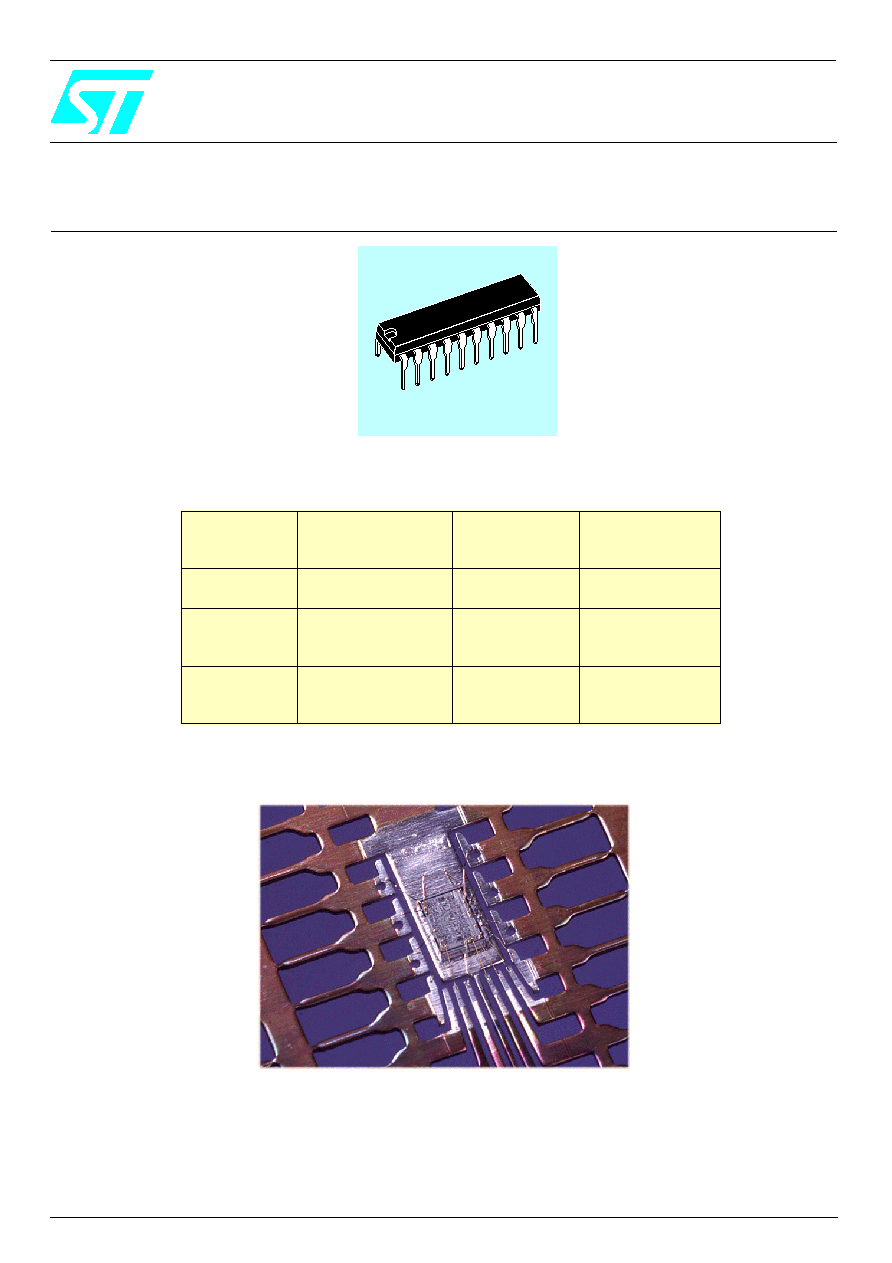

Thermal Data

DIP 20

item #

material

thickness

thermal

conductivity

leadframe

copper

0.25 mm

2.61 W/cm°C

die attach

epoxy glue

( silver glue )

10-40 µm

0.01 W/cm°C

molding

compound

epoxy resin

3 mm

0.0063W/cm°C

PACKAGE MATERIAL LIST

Typical assembly configuration before molding :

Charts enclosed :

1) Rth(j-a) vs power dissipation

2) Zth(j-a) vs time width and die size

February 1998

1/2

20 leads

®
