ADL5205
Data Sheet
Rev. 0 | Page 22 of 31
EVALUATION BOARD
OVERVIEW
The ADL5205-EVALZ evaluation board allows the manual
control of the ADL5205 device through the serial and the
parallel interface ports, as well as the control of the device
through the USB port on a Microsoft® Windows® PC via the
system demonstration platform (SDP) interface board. A 3.3 V
low dropout (LDO) voltage regulator supplies the logic circuits
when the device is running on a 5 V supply.
On-board baluns convert single-ended input signals to differential
form for input to the device and convert the differential output
signals of the device to single-ended form for output. To bypass
these baluns, rearrange the 0 Ω resistors on the board as described
in the Signal Inputs and Outputs section.
The ADL5205-EVALZ provides all of the support circuitry
required to operate the ADL5205 in its various modes and
configurations. Figure 62 shows the typical bench setup used to
evaluate the performance of the ADL5205.
POWER SUPPLY INTERFACE
The ADL5205-EVALZ evaluation board requires either a 3.3 V
or 5 V power supply, and an optional negative supply to pull
down the output common-mode dc level to match the ADCs
that require a lower common-mode level. If an external 3.3 V
supply is used, connect it to the test point labeled 3P3V. If a 5 V
supply is used, connect it to the test point labeled 5V. Similarly, if an
external negative supply is used, connect it to the VNEG test point
shown in Figure 62.
ADL5205
CHANNEL B
INPUTS
CHANNEL B
CONTROLS
CHANNEL A
INPUTS
CHANNEL A
OUTPUTS
SUPPLY
CLUSTER
5V
VNEG
3.3V
CHANNEL B
OUTPUTS
CHANNEL A
CONTROLS
MODE
SWITCHES
PARALLEL
INTERFACE
SDP
INTERFACE
SERIAL
INTERFACE

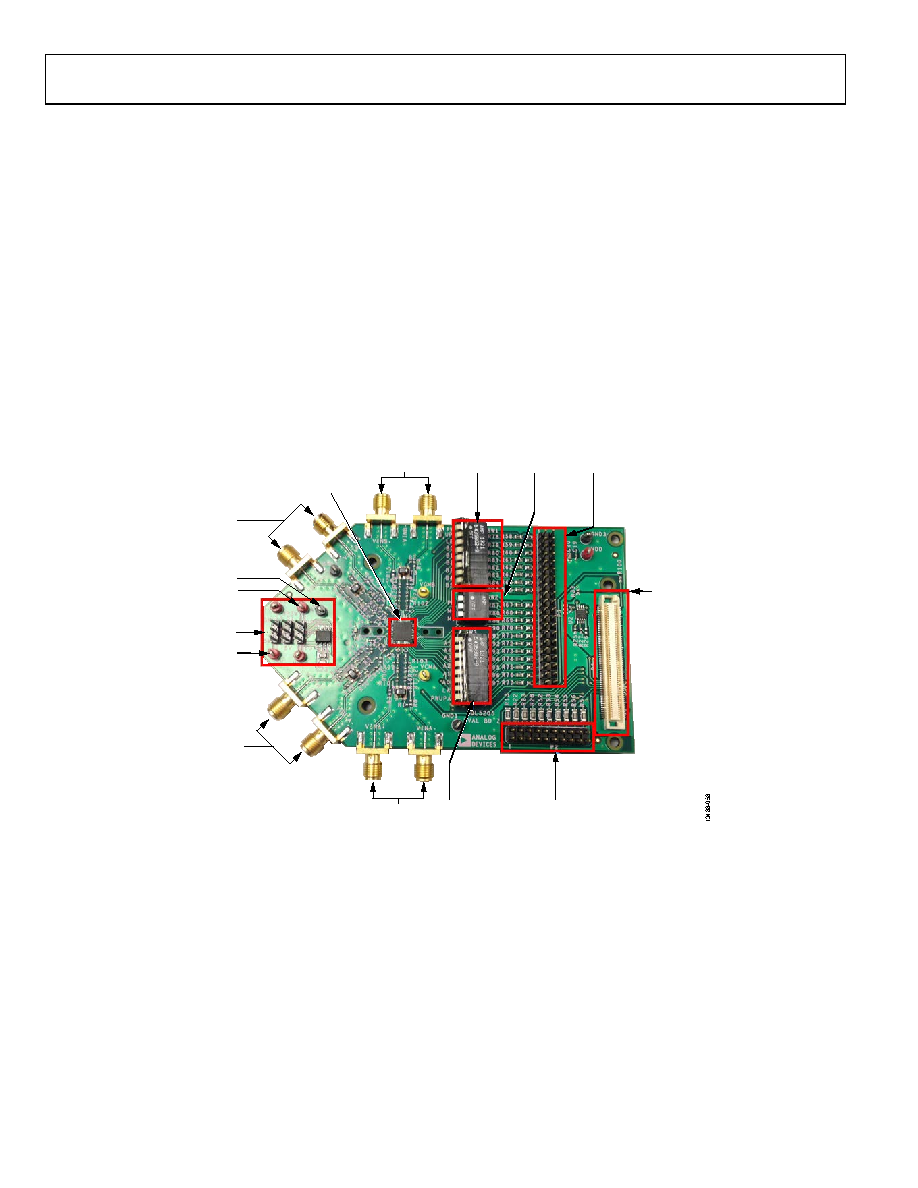

Figure 62. ADL5205-EVALZ Evaluation Board
