FT260Q-R datasheet(36/61 Pages) FTDI

Zakładka z wyszukiwarką danych komponentów

FT260Q-R Arkusz danych(PDF) 36 Page - Future Technology Devices International Ltd.

Numer części	FT260Q-R

Szczegółowy opis	HID-class USB to UART/I2C Bridge IC

PDF	61 Pages

Scroll/Zoom	100%

Producent	FTDI [Future Technology Devices International Ltd.]

Strona internetowa	http://www.ftdichip.com

Logo

36 / 61 page

FT260 HID-CLASS USB TO UART/I2C BRIDGE IC

Version 1.1

Document No.: FT_001272 Clearance No.: FTDI#484

7.3

Self Powered Configuration with 3.3V Source In

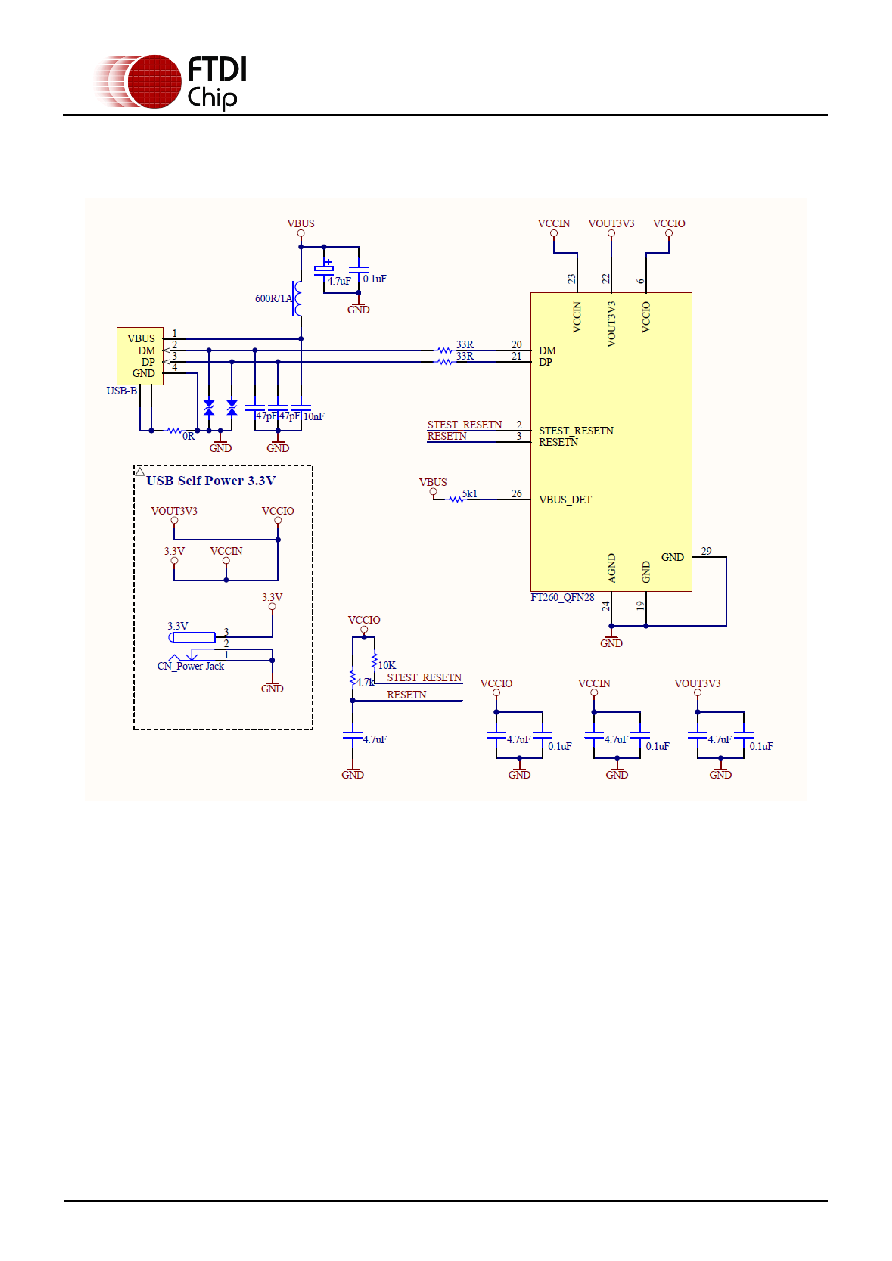

Figure 7.3 Self Powered Configuration with 3.3V Source Input

Figure 7.3 illustrates the FT260 in a typical USB self-powered configuration similar to Figure 7.2. The

difference here is that the self-power source is 3.3V. If using 3.3V as the power source in, remember to

connect it to VOUT3V3 to supply an operating voltage for USB signalling in the FT260.
