FT260 HID-CLASS USB TO UART/I2C BRIDGE IC

Version 1.1

Document No.: FT_001272 Clearance No.: FTDI#484

7.6

Power for Programming eFUSE

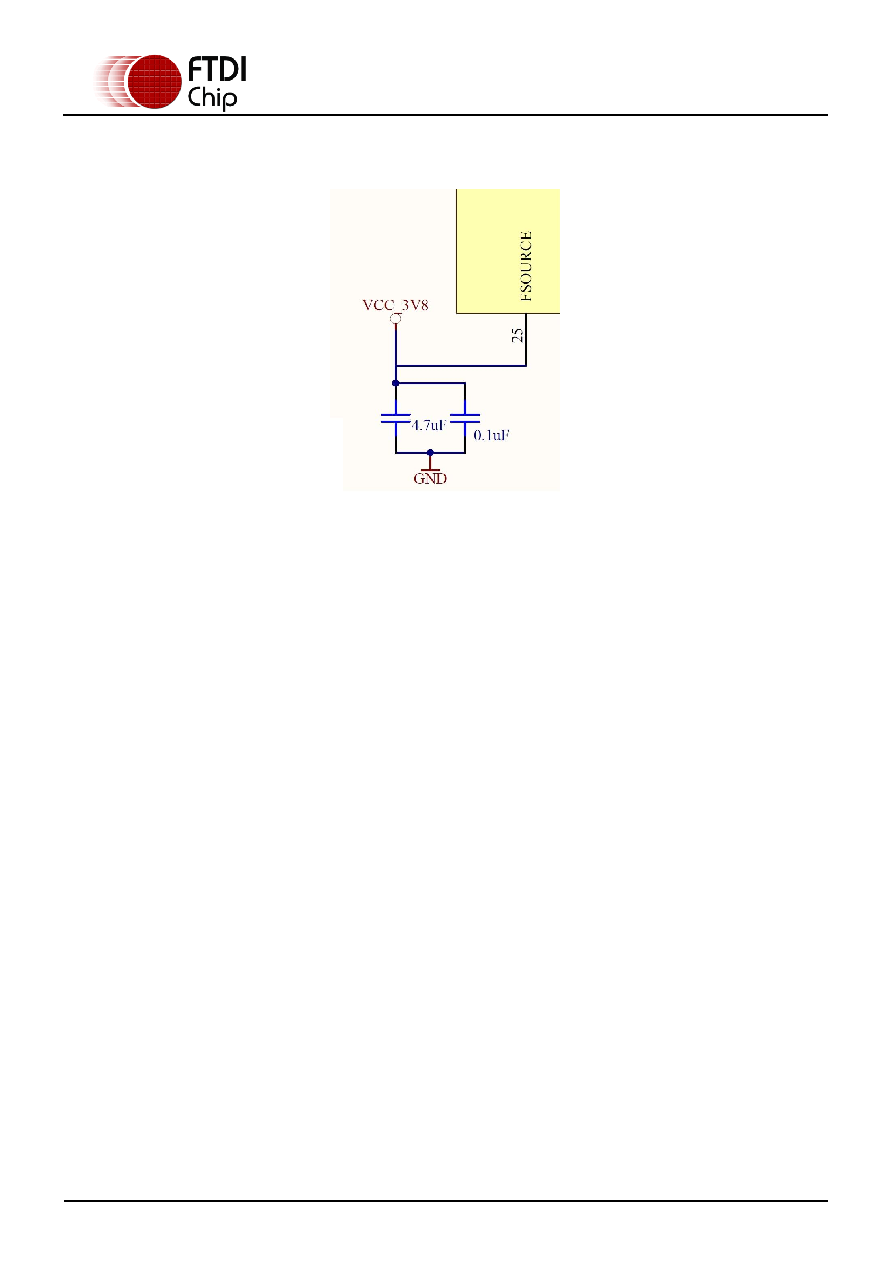

Figure 7.6 FSOURCE for eFUSE

When the FT260 is in normal operation without programming the eFUSE, the FSOURCE pin can be left

floating. If the programming mechanism is required in the system, a power source with 3.8V should be

applied. Figure 7.6 shows the related components for FSOURCE.

The programmer module, UMFTPD3A, which is developed by FTDI, can supply the power source for

FSOURCE. With the programming utility FT_PROG, it can control the programming procedure and timing

to the embedded eFUSE in the FT260. Users can easily set the vendor specifying parameters which are

defined in eFUSE for customizing the FT260.
