STEVAL-CCA036V1

Demonstration board for single channel op-amp in SO8 package

Data brief

Features

• This demonstration board with its components

allow it to be configured as:

– Low-pass Sallen-Key circuit

– High-pass Sallen-Key circuit

– Differential amplifier

– AC-coupled circuit

– In-loop compensation circuit

– Out-of-loop compensation circuit

– Numerous other possible configurations

not described here

• RoHS compliant

Description

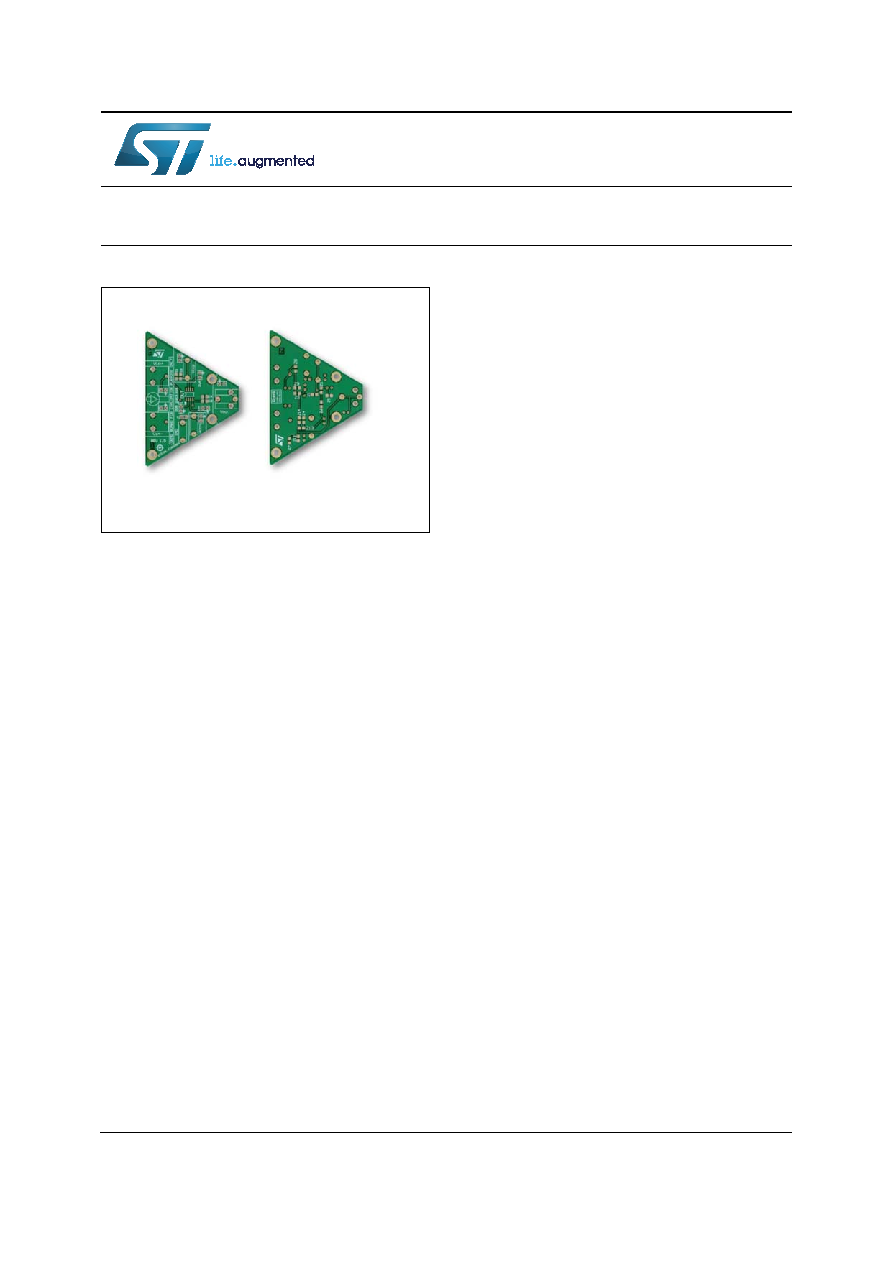

The STEVAL-CCA036V1 demonstration board is

designed to help characterize single operational

amplifiers in SO8 packages.

With this board, the most common op-amp based

circuits can be achieved.

The board is designed for surface-mounted

components and can be used to perform onboard

characterization prior to the integration of

STMicroelectronics’ products in your designs.

Resistor and capacitor footprints are implemented

for the 0805 series. A set of two decoupling

capacitors have been implemented on both power

supply pins so as to benefit from the maximum

performances of ST products. In order to reject a

wide range of frequencies, 10 nF and 4.7 µF are

good values for these capacitors.
