Package mechanical data

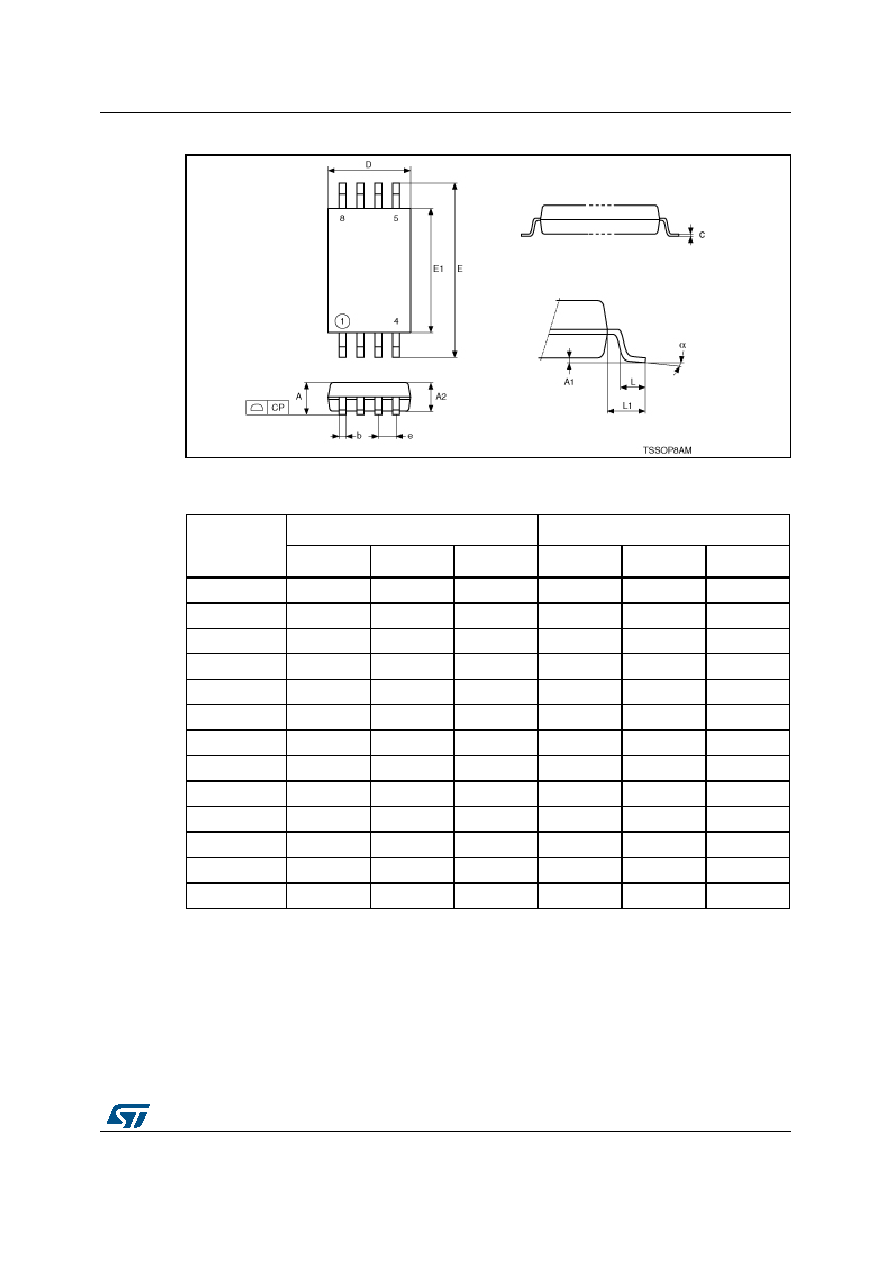

Figure 17. TSSOP8 – 8-lead thin shrink small outline, package outline

1. Drawing is not to scale.

Table 22. TSSOP8 – 8-lead thin shrink small outline, package mechanical data

Symbol

millimeters

inches(1)

1. Values in inches are converted from mm and rounded to four decimal digits.

Typ.

Min.

Max.

Typ.

Min.

Max.

–

1.200

–

0.0472

–

0.050

0.150

–

0.0020

0.0059

1.000

0.800

1.050

0.0394

0.0315

0.0413

–

0.190

0.300

–

0.0075

0.0118

–

0.090

0.200

–

0.0035

0.0079

–

0.100

–

0.0039

3.000

2.900

3.100

0.1181

0.1142

0.1220

0.650

–

0.0256

–

6.400

6.200

6.600

0.2520

0.2441

0.2598

4.400

4.300

4.500

0.1732

0.1693

0.1772

0.600

0.450

0.750

0.0236

0.0177

0.0295

1.000

–

0.0394

–

0°

8°

–

0°

8°
