DocID4578 Rev 24

37/42

M24C32-W M24C32-R M24C32-F M24C32-X M24C32-DF

Package mechanical data

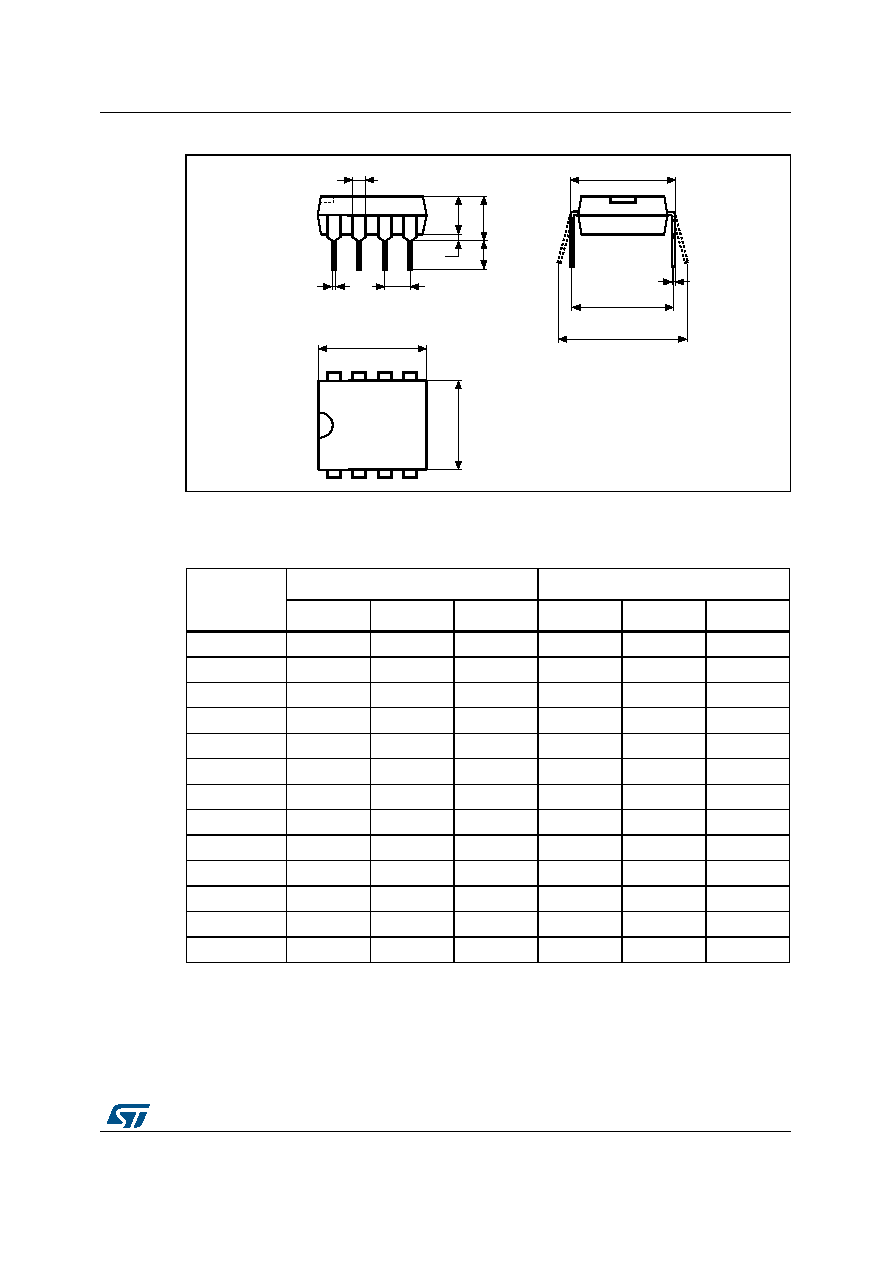

Figure 19. PDIP8 – 8-pin plastic DIP, 0.25 mm lead frame, package outline

1. Drawing is not to scale.

2. Not recommended for new designs.

Table 24. PDIP8 – 8-pin plastic DIP, 0.25 mm lead frame, package mechanical data

Symbol

millimeters

inches(1)

1. Values in inches are converted from mm and rounded to four decimal digits.

Typ.

Min.

Max.

Typ.

Min.

Max.

–

5.33

–

0.2098

–

0.38

–

0.0150

–

3.30

2.92

4.95

0.1299

0.1150

0.1949

0.46

0.36

0.56

0.0181

0.0142

0.0220

1.52

1.14

1.78

0.0598

0.0449

0.0701

0.25

0.20

0.36

0.0098

0.0079

0.0142

9.27

9.02

10.16

0.3650

0.3551

0.4000

7.87

7.62

8.26

0.3098

0.3000

0.3252

6.35

6.10

7.11

0.2500

0.2402

0.2799

2.54

–

0.1000

–

7.62

–

0.3000

–

10.92

–

0.4299

3.30

2.92

3.81

0.1299

0.1150

0.1500
