AR0134_DS Rev. G Pub. 6/15 EN

©Semiconductor Components Industries, LLC,2015.

AR0134: 1/3-Inch 1.2 Mp CMOS Digital Image Sensor

Two-Wire Serial Register Interface

Sequential WRITE, Start at Random Location

This sequence (Figure 13) starts in the same way as the single WRITE to random location

(Figure 12). Instead of generating a no-acknowledge bit after the first byte of data has

been transferred, the master generates an acknowledge bit and continues to perform

byte WRITEs until “L” bytes have been written. The WRITE is terminated by the master

generating a stop condition.

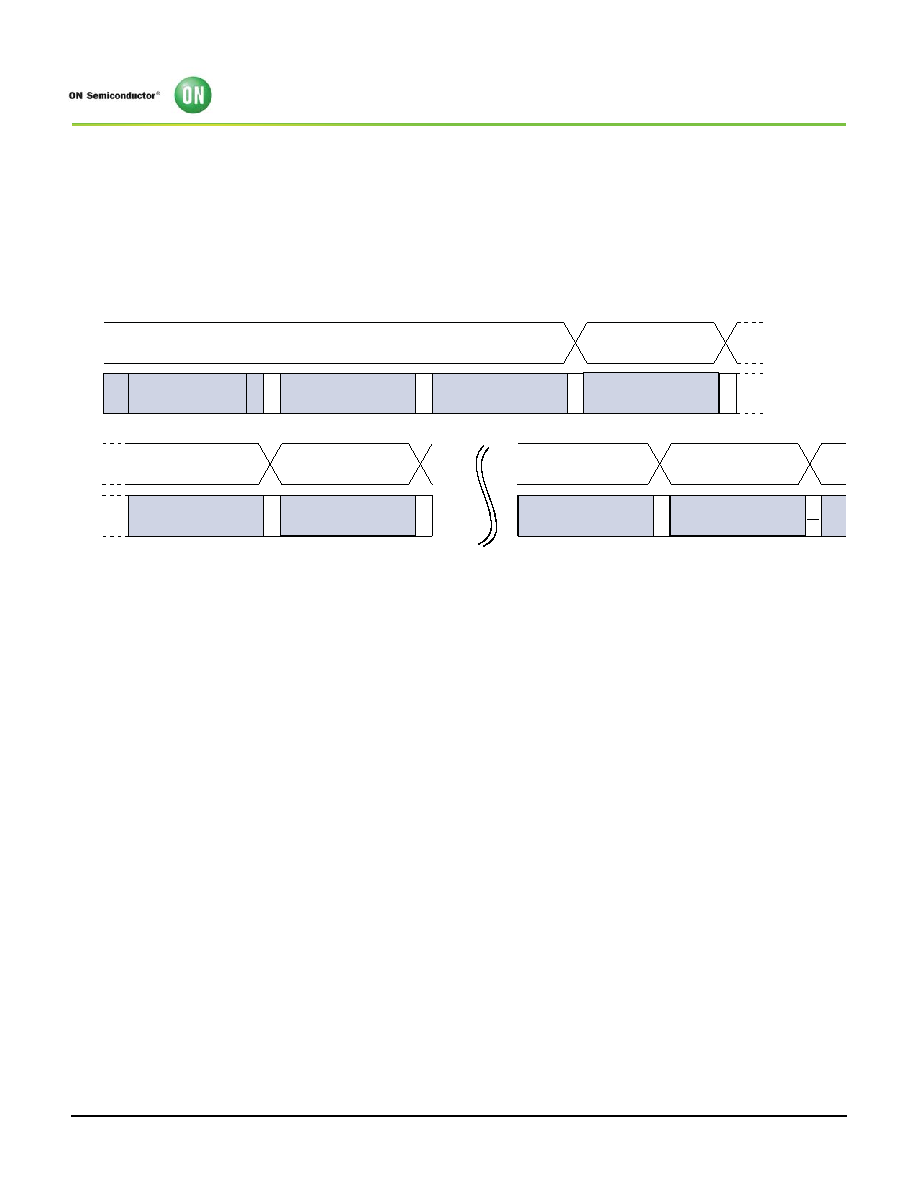

Figure 13:

Sequential WRITE, Start at Random Location

Slave Address

A Reg Address[15:8]

Reg Address[7:0]

Previous Reg Address, N

Reg Address, M

M+1

M+2

M+1

M+3

M+L-2

M+L-1

M+L

Write Data
