S and Noise Parameter Measurements

The position of the reference

planes used for the measurement

of both S and Noise Parameter

measurements is shown in Figure

23. The reference plane can be

described as being at the center

of both the gate and drain pads.

S and noise parameters are

measured with a 50 ohm

microstrip test fixture made with

a 0.010" thickness aluminum

substrate. Both source pads are

connected directly to ground via

a 0.010" thickness metal rib

which provides a very low

inductance path to ground for

both source pads. The inductance

associated with the addition of

printed circuit board plated

through holes and source bypass

capacitors must be added to the

computer circuit simulation to

properly model the effect of

grounding the source leads in a

typical amplifier design.

Gate

Pin 2

Source

Pin 3

Drain

Pin 4

Source

Pin 1

Reference

Plane

Microstrip

Transmission Lines

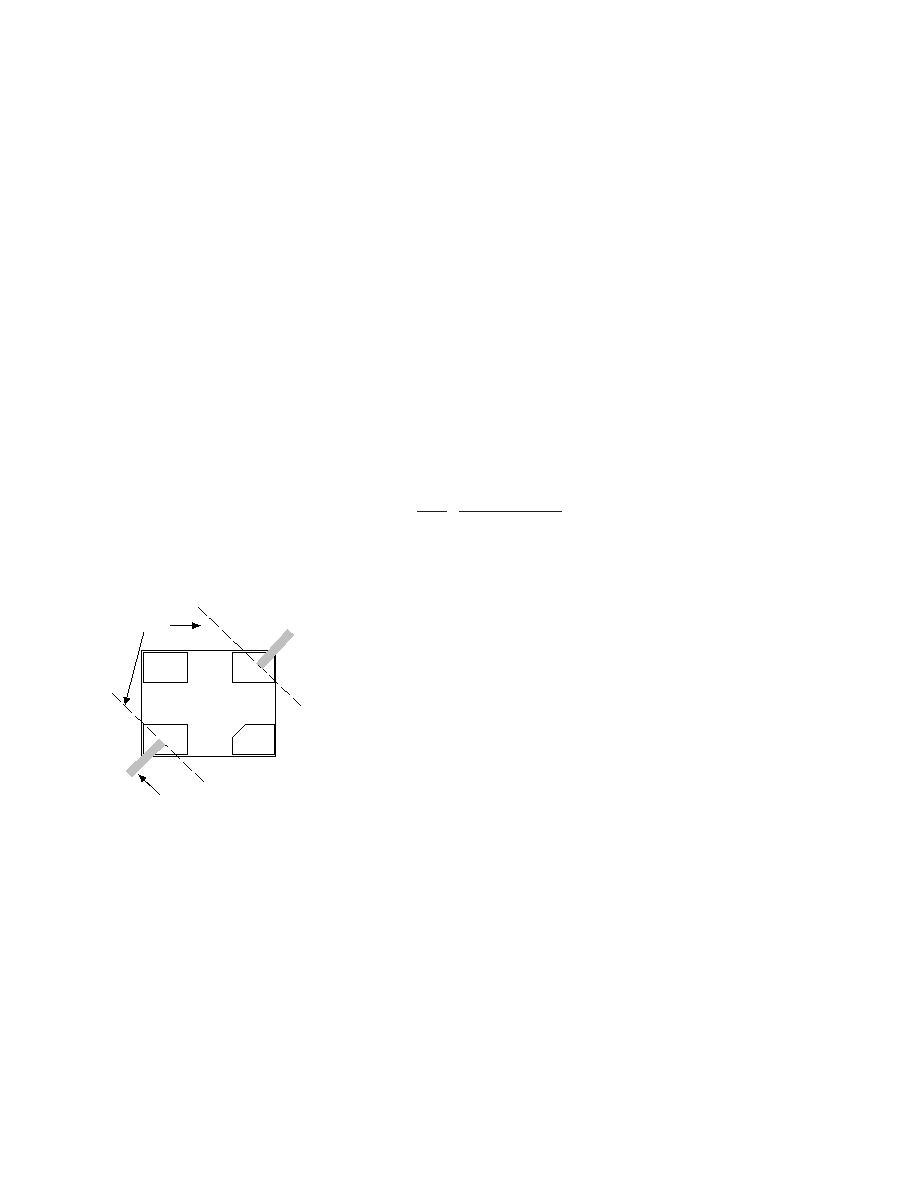

Figure 23. Position of the Reference Planes.

Noise Parameter Applications

Information

The Fmin values are based on a

set of 16 noise figure measure-

ments made at 16 different

impedances using an ATN NP5

test system. From these measure-

ments, a true Fmin is calculated.

Fmin represents the true mini-

mum noise figure of the device

when the device is presented

with an impedance matching

network that transforms the

source impedance, typically 50

Ω,

to an impedance represented by

the reflection coefficient

o. The

designer must design a matching

network that will present

o to

the device with minimal associ-

ated circuit losses. The noise

figure of the completed amplifier

is equal to the noise figure of the

device plus the losses of the

matching network preceding the

device. The noise figure of the

device is equal to Fmin only

when the device is presented

with

o. If the reflection coeffi-

cient of the matching network is

other than

o, then the noise

figure of the device will be

greater than Fmin based on the

following equation.

NF = Fmin + 4 Rn

s – Γo |

Zo (|1 +

2)(1 - |

Where Rn/Zo is the normalized

noise resistance,

o is the opti-

mum reflection coefficient

required to produce Fmin and

is the reflection coefficient of the

source impedance actually

presented to the device.

The losses of the matching

networks are non-zero and they

will also add to the noise figure

of the device creating a higher

amplifier noise figure. The losses

of the matching networks are

related to the Q of the compo-

nents and associated printed

circuit board loss.

o is typically

fairly low at higher frequencies

and increases as frequency is

lowered. Larger gate width

devices will typically have a

lower

o as compared to nar-

rower gate width devices. Typi-

cally for FETs, the higher

usually infers that an impedance

much higher than 50

Ω is re-

quired for the device to produce

Fmin. At VHF frequencies and

even lower L Band frequencies,

the required impedance can be in

the vicinity of several thousand

ohms. Matching to such a high

impedance requires very hi-Q

components in order to minimize

circuit losses. As an example at

900 MHz, when air wound coils

(Q>100)are used for matching

networks, the loss can still be up

to 0.25 dB which will add di-

rectly to the noise figure of the

device. Using multilayer molded

inductors with Qs in the 30 to 50

range results in additional loss

over the air wound coil. Losses as

high as 0.5 dB or greater add to

the typical 0.15 dB Fmin of the

device creating an amplifier

noise figure of nearly 0.65 dB.

SMT Assembly

The package can be soldered

using either lead-bearing or lead-

free alloys (higher peak tempera-

tures). Reliable assembly of

surface mount components is a

complex process that involves

many material, process, and

equipment factors, including:

method of heating (e.g. IR or

vapor phase reflow, wave solder-

ing, etc) circuit board material,

conductor thickness and pattern,

type of solder alloy, and the

thermal conductivity and thermal

mass of components. Components

with a low mass, such as the

Minipak 1412 package, will reach

solder reflow temperatures faster

than those with a greater mass.

The recommended leaded solder

time-temperature profile is

shown in Figure 24. This profile

is representative of an IR reflow

type of surface mount assembly

process. After ramping up from

room temperature, the circuit

board with components attached

to it (held in place with solder

paste) passes through one or

more preheat zones. The preheat

zones increase the temperature

of the board and components to

prevent thermal shock and begin
