IL30 datasheet(7/10 Pages) VISHAY

Numer części	IL30

Szczegółowy opis	Optocoupler, Photodarlington Output, (Single, Dual, Quad Channel)

PDF	10 Pages

Scroll/Zoom	100%

Producent	VISHAY [Vishay Siliconix]

Strona internetowa	http://www.vishay.com

Logo

7 / 10 page

IL30, ILD55, ILQ30, ILQ31, ILQ55

www.vishay.com

Vishay Semiconductors

Rev. 1.8, 28-Jul-14

Document Number: 83621

For technical questions, contact: optocoupleranswers@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

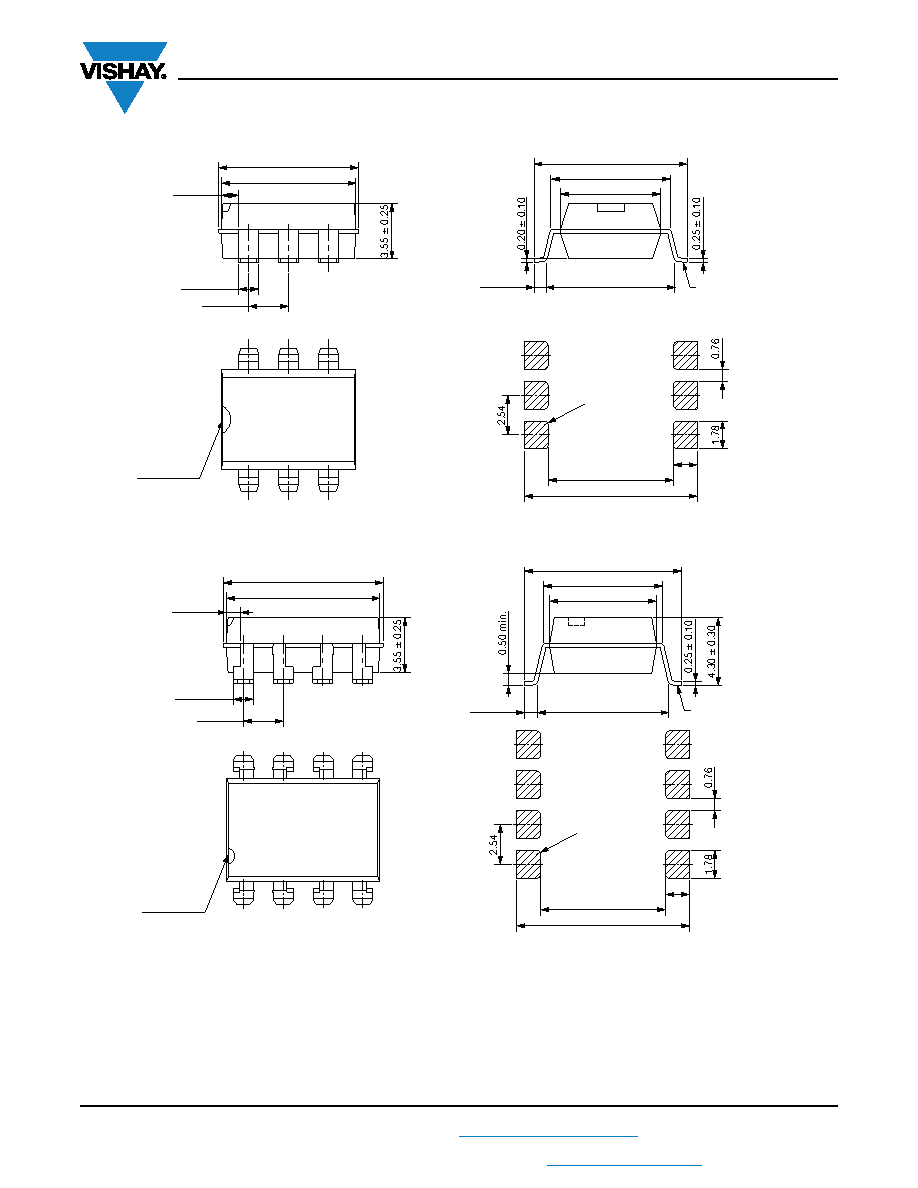

SMD-6, Option 9

SMD-8, Option 7

1.52

11.05

8.00 min.

R0.25

Leads coplanarity

0.1 max.

0.50 min.

8.00 min.

10.05 max.

6.50 ± 0.25

7.62 typ.

PIN ONE I.D.

123

2.54 typ.

1.27 ± 0.10

0.90 min.

8.60 ± 0.10

9.00 max.

1.52

11.05

8.00 min.

R0.25

Leads coplanarity

0.1 max.

10.30 max.

6.60 ± 0.25

7.62 typ.

0.50 min.

8.00 min.

PIN ONE I.D.

2.54 typ.

1.27 ± 0.10

0.70 min.

9.75 ± 0.15

10.20 max.
