IL30, ILD55, ILQ30, ILQ31, ILQ55

www.vishay.com

Vishay Semiconductors

Rev. 1.8, 28-Jul-14

Document Number: 83621

For technical questions, contact: optocoupleranswers@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

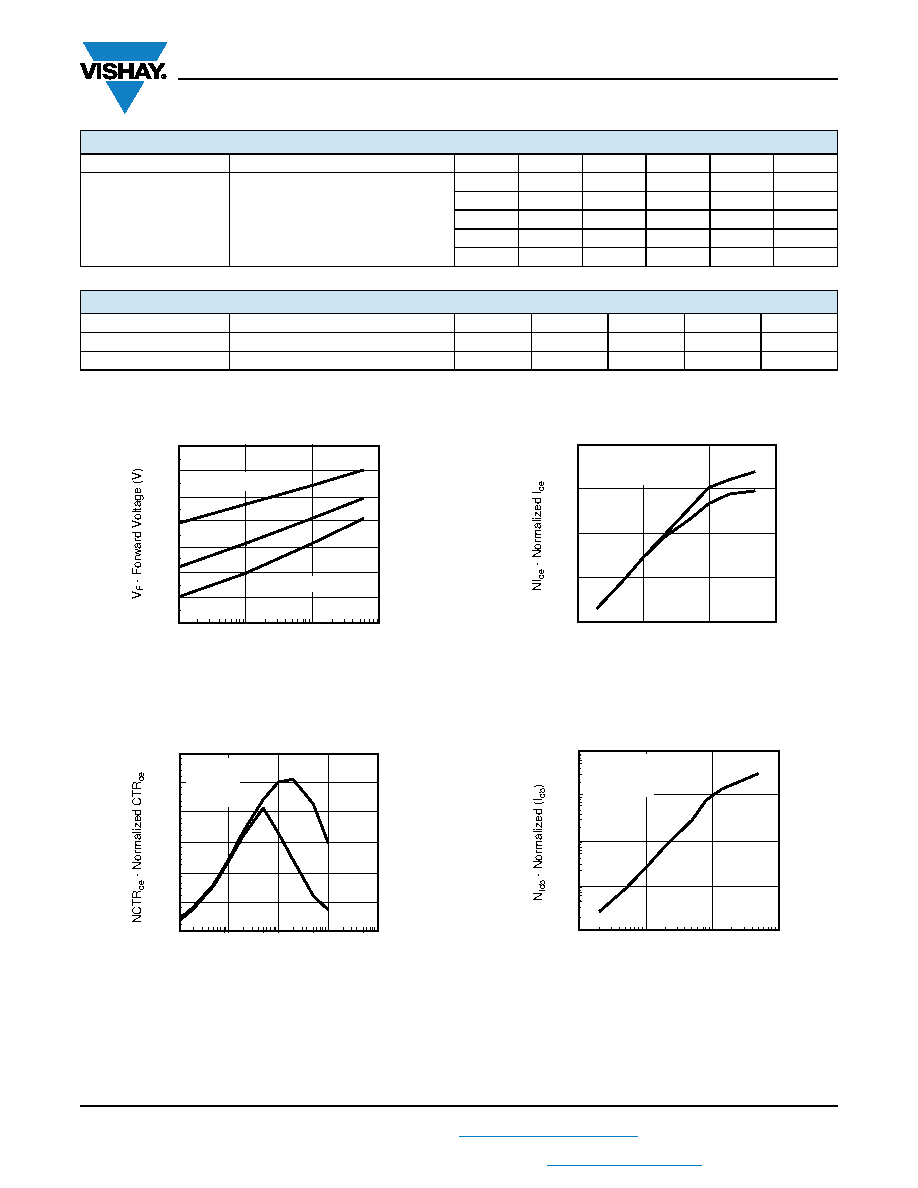

TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)

Fig. 1 - Forward Voltage vs. Forward Current

Fig. 2 - Normalized Non-Saturated and Saturated CTRCE vs.

LED Current

Fig. 3 - Normalized Non-Saturated and Saturated Collector Emitter

Current vs. LED Current

Fig. 4 - Normalized Collector Base Photocurrent vs. LED Current

CURRENT TRANSFER RATIO (Tamb = 25 °C, unless otherwise specified)

PARAMETER

TEST CONDITION

PART

SYMBOL

MIN.

TYP.

MAX.

UNIT

Current transfer ratio

IF = 10 mA, VCE = 5 V

IL30

CTR

100

400

ILD55

CTR

100

400

ILQ30

CTR

100

400

ILQ55

CTR

100

400

ILQ31

CTR

200

400

SWITCHING CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)

PARAMETER

TEST CONDITION

SYMBOL

MIN.

TYP.

MAX.

UNIT

Rise time

VCC = 13.5 V, IF = 50 mA, RL = 100

μs

Fall time

VCC = 13.5 V, IF = 50 mA, RL = 100

μs

iil30_01

IF - Forward Current (mA)

100

0.1

0.7

0.8

0.9

1.0

1.1

1.2

1.3

1.4

Tamb = 25 °C

Tamb = 85 °C

Tamb = -55 °C

iil30_02

0.1

100

1000

0.0

0.2

0.4

0.6

0.8

1.0

1.2

VCE = 1 V

VCE = 5 V

IF - LED Current (mA)

Normalized to:

VCE = 5 V

IF = 10 mA

iil30_03

100

0.1

0.001

0.01

0.1

VCE = 1 V

VCE = 5 V

IF - LED Current (mA)

IF = 10 mA

VCE = 5 V

Normalized to:

iil30_04

0.1

100

0.001

0.01

0.1

IF - LED Current (mA)

Vcb = 3.5 V

IF = 10 mA

Normalized to:
