ADRF5160

Data Sheet

Rev. 0 | Page 10 of 12

TYPICAL APPLICATION CIRCUIT

Generate the evaluation PCB used in the typical application

circuit shown in Figure 17 with proper RF circuit design

techniques. Signal lines at the RF port must have a 50 Ω

impedance, and the package ground leads and backside ground

slug must connect directly to the ground plane. The evaluation

board shown in Figure 16 is available from Analog Devices, Inc.,

upon request.

600-01533-00-2

RFC

GND

VDD

VCTL

1

2

3

4

J3

J2

J1

R1

TP2

TP1

TP3

C2

C3

C1

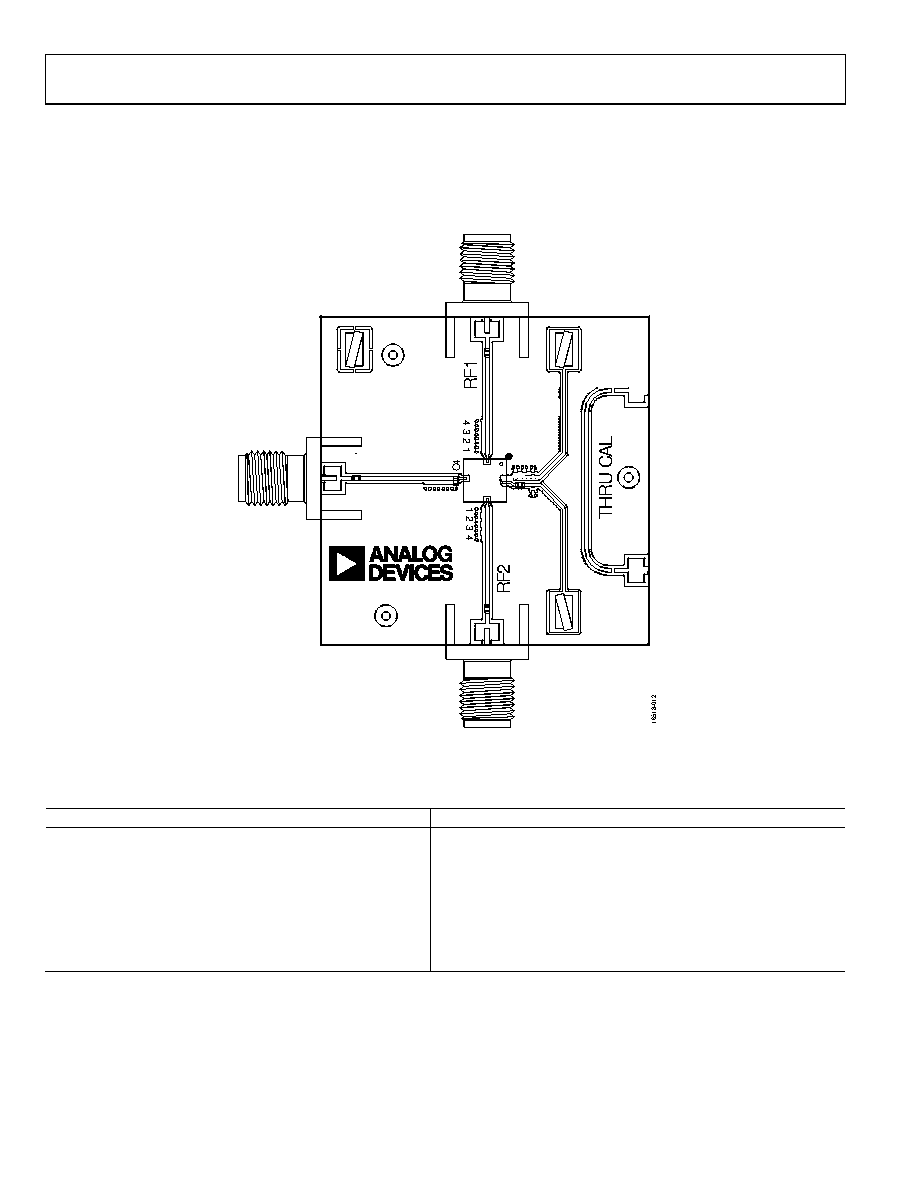

Figure 16. ADRF5160-EVALZ Evaluation Board Component Placement

Table 6. Bill of Materials for the ADRF5160-EVALZ Evaluation Board

Reference Designator

Description

C1 to C3

24 pF, 200 V ultralow, effective series resistance (ESR) capacitors, 0402

package

C4

0.3 pF, 200 V ultralow ESR capacitor, 0402 package

TP1, TP2, TP3

Test point connectors

R1

0 Ω resistor, 0402 package

J1, J2, J3

PCB mount, SubMiniature Version A (SMA) connectors

U1

ADRF5160 SPDT switch

1

The circuit board material is Roger 4350 or Arlon 25FR.

2

Reference to this evaluation board number when ordering the complete evaluation board.
