NCP2809 Series
http://onsemi.com
13
TYPICAL CHARACTERISTICS

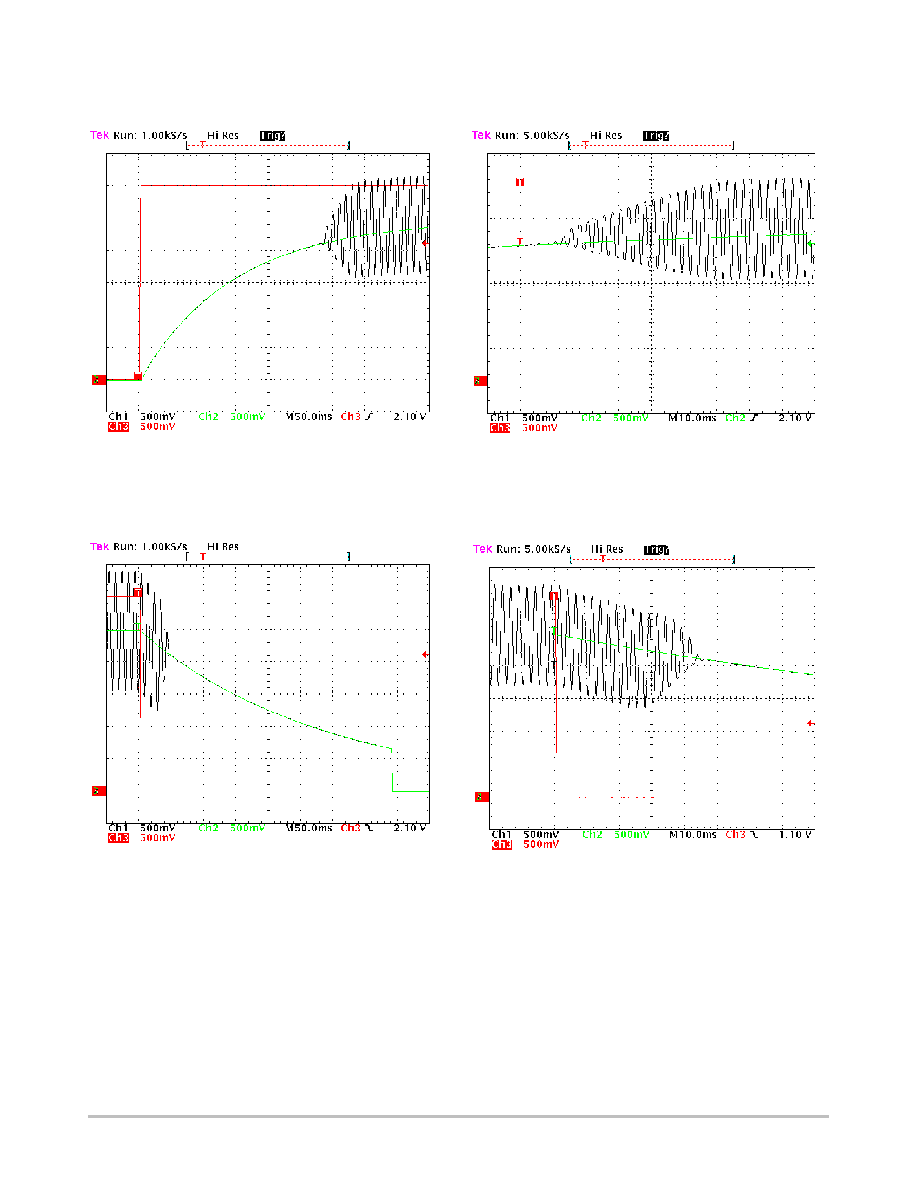

Figure 38. Turning–On Time/Vp = 5.0 V
and F = 100 Hz
Ch1 = OUT_R, Ch2 = VMC and Ch3 = Shutdown
Figure 39. Turning–On Time Zoom/Vp = 5.0 V
and F = 400 Hz
Ch1 = OUT_R, Ch2 = VMC and Ch3 = Shutdown
Figure 40. Turning–Off Time/Vp = 5.0 V
and F = 100 Hz
Ch1 = OUT_R, Ch2 = VMC and Ch3 = Shutdown
Figure 41. TurningOff Time Zoom/Vp = 5.0 V
and F = 400 Hz
Ch1 = OUT_R, Ch2 = VMC and Ch3 = Shutdown
