w w w. g e e h y. c o m
P a g e 61
6.3

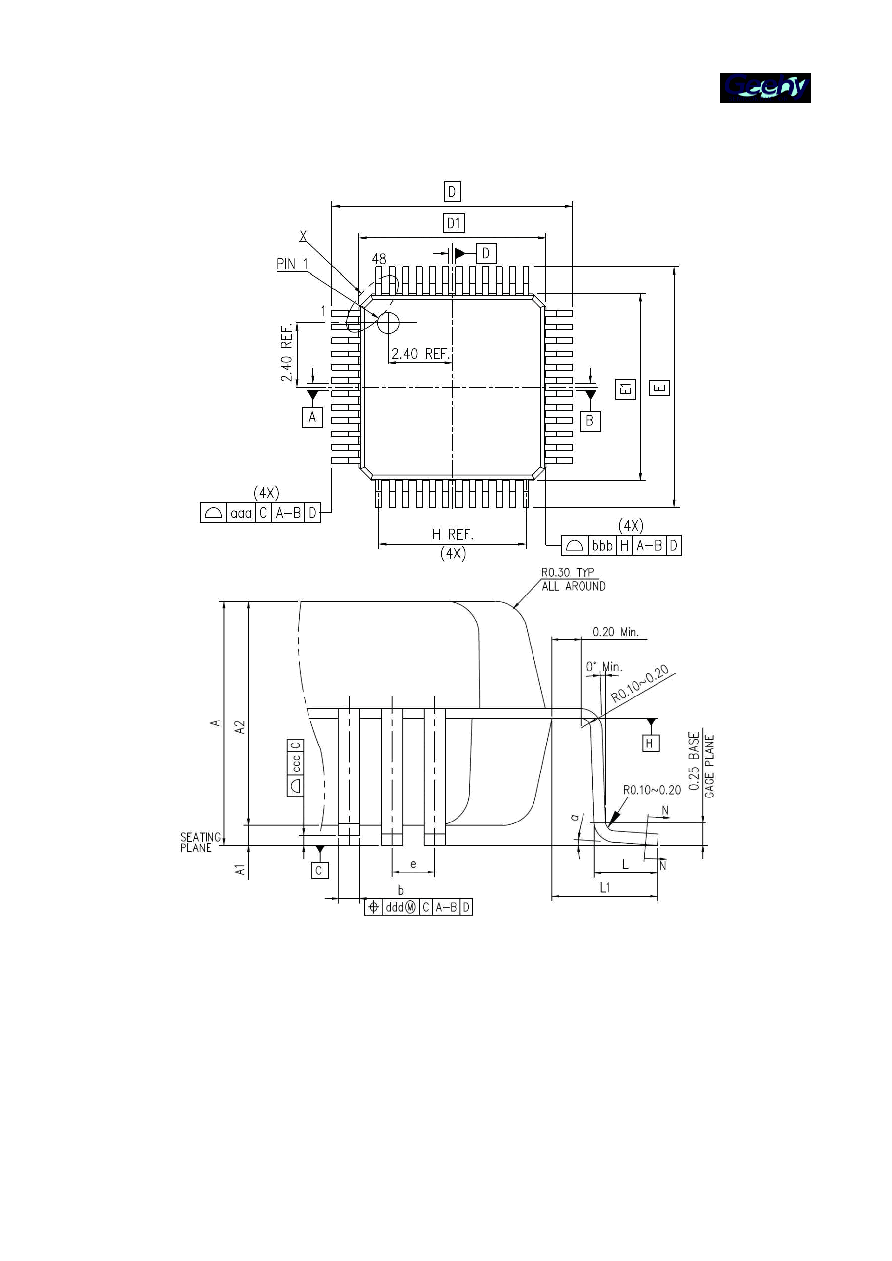

LQFP48 Package Diagram
Figure 26 LQFP48 Package Diagram
1.
The figure is not drawn to scale.
2.
The back pad inside is not connected to VSS or VDD.
3.
There is a pad at the bottom of the LQFP package, which should be welded on the PCB.
4.
All pins should be soldered to the PCB.
