6.4

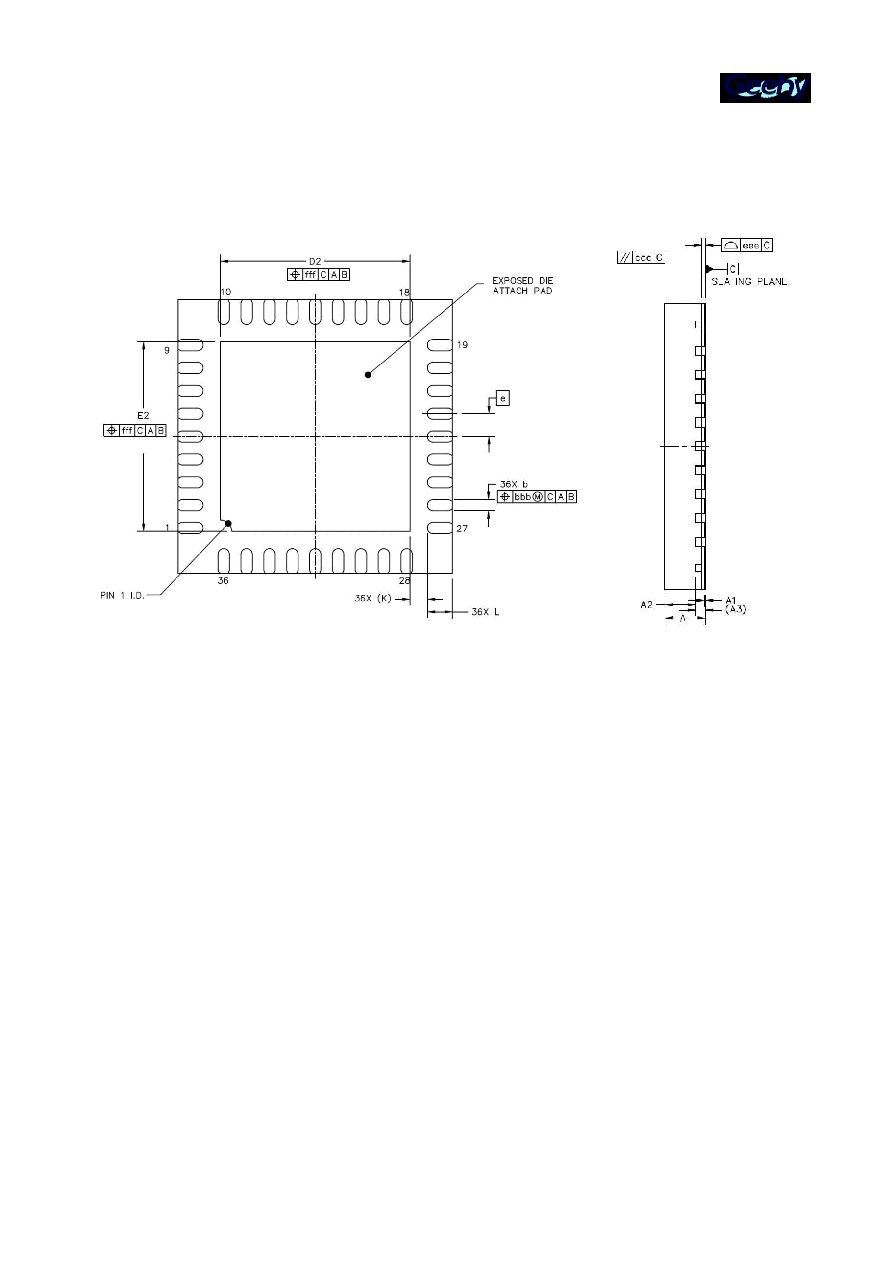

QFN36 Package Diagram
Figure 29 QFN36 Package Diagram
1.
The figure is not drawn to scale.
2.
The back pad inside is not connected to VSS or VDD.
3.
There is a pad at the bottom of the QFN package, which should be welded on the PCB.
4.
All pins should be soldered to the PCB.
