SSM2804CBZ-R7 Arkusz danych(PDF) 3 Page - Analog Devices

Numer części SSM2804CBZ-R7
Szczegółowy opis  Audio Subsystem with Class-D Speaker
PDF  36 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Producent  AD [Analog Devices]
Strona internetowa  http://www.analog.com
Logo AD - Analog Devices

SSM2804CBZ-R7 Arkusz danych(HTML) 3 Page - Analog Devices

  SSM2804CBZ-R7 Datasheet HTML 1Page - Analog Devices SSM2804CBZ-R7 Datasheet HTML 2Page - Analog Devices SSM2804CBZ-R7 Datasheet HTML 3Page - Analog Devices SSM2804CBZ-R7 Datasheet HTML 4Page - Analog Devices SSM2804CBZ-R7 Datasheet HTML 5Page - Analog Devices SSM2804CBZ-R7 Datasheet HTML 6Page - Analog Devices SSM2804CBZ-R7 Datasheet HTML 7Page - Analog Devices SSM2804CBZ-R7 Datasheet HTML 8Page - Analog Devices SSM2804CBZ-R7 Datasheet HTML 9Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 3 / 36 page
background image
SSM2804
Rev. 0 | Page 3 of 36

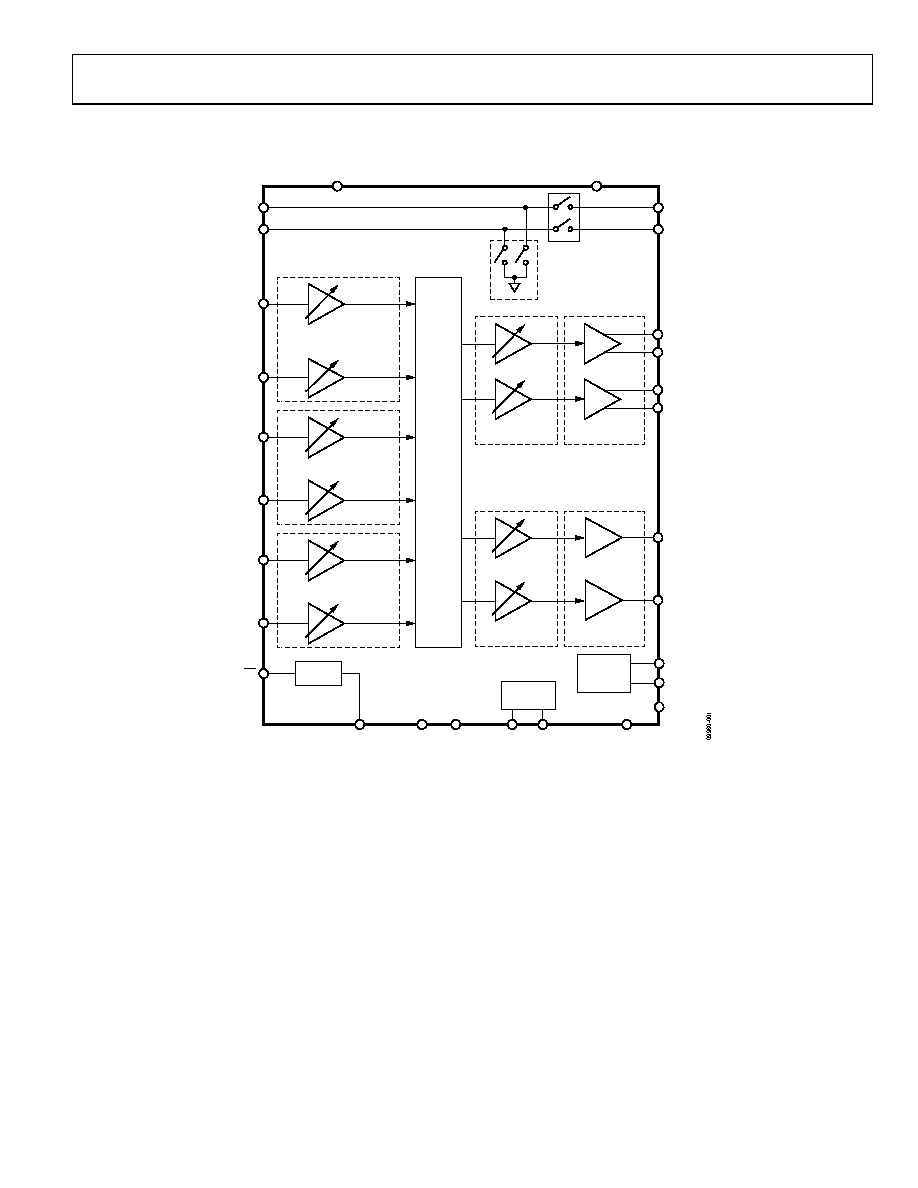

FUNCTIONAL BLOCK DIAGRAM
EP–
EP+
LSPK+
HPL
LSPK–
RSPK+
RSPK–
HPR
BOOST = 0dB TO +20dB
PGA = –12dB TO +18dB
+12dB TO –63dB
31 STEPS
CLASS-D
CLASS-G
0dB TO –75dB
32 STEPS
INA2
RCV–
RCV+
INA1
BOOST = 0dB TO +20dB
PGA = –12dB TO +18dB
INB2
INB1
MIX/MUX
BOOST = 0dB TO +20dB
PGA = –12dB TO +18dB
INC2
INC1
SD
BIAS
I2C
CLASS-G
SUPPLY
BIAS
AGND
PVDD
AVDD
SSM2804
CF1
CF2
CPVDD
PGND
SCL
SDA
CPVSS
Figure 1.
