- 45 -

JANURARY 18, 2013 | DATA SHEET | Rev 3.5

IR3898

6A Highly Integrated SupIRBuck

Single-Input Voltage, Synchronous Buck Regulator

PD-97662

STENCIL DESIGN

 Stencils for PQFN can be used with thicknesses

of 0.100-0.250mm (0.004-0.010"). Stencils thinner

than 0.100mm are unsuitable because they

deposit insufficient solder paste to make good

solder joints with the ground pad; high reductions

sometimes create similar problems. Stencils in

the range of 0.125mm-0.200mm (0.005-0.008"),

with suitable reductions, give the best results.

 Evaluations have shown that the best overall

performance is achieved using the stencil design

shown in following figure. This design is for

a stencil thickness of 0.127mm (0.005").

The reduction should be adjusted for stencils

of other thicknesses.

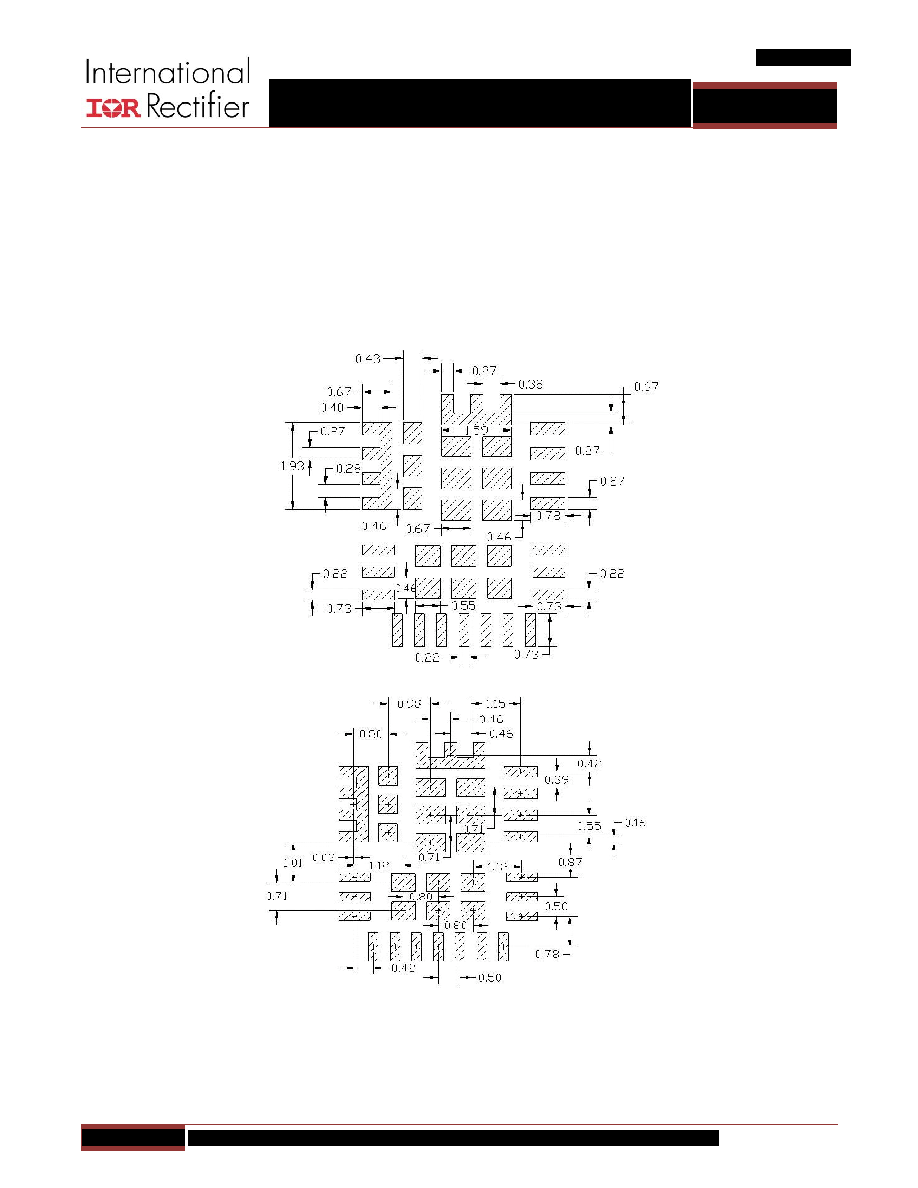

Figure 52: Stencil Pad Spacing (all dimensions in mm)

* Contact International Rectifier to receive an electronic PCB Library file in your preferred format
