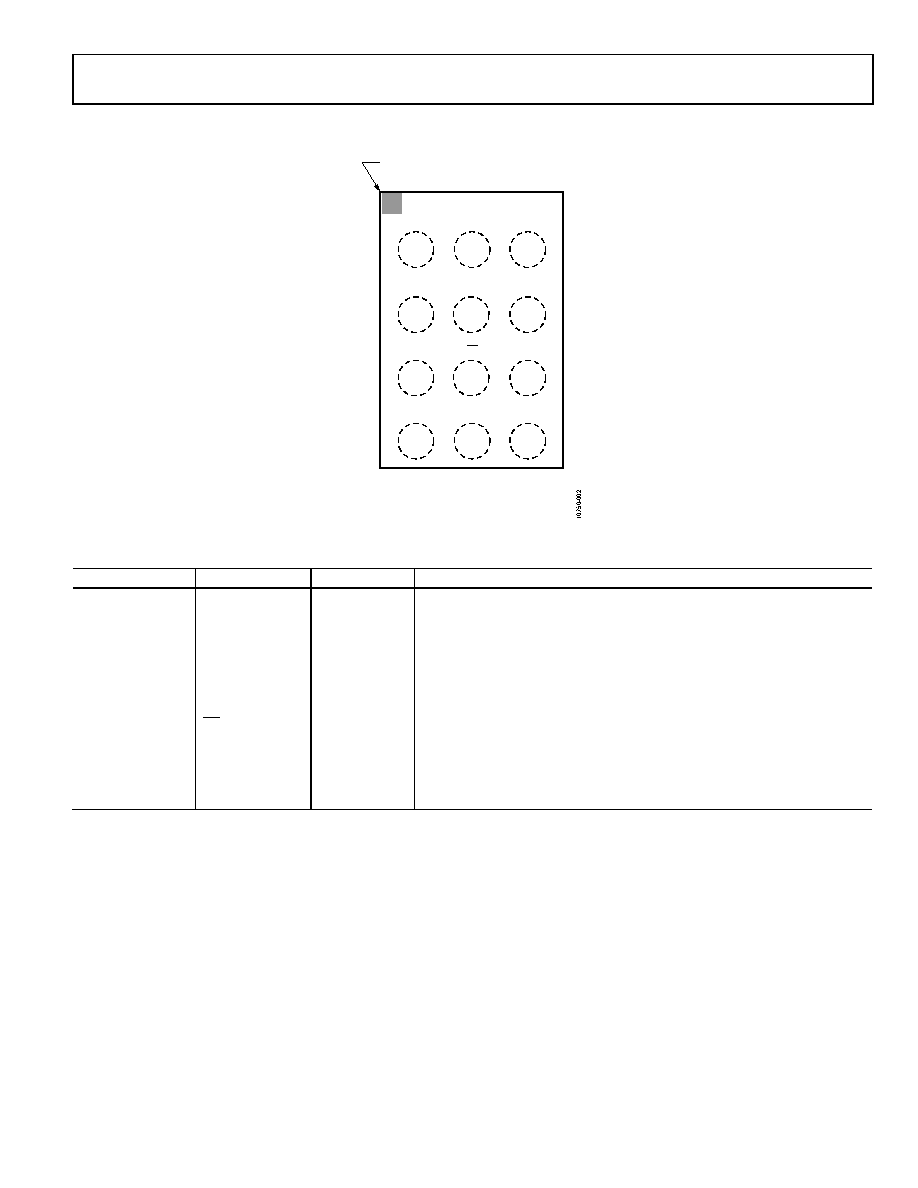

7 / 28 page ![]() Data Sheet SSM2519 Rev. 0 | Page 7 of 28 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS Figure 4. Pin Configuration—Top View Table 7. Pin Function Descriptions Ball Number Pin Name Function1 Description A1 OUT+ O Amplifier Output Positive A2 OUT− O Amplifier Output Negative A3 MCLK I Serial Audio Interface Master Clock B1 PVDD P 2.5 V to 5.5 V Amplifier Power B2 VDD P 1.5 V to 3.6 V Digital and Analog Power B3 BCLK I I2S Bit Clock/Generated BCLK Rate Select C1 GND P Ground C2 SD I Power-Down Control—Active Low C3 LRCLK I I2S Left/Right Frame Clock D1 LR_FORMAT/SCL I Left/Right Channel Selection and Serial Format Selection/I2C Clock D2 GAIN/SDA I/O Digital and Analog Gain Selection/I2C Serial Data D3 SDATA I I2S Serial Data 1 I = input, O = output, P = power. SSM2519 TOP VIEW (BALL SIDE DOWN) Not to Scale OUT+ OUT– MCLK PVDD VDD BCLK GND SD LRCLK LR_FORMAT/ SCL GAIN/ SDA SDATA 1 A B C D 23 BALL A1 INDICATOR |
|
