SSM2519

Data Sheet

Rev. 0 | Page 24 of 28

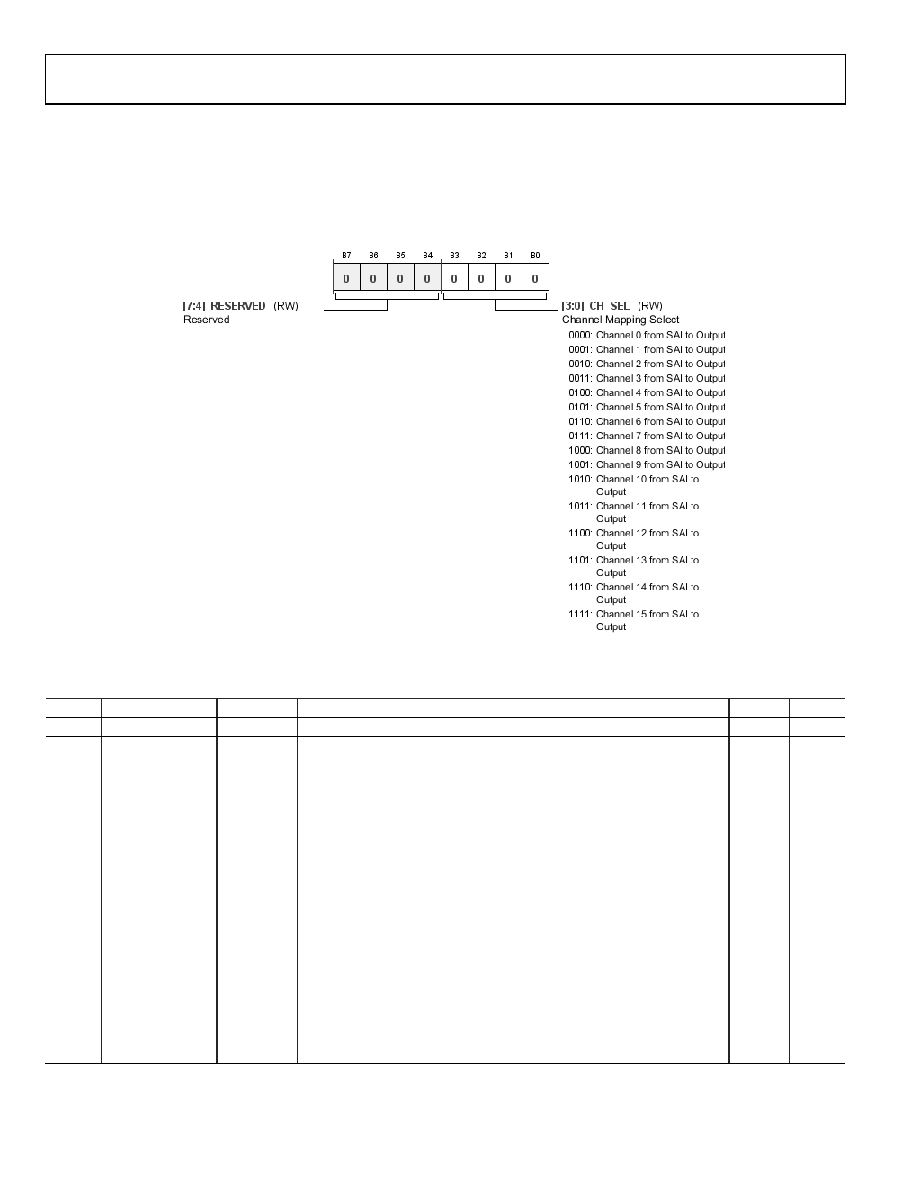

CHANNEL MAPPING CONTROL REGISTER

Address: 0x04, Reset: 0x00, Name: CH_SEL

Note that not all the settings of CH_SEL are available in all

serial interface modes. For example, in stereo and TDM2

modes, only Setting 0000 (Channel 0) and Setting 0001

(Channel 1) are valid because these modes can only contain two

channels. In TDM4, Setting 0000 to Setting 0011 are supported.

In TDM8, Setting 0000 to Setting 0111 are supported. In

TDM16, Setting 0000 to Setting 1111 are supported.

Table 20. Bit Descriptions for CH_SEL

Bits

Bit Name

Settings

Description

Reset

Access

[7:4]

RESERVED

Reserved.

0x0

[3:0]

CH_SEL

Channel mapping select. Select input SDATA channel to map to left

channel output.

0x0

0000

Channel 0 from SAI to output

0001

Channel 1 from SAI to output

0010

Channel 2 from SAI to output

0011

Channel 3 from SAI to output

0100

Channel 4 from SAI to output

0101

Channel 5 from SAI to output

0110

Channel 6 from SAI to output

0111

Channel 7 from SAI to output

1000

Channel 8 from SAI to output

1001

Channel 9 from SAI to output

1010

Channel 10 from SAI to output

1011

Channel 11 from SAI to output

1100

Channel 12 from SAI to output

1101

Channel 13 from SAI to output

1110

Channel 14 from SAI to output

1111

Channel 15 from SAI to output
