Data Sheet
SSM2519
Rev. 0 | Page 21 of 28

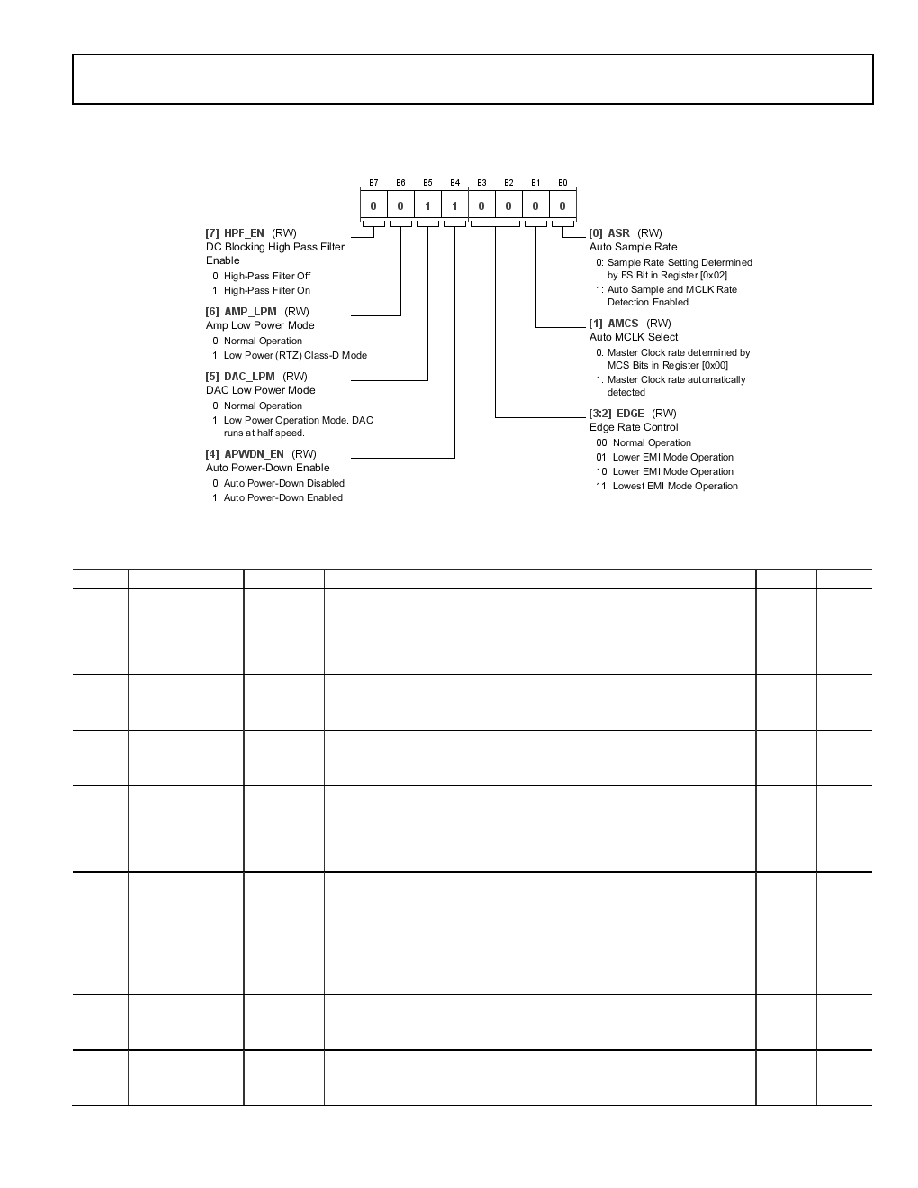

EDGE SPEED, POWER, AND CLOCKING CONTROL REGISTER
Address: 0x01, Reset: 0x30, Name: SYS_CTRL
Table 17. Bit Descriptions for SYS_CTRL
Bits
Bit Name
Settings
Description
Reset
Access
7
HPF_EN
DC blocking high-pass filter enable. The SSM2519 contains a selectable
high-pass filter. The −3 dB frequency is at 6 Hz with a 48 kHz sample rate.
This frequency increases linearly with lower sample rates.
0x0
RW
0
High-pass filter off
1
High-pass filter on
6
AMP_LPM
Amplifier low power mode.
0x0
RW
0
Normal operation
1
Low power (return to zero) Class-D mode
5
DAC_LPM
DAC low power mode.
0x1
RW
0
Normal operation
1
Low power operation mode. DAC runs at half speed.
4
APWDN_EN
Auto power-down enable. Auto power-down automatically puts the IC in
a low power state when 2048 consecutive zero input samples have been
received.
0x1
RW
0
Auto power-down disabled
1
Auto power-down enabled
[3:2]
EDGE
Edge rate control. This controls the edge speed of the power stage. The
low EMI operation mode reduces the edge speed, lowering EMI and
power efficiency.
0x0
RW
00
Normal operation
01
Lower EMI mode operation
10
Lower EMI mode operation
11
Lowest EMI mode operation
1
AMCS
Auto MCLK select.
0x0
RW
0
Master clock rate determined by MCS bits in Register 0x00
1
Master clock rate automatically detected
0
ASR
Autosample rate.
0x0
RW
0
Sample rate setting determined by FS bit in Register 0x02
1
Autosample and MCLK rate detection enabled
