T48C862-R8

4590B–4BMCU–02/03

Combination Mode 3:

Manchester Modulation 1

SSI mode 1:

8-bit shift register internal data output (SO) to the Timer 2

modulator stage

Timer 2 mode 1, 2, 3 or 4:

8-bit compare counter with 4-bit programmable prescaler

Timer 2 output mode 5:

The modulator 2 of Timer 2 modulates the SSI internal

data output to Manchester code

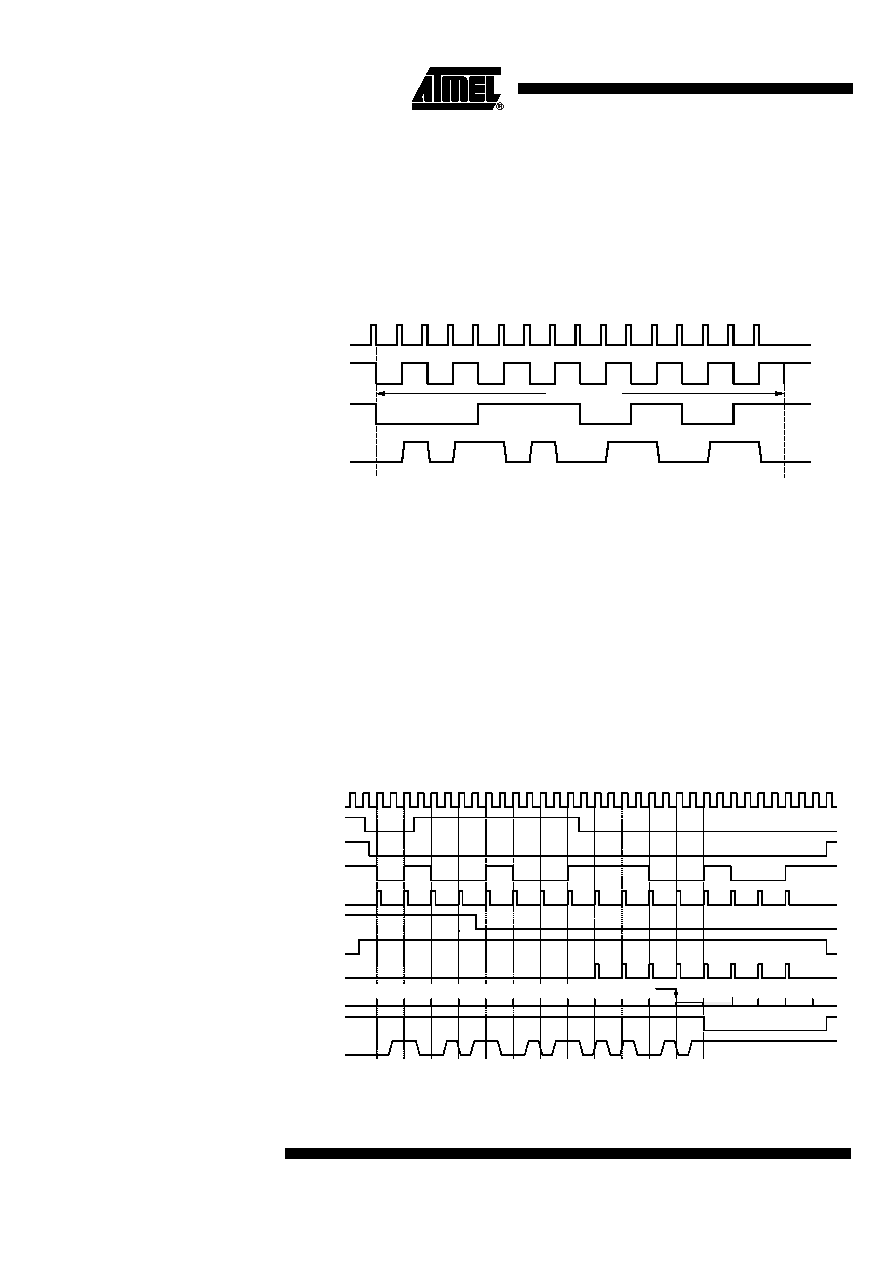

Figure 75. Manchester Modulation 1

Combination Mode 4:

Manchester Modulation 2

SSI mode 1:

8-bit shift register internal data output (SO) to the Timer 2

modulator stage

Timer 2 mode 3:

8-bit compare counter and 4-bit prescaler

Timer 2 output mode 5:

The modulator 2 of Timer 2 modulates the SSI data output

to Manchester code

The 4-bit stage can be used as prescaler for the SSI to generate the stop signal for mod-

ulator 2. The SSI has a special mode to supply the prescaler with the shift clock.

The control output signal (OMSK) of the SSI is used as stop signal for the modulator.

Figure 71 shows an example for a 12-bit Manchester telegram.

Figure 76. Manchester Modulation 2

TOG2

T2O

8-bit SR-data

Bit 7

Bit 0

Bit 7

Bit 0

Data: 00110101

000

012

Counter 2/1 = Compare Register 2/1 (= 4)

Bit 7 Bit 6

Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

SCLI

Buffer full

SIR

MSM

Timer 2

Mode 3

SCL

Counter 2/1

OMSK

T2O
