57 / 107 page

T48C862-R8

4590B–4BMCU–02/03

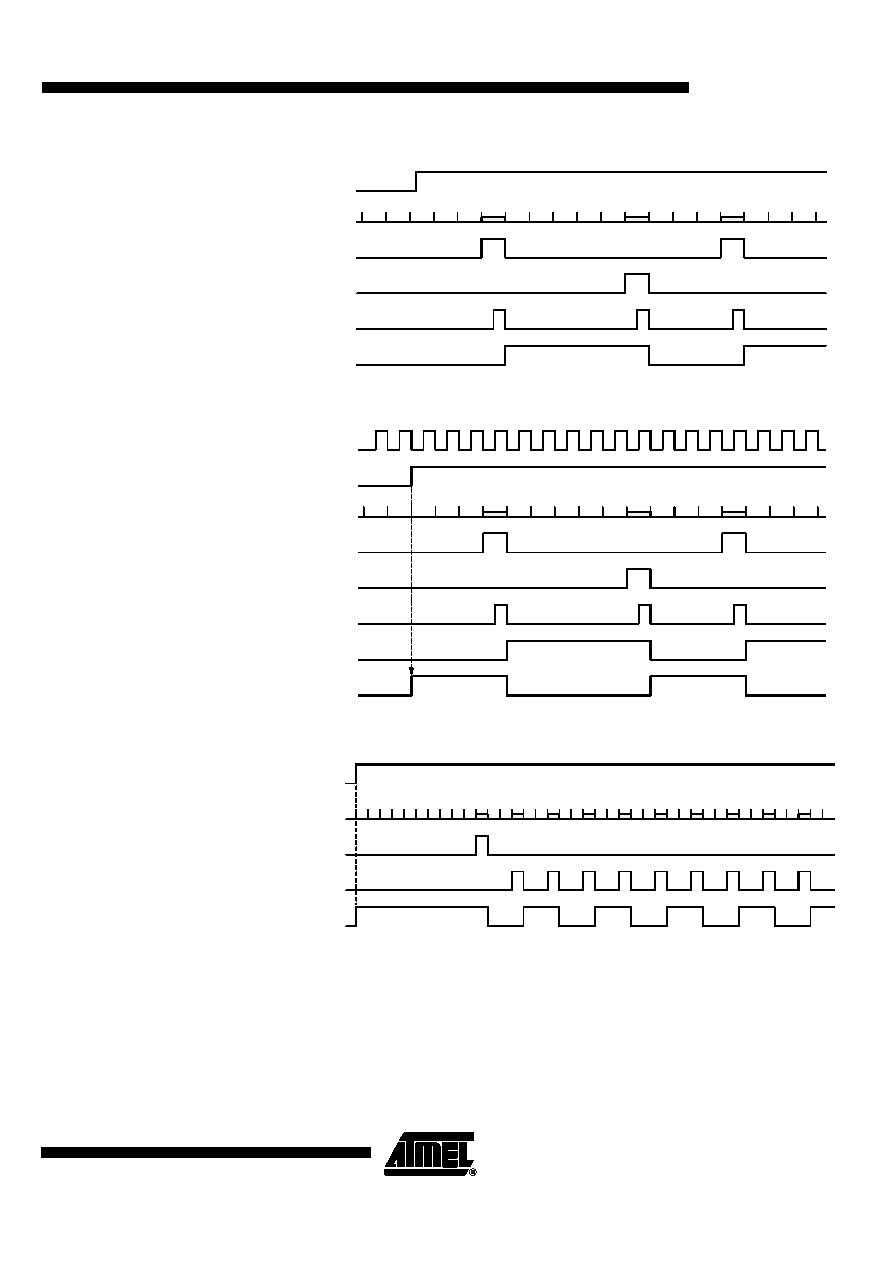

Figure 51. Counter Reset with Each Compare Match

Figure 52. Counter Reset with Compare Register 2 and Toggle with Start

Figure 53. Single Action of Compare Register 1

Timer 3 – Mode 2:

Timer/Counter, External

Trigger Restart and External

Capture (with T3I Input)

The counter is driven by an internal clock source. After starting with T3R, the first edge

from the external input T3I starts the counter. The following edges at T3I load the cur-

rent counter value into the capture register, reset the counter and restart it. The edge

can be selected by the programmable edge decoder of the timer input stage. If single-

action mode is activated for one or both compare registers the trigger signal restarts the

single action.

00012

T3R

Counter 3

CM31

INT5

T3O

CM32

123

567

T3R

Counter 3

CM31

INT5

T3O

Toggle

by start

T3O

CL3

CM32

0 012 345 678 9 10 0 12

Counter 3

CM31

CM32

T3O

0 1 2 01201 2 012 0 120 12 0 1 2 01 2 0 1

Toggle by start

T3R
