HMC1034LP6GE

v01.0312

CLOCK GENERATOR WITH FRACTIONAL-N PLL

& INTEGRATED VCO, 125 - 3000 MHz

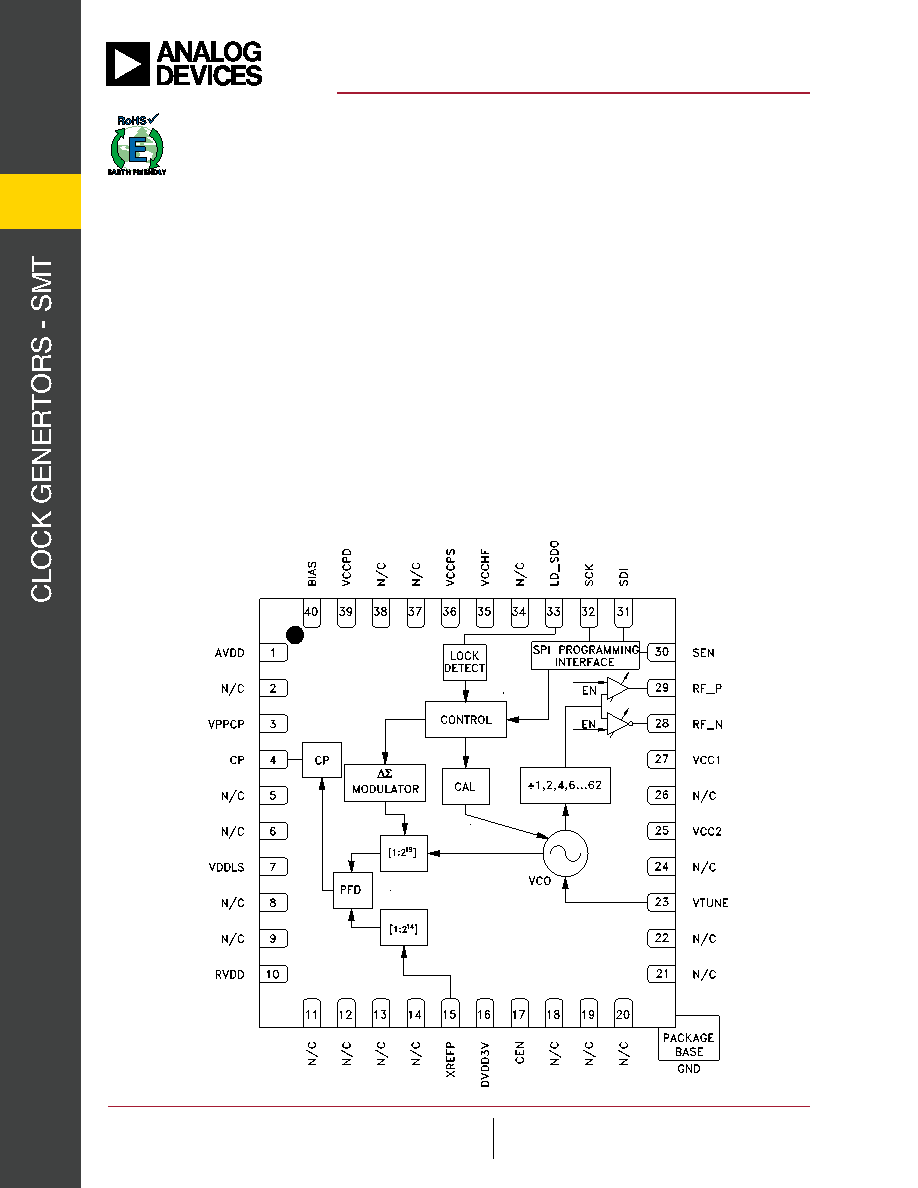

Functional Diagram

Features

Frequency range: 125 - 3000 MHz

78 fs rMs Jitter Generation (typical)

exceeds G.8251 & Gr-253-Core

Jitter speciications

-165 dBc/Hz Phase noise loor

Maximum Phase Detector rate 100 MHz

Figure of Merit (FoM) -227 dBc/Hz

24-Bit step size, resolution 3 Hz typical

exact Frequency Mode

Built-in Digital self test

Typical Applications

• 10G/40G/100G optical Modules, transponders,

line Cards

• otn and sonet/sDH Applications

• 1G/10G ethernet line Cards

• High Frequency Processor Clocks

• low Jitter sAW oscillator replacement

• Fiber Channel Interface Clocks

• Cellular/4G Infrastructure

• DDs replacement

• 10G optical Modules, transponders, line Cards
