ADL5243
Data Sheet
Rev. A | Page 10 of 32

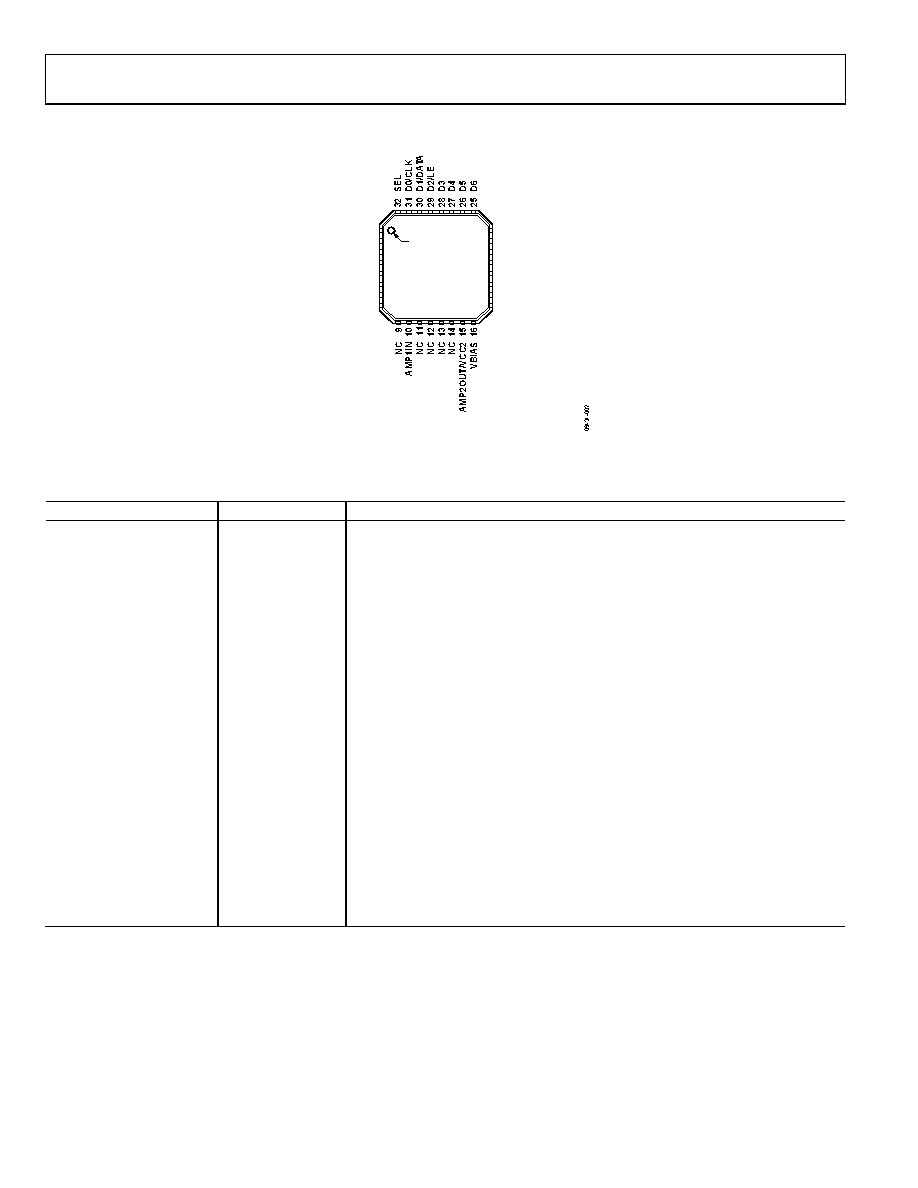

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
NOTES
1. NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
2. THE EXPOSED PAD MUST BE CONNECTED TO GROUND.
PIN 1
INDICATOR
1
VDD
2
NC
3
NC
4
DSAIN
5
NC
6
AMP1OUT/VCC
7
NC
8
NC
24 VDD
23 NC
22 NC
21 DSAOUT
20 NC
19 AMP2IN
18 NC
17 NC
TOP VIEW
(Not to Scale)
ADL5243
Figure 2. Pin Configuration
Table 3. Pin Function Descriptions
Pin No.
Mnemonic
Description
1, 24
VDD
Supply Voltage for DSA. Connect this pin to a 5 V supply.
2, 3, 5, 7, 8, 9, 11, 12, 13, 14,
17, 18, 20, 22, 23
NC
No Connect. Do not connect to this pin.
4
DSAIN
RF Input to DSA.
6
AMP1OUT/VCC
RF Output from Amplifier 1/Supply Voltage for Amplifier 1. Bias to Gain Block
Amplifier 1 is provided through a choke to this pin when connected to VCC.
10
AMP1IN
RF Input to Gain Block Amplifier 1.
15
AMP2OUT/VCC2
RF Output from Amplifier 2/Supply Voltage for Amplifier 2. Bias to Driver Amplifier 2 is
provided through a choke to this pin when connected to VCC2.
16
VBIAS
Bias for Driver Amplifier 2.
19
AMP2IN
RF Input to Amplifier 2.
21
DSAOUT
RF Output from DSA.
25
D6
Data Bit in Parallel Mode (LSB). Connect to supply in serial mode.
26
D5
Data Bit in Parallel Mode. Connect to ground in serial mode.
27
D4
Data Bit in Parallel Mode. Connect to ground in serial mode.
28
D3
Data Bit in Parallel Mode. Connect to ground in serial mode.
29
D2/LE
Data Bit in Parallel Mode/Latch Enable in Serial Mode.
30
D1/DATA
Data Bit in Parallel Mode (MSB)/Data in Serial Mode.
31
D0/CLK
Connect this pin to ground in parallel mode. This pin functions as a clock in serial
mode.
32
SEL
Select Pin. Connect this pin to the supply for parallel mode operation; connect this pin
to ground for serial mode operation.
EPAD
Exposed Paddle. The exposed paddle must be connected to ground.
