ADL5243 LOOP PERFORMANCE

The typical configuration of the ADL5243 is to connect in

AMP1-DSA-AMP2 mode, as shown in Figure 63. Because

AMP1and DSA are broadband in nature and internally

matched, only an ac-coupling capacitor is required between

them. The AMP2 is externally matched for each frequency band

of operation, and these matching elements should be placed

between the DSA and AMP2 and at the output of AMP2.

Figure 37 to Figure 45 show the performance of the ADL5243

when connected in a loop for the three primary frequency

bands of operation, namely 943 MHz, 2140 MHz, and

2630 MHz.

AMP1

RFIN

ADL5243

AMP2

DSA

IMN

OMN

RFOUT

VCC2

VCC

VDD/SPI

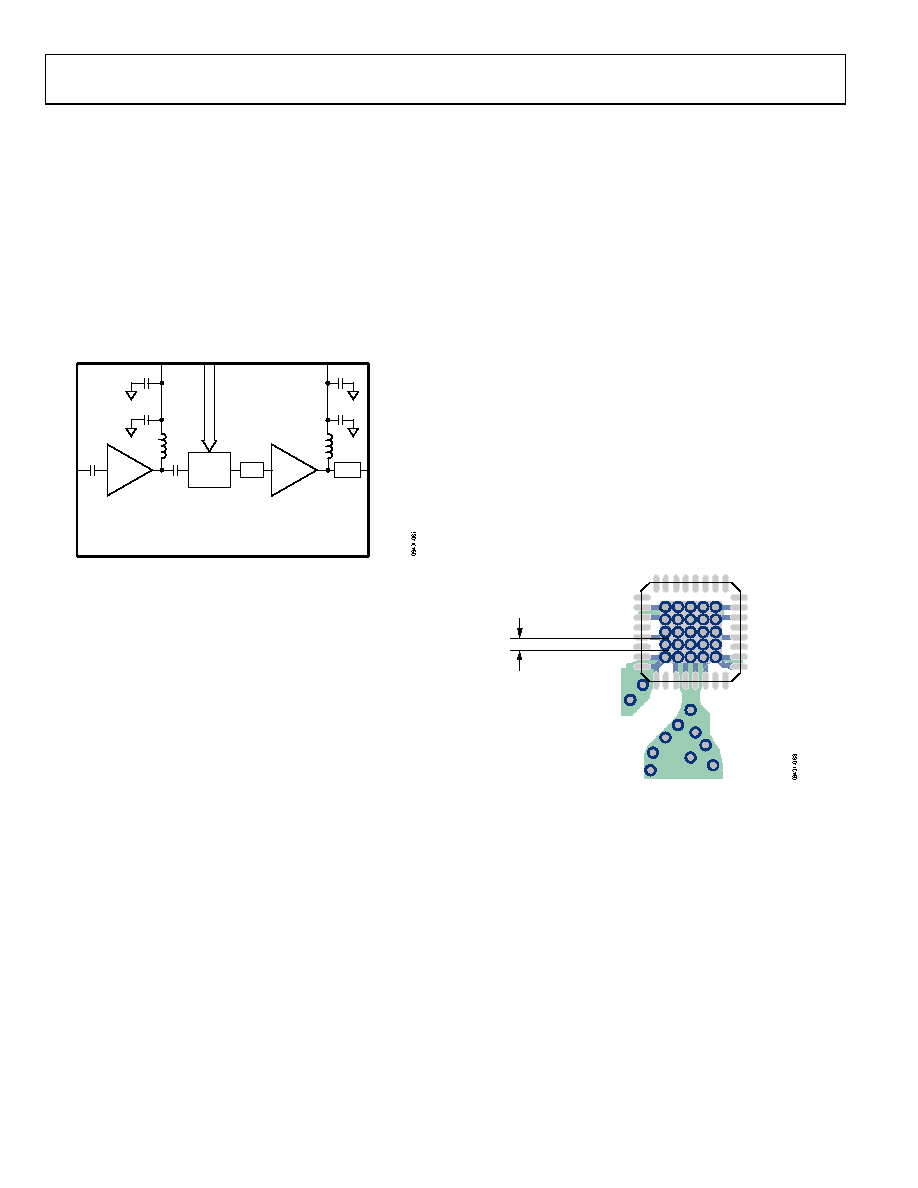

Figure 63. ADL5243 Loop Block Diagram

THERMAL CONSIDERATIONS

The ADL5243 is packaged in a thermally efficient, 5 mm × 5 mm,

32-lead LFCSP. The thermal resistance from junction to air (θJA)

is 34.8°C/W. The thermal resistance for the product was

extracted assuming a standard 4-layer JEDEC board with 25

copper platter thermal vias. The thermal vias are filled with

conductive copper paste, AE3030, with a thermal conductivity

of 7.8 W/mk and thermal expansion as follows: α1 of 4 × 10−5/°C

and α2 of 8.6 × 10−5/°C. The thermal resistance from junction to

case (θJC) is 6.2°C/W, where case is the exposed pad of the lead

frame package.

For the best thermal performance, it is recommended to add as

many thermal vias as possible under the exposed pad of the

LFCSP. The above thermal resistance numbers assume a

minimum of 25 thermal vias arranged in a 5 × 5 array with a via

diameter of 13 mils, via pad of 25 mils, and pitch of 25 mils. The

vias are plated with copper, and the drill hole is filled with a

conductive copper paste. For optimal performance, it is

recommended to fill the thermal vias with a conductive paste of

equivalent thermal conductivity, as mentioned above, or use an

external heat sink to dissipate the heat quickly without affecting

the die junction temperature. It is also recommended to extend

the ground pattern as shown in Figure 64 to improve thermal

efficiency.

SOLDERING INFORMATION AND RECOMMENDED

PCB LAND PATTERN

Figure 64 shows the recommended land pattern for the ADL5243.

To minimize thermal impedance, the exposed paddle on the

5 mm × 5 mm LFCSP package is soldered down to a ground

plane. To improve thermal dissipation, 25 thermal vias are

arranged in a 5 × 5 array under the exposed paddle. If multiple

ground layers exist, they should be tied together using vias. For

more information on land pattern design and layout, see the

AN-772 Application Note, A Design and Manufacturing Guide for

the Lead Frame Chip Scale Package (LFCSP).

DSAIN

DSAOUT

25 MIL VIA PAD

WITH 13 MIL VIA

Figure 64. Recommended Land Pattern
