ADL5243
Data Sheet
Rev. A | Page 12 of 32
0
5
10
15
20
25
30
35
40
50
45
0.925
0.930
0.935
0.940
0.945
0.950
0.955
0.960
0.965
OIP3
P1dB
GAIN
NF
FREQUENCY (GHz)

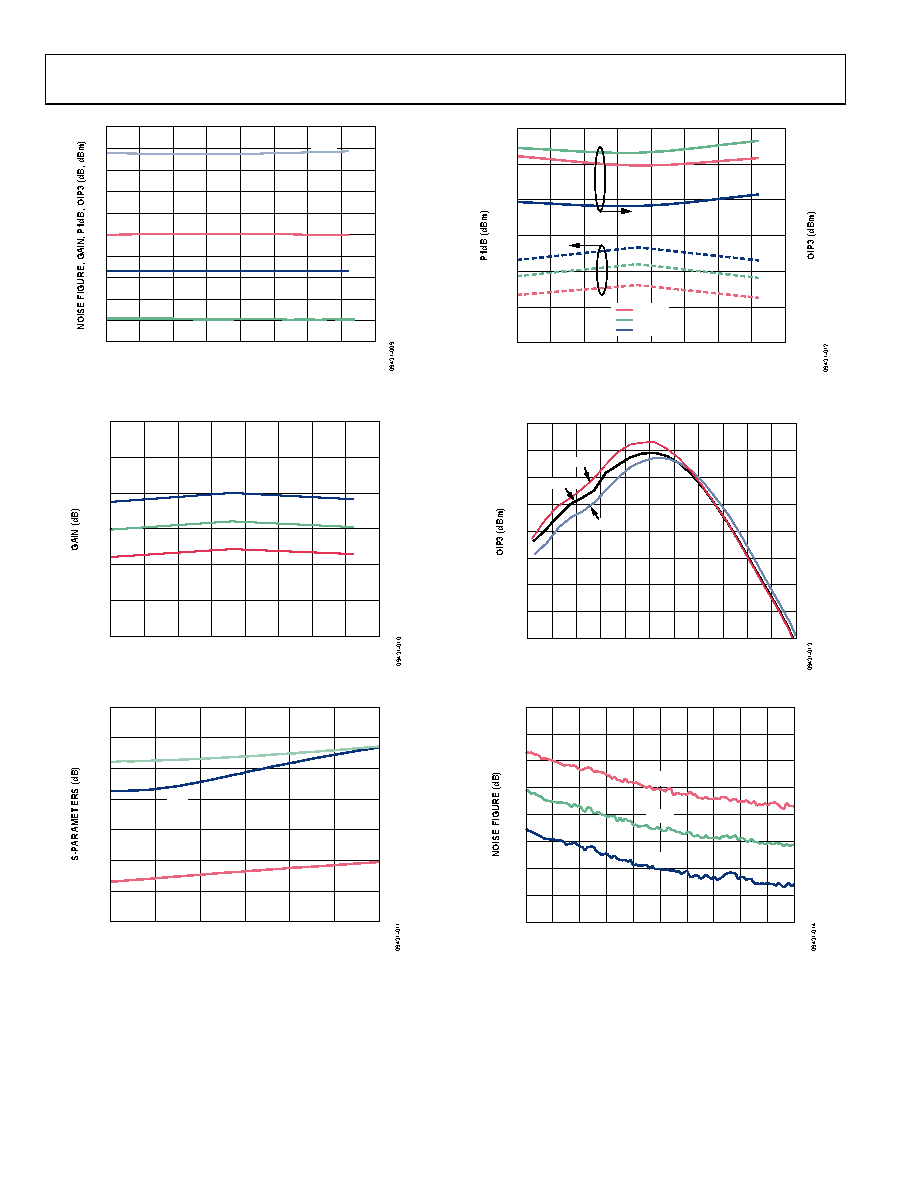

Figure 9. AMP2–943 MHz: Gain, P1dB, OIP3 at POUT = 5 dBm/Tone and Noise
Figure vs. Frequency
FREQUENCY (GHz)
15.0
18.0
17.5
17.0
16.5
16.0
15.5
–40°C
+85°C
FREQUENCY (GHz)
+25°C
0.925
0.930
0.935
0.940
0.945
0.950
0.955
0.960
0.965
Figure 10. AMP2–943 MHz: Gain vs. Frequency and Temperature
–35
–30
–25
–20
–15
–10
–5
0
FREQUENCY (GHz)
0.80
0.85
0.90
0.95
1.00
1.05
1.10
S12
S11
S22
Figure 11. AMP2–943 MHz: Input Return Loss (S11), Output Return Loss (S22,)
and Reverse Isolation (S12) vs. Frequency
24.5
24.0
27.0
26.5
26.0
25.5
25.0
33
45
43
41
39
37
35
FREQUENCY (GHz)
–40°C
+25°C
+85°C
0.925
0.930
0.935
0.940
0.945
0.950
0.955
0.960
0.965
Figure 12. AMP2–943 MHz: OIP3 at POUT = 5 dBm/Tone and P1dB vs.
Frequency and Temperature
38
37
45
44
43
42
41
40
39
–4
18
16
12
10
8
6
4
2
0
–2
POUT PER TONE (dBm)
14
925MHz
943MHz
961MHz
Figure 13. AMP2–943 MHz: OIP3 vs. POUT and Frequency
3.5
4.5
5.0
5.5
6.0
6.5
7.5
7.0
0.80
1.10
1.07
1.04
1.01
0.98
0.95
0.92
0.89
0.86
0.83
FREQUENCY (GHz)
4.0
–40°C
–40°C
+25°C
+85°C
Figure 14. AMP2–943 MHz: Noise Figure vs. Frequency and Temperature
